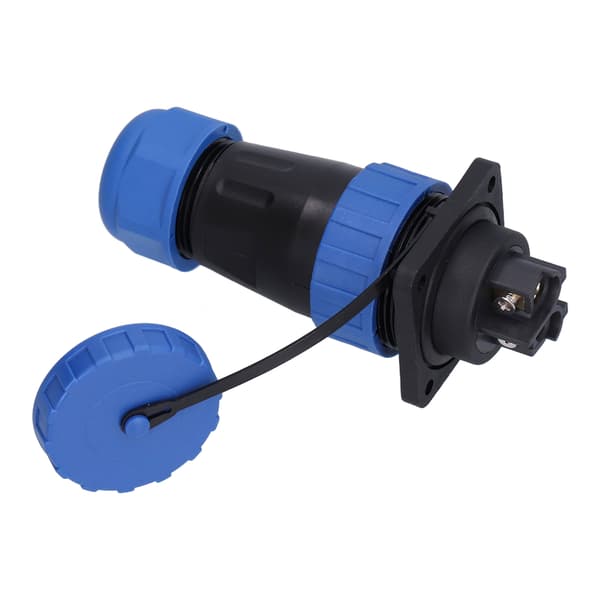

1. Connection: The square 250V 45A 4-hole connector has a 28mm head size, and the press installation can be easily completed with a screwdriver. 2. Durability: Durable for repeated plugging more than 500 times, and the gold-plated solid copper pin is anti-oxidizing and has a long service life. 3. Safe Use: The shell is made of PA66 and PA6 and is reliable with corrosion and temperature, and the silicone casing ensures IP68 waterproof performance. 4. Firm Connection: Soldering can be applied to the cable connection, allowing for a firmer connection and not easy to loosen, perfect for outdoor use. 5. Application: Allows for wide use in communication equipment, instrumentation, computers, program-controlled machines, alarm bridges, and so on.

Item Type: Waterproof Connector
Material: PA66 + PPS + Silicone + Copper
Application: Widely used in communication equipment, instrumentation, computers, program-controlled machines, alarm bridge electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃).
Contact Material: Copper (gold plated).
Connection Method: Soldering (if solder paste is used, it must be cleaned).
Connection Method: Threaded connection.
Head Size: Approx. 28 mm / 1.1 in
Insulation Resistance: 2000MΩ
Copper Needle Diameter: Approx. 3.6 mm / 0.14 in
Copper Pin Applicable Cable: 0.5-4 mm²
Applicable Current: 45A
Applicable Voltage: 250V
Applicable Cables for Shell: Φ10-15mm²
Installation Hole Distance: Approx. 30 x 30 mm / 1.18 x 1.18 in
Plugging Times: More than 500 times.
Operating Temperature Range: -25℃ to 85℃.
Tightness: Complies with IP68.

1 x Male Connector

1 x Female Connector
