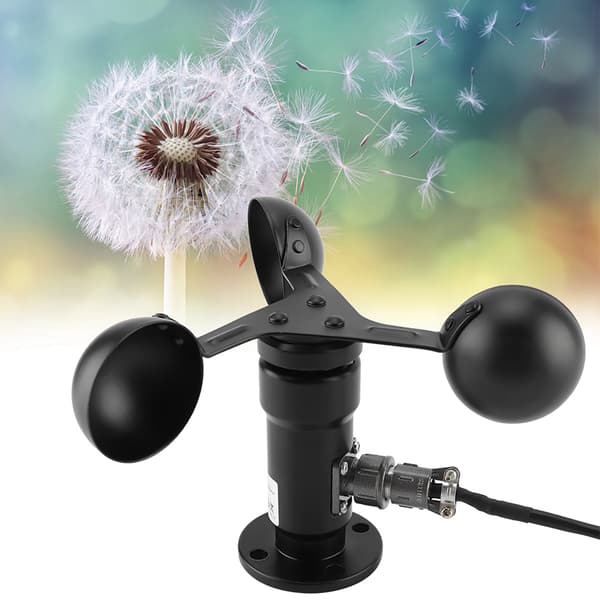

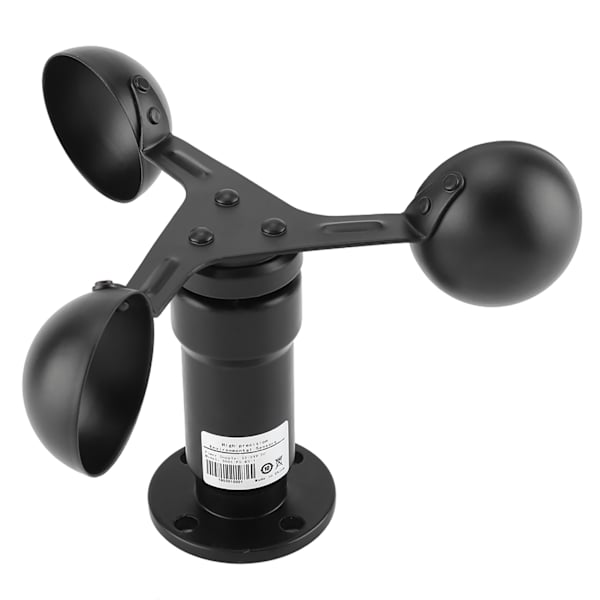

0-5V Aluminum Alloy Wind Speed Sensor Anemometer Three Cups Wind Speed Detector

0-5V Aluminum Alloy Wind Speed Sensor Anemometer Three Cups Wind Speed Detector

Name: 0-5V Aluminum Alloy Wind Speed Sensor Anemometer Three Cups Wind Speed Detector
SKU: YMLD26-0401-191453
Price: 680 SEK
Availability: InStock

680 kr

I lager

Ons, 17 jun - tis, 23 jun

Säker betalning

Nöjd kund-löfte

30 dagars öppet köp

Produktbeskrivning

Welcome to our store!

1. Configuration of high-quality aviation cable connectors, with high-quality anti-corrosion, anti-erosion function, can be used for a long time. 2. Light in weight, which can reduce friction, improve sensitivity, ensure measurement accuracy. 3. Three Cup appearance design, 360 degree wind speed measurement, low power consumption, stable performance, high efficiency. 4. Polycarbonate material, with acid and alkali resistance, oxidation resistance and other characteristics, greatly extended the service life. 5. The surface is treated with electroplating and spraying, which is anti-corrosion and anti-invasion, and has no rust phenomenon for a long time. 6. Waterproof four-core cable, black shielded cable, waterproof, oil-proof, anti-interference ability, stable signal transmission. 7. With moisture-proof and anti-corrosion aluminum alloy shell, high-precision measurement and wide measuring range, it is a special meteorological measuring tool. 8. It can be widely used in wind speed measurement of power plants, wind speed and direction measurement of meteorological monitoring, wind speed and direction measurement of navigation and aviation, and intelligent wind speed and direction measurement of agriculture.

Condition: 100% Brand New
Item Type: Wind Sensor
Material: Aluminum Alloy, Polycarbonate
Output Voltage: 0-5V
Wind Speed Measurement Range: 0-30m/S
Wind Speed Measurement Accuracy: +1m/S
Response Time: <5s
Baud Rate: 2400/4800/9600
Power Consumption: <1W
Operating Temperature: -30 - 80 ℃
Working Temperature Environment: 0-100%RH (15-95%RH)
Weight: Approx. 518g / 18.3oz
Height: Approx. 12.4cm / 4.9in
Cable Instructions:
Brown: Power supply positive (12-24V)
Black: Power supply negative
Yellow: 485-A
Blue: 485-B

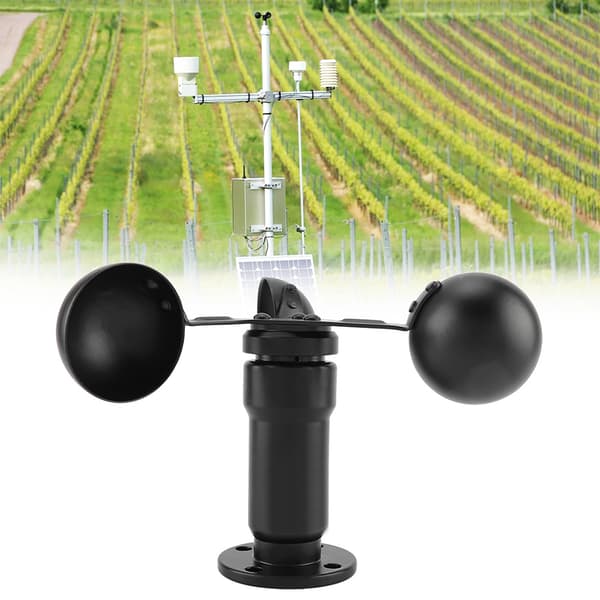

Application: Wind speed measurement of power plants, wind speed and direction measurement of meteorological monitoring, wind speed and direction measurement of navigation and aviation, wind speed and direction measurement of agricultural intelligent wind speed and direction measurement

Installation Method:
1. Make sure the mounting bracket is parallel to the ground;
2. Installation with flange and fixing with bolt on the bracket;
3. Connect the air outlet plug with the air outlet of the sensor through the reserved airway hole.

1 x Wind Sensor

1 x Cable

1 x Bag of Screws
