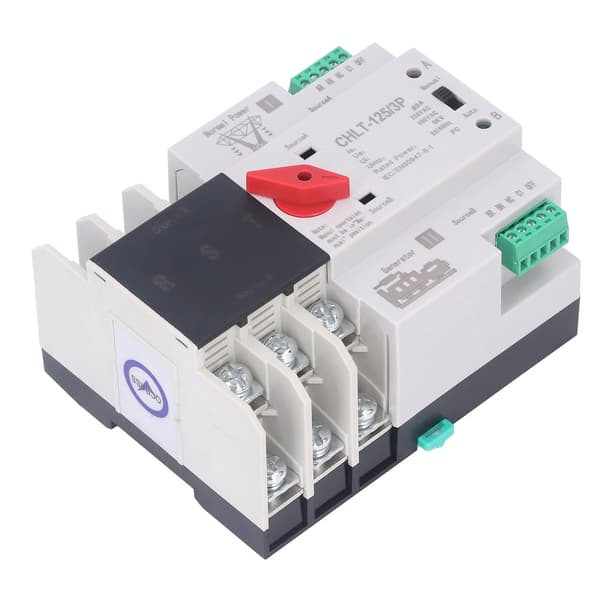

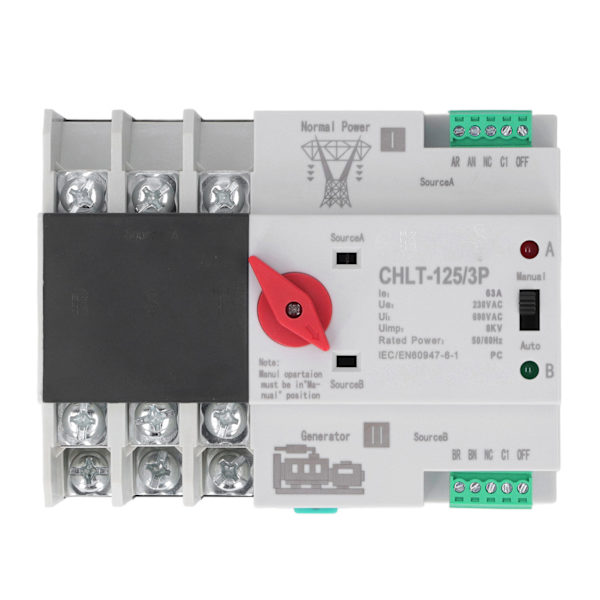

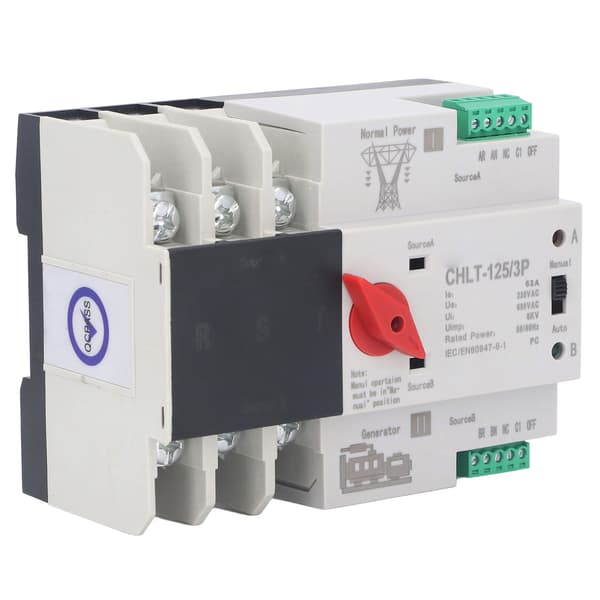

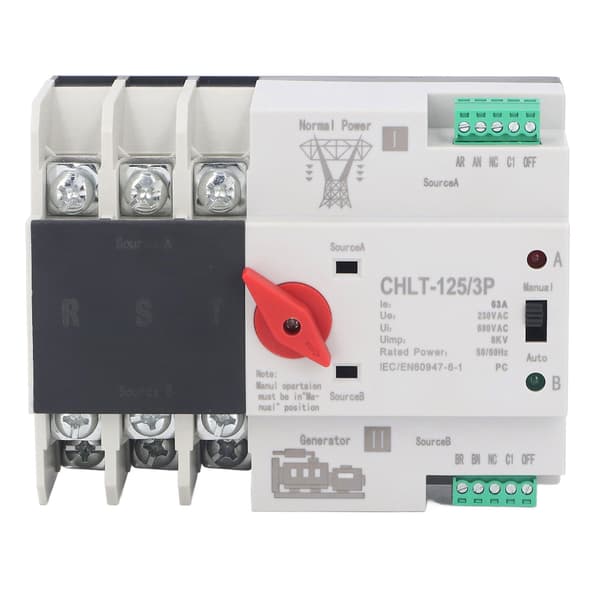

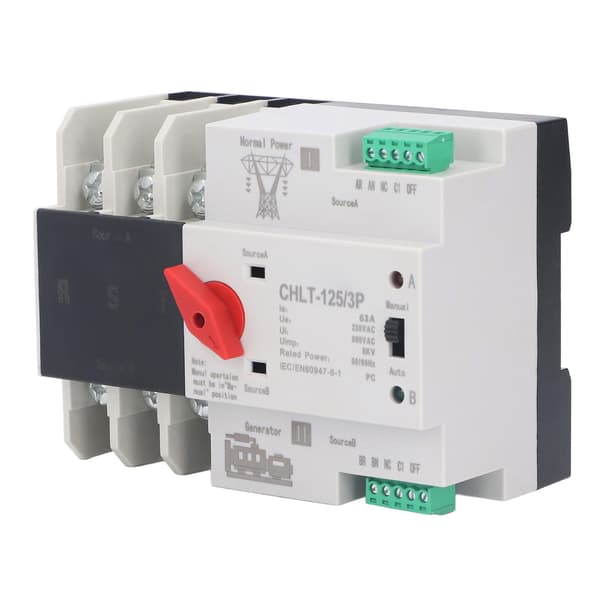

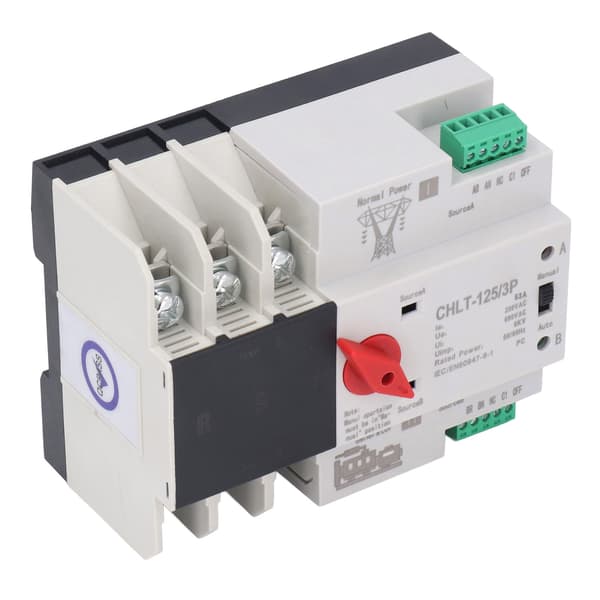

3P Dual Power Automatic Transfer Switch Uninterrupted Flame Retardant Electrical Selector Switch AC to AC 230V 63A

3P Dual Power Automatic Transfer Switch Uninterrupted Flame Retardant Electrical Selector Switch AC to AC 230V 63A

Name: 3P Dual Power Automatic Transfer Switch Uninterrupted Flame Retardant Electrical Selector Switch AC to AC 230V 63A
SKU: YMLD26-0401-156168
Price: 540 SEK
Availability: InStock

540 kr

I lager

Tor, 18 jun - ons, 24 jun

Säker betalning

Nöjd kund-löfte

30 dagars öppet köp

Produktbeskrivning

Welcome to our store!

1. Orbital installation: The automatic dual power switch is a miniature circuit breaker. The switch is mainly used to test whether the main power supply or the backup power supply is normal. This product is specially designed for rail installation and dedicated to the PZ30 power distribution box. 2. Easy maintenance: This automatic dual power switch has a firm structure, easy installation and maintenance, and a long service life. It can be operated manually. 3. PC and Silver Material: This switch uses silver contacts to improve the product's conductivity and lifespan, and uses flame-retardant PC material for good insulation, high temperature resistance, and anti-aging. 4. Instant switching: When there is an anomaly in the normal power supply, the backup power supply operates immediately, switching to the backup power supply during a power outage and to the main power supply upon an incoming call, with millisecond-level switching without power supply, ensuring continuity, reliability, and safety of the power supply. 5. Wide application: This automatic transfer switch is widely used in various places where continuous power outage is not allowed, such as factories, supermarkets, nurseries, etc.

Item Type: Dual Power Automatic Transfer Switch
Model: CHLT 125 3P
Material: PC, silver
Insulation Voltage: AC690V
Rated Voltage: AC400V
Coil Voltage: AC230V
Class: PC class
Specification: 3P
Electrical Life: 2000 times
Mechanical Life: 5000 times
Short-circuit Current: 50kA
Fuse: RT16-00-63A
Rated Impulse Withstand Voltage: 8kV
Control Circuit: Rated control voltage Us, AC220V 85% Us-110% Us
Auxiliary Circuit: 2 relays, each relay has two sets of contact capacity, AC220V50HZ le=5y
Touch Time: <50ms
Operating Conversion Time: <50 ms
Return Time: <50 ms
Closing Time: <50ms

1 x Dual Power Automatic Transfer Switch

1 x User Manual

Customers are our top priority. If you find any problems with your product after receiving it, such as damage or incorrect quantity, please contact us immediately. We strive to provide you with the best after-sales service.
