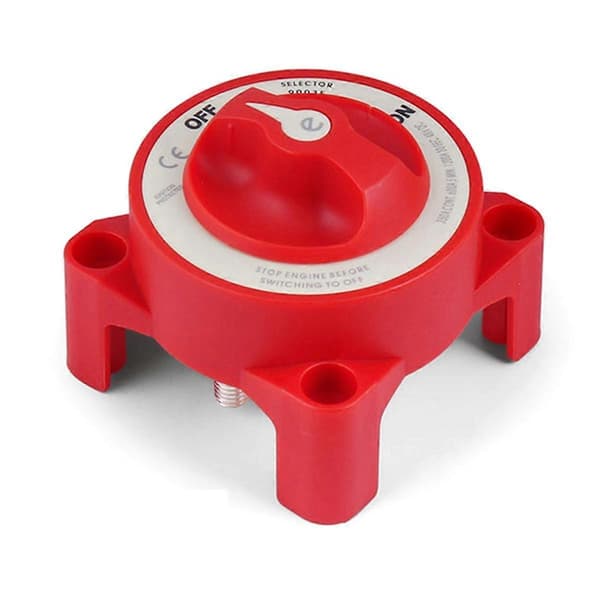

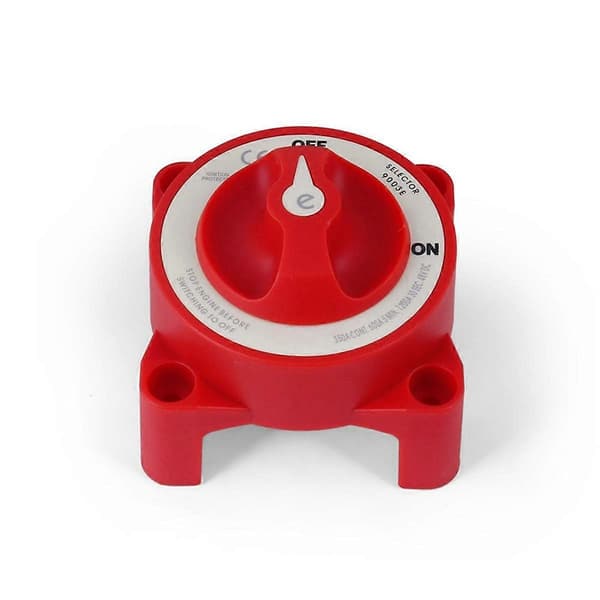

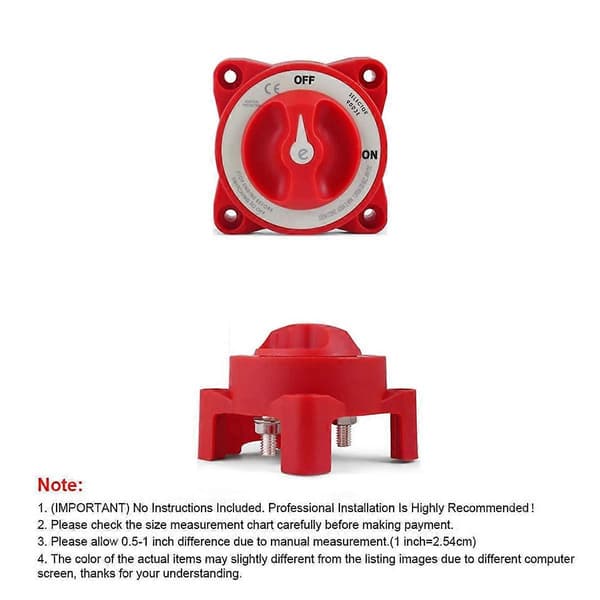

Manual Battery Switch - E-Series

350 Amps continuous rating for gasoline or diesel inboard engines.

Tin-plated copper contacts for maximum conductivity and corrosion resistance

Switch Type: Single Circuit ON-OFF

Switch Positions: 2



Maximum Voltage: 48V DC

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Continuous Rating: 350A

Intermittent Rating: 600A (5 min)

Cranking Rating 30 sec: 1200A

Battery Inputs: 1

Cable Clearance for 4/0 AWG Cables: 1.10 inches (27.94 mm)

Cable Size to Meet Rating: 4/0AWG (120 mm)

Mounting Holes: Accepts 1/4 inch (M6) screw

Stud Material: Tin-plated copper

Terminal Stud Size: 3/8 inch 16 (M10)

Scope of application:

Widely used in cars, boats, yachts, RVs, caravans, trucks, ATVs, UTVs, battery packs.

Tip: The product may be continuously updated. Due to different batches, the actual product may have slight differences or color differences, which does not affect use.

Color: Red

Material: Plastic



Package Contents:

1 x Marine Single Circuit Switch



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
