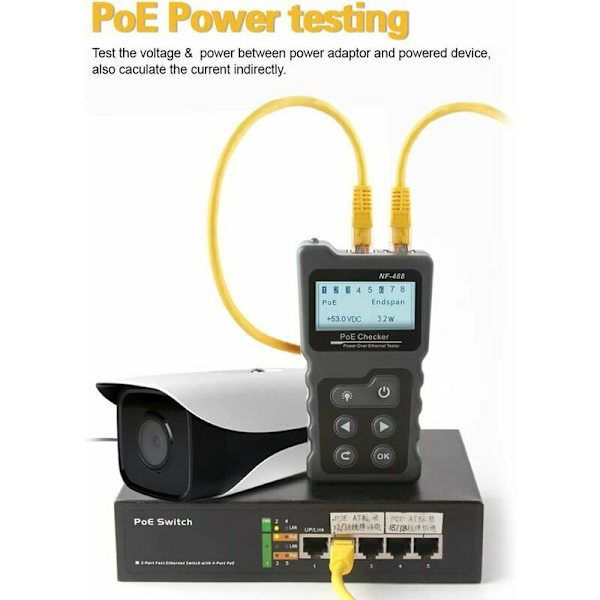

Test standard/non-standard PoE device information such as voltage, polarity, mid-span or end-span.
Identify the PSE type, it is standard or non-standard.
Test the real-time power consumption of PD devices in PoE power systems.
Test open, short, and crossover status in network cable.
Test the power consumption of DC devices.
The loop test function for the switch.
Specifications:
Transmitter Specification:
CONTINUITY FUNCTION:
Cable Types: STP /UTP
Max. Test Object: 600m
Wiremap: Transmitter + Remote, Transmitter + Switch/Router
POE FUNCTION:
Test Range: DC5-60V PoE Switch
Standard Identification: 802.3af/at (standard/non-standard)
Test Range Power: 0-18W

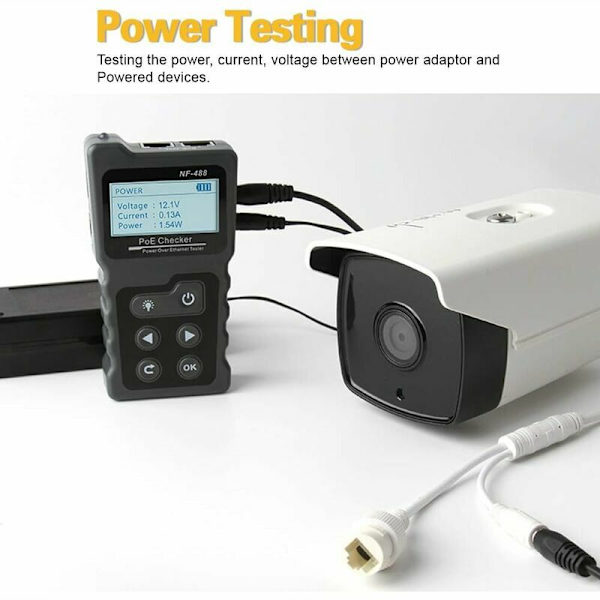

POWER FUNCTION:
Voltage Test Range: DC0-60V
Current Test Range: 0-3A
Power Test Range: 0-180W
Display: 128*64mm LCD, with backlight
Input Voltage Protection: DC48V, 5mA
Maximum Operating Current: ≤80mA
Loopback: Compatible with 10M, 100M, 1000M switches
Power Supply: 3 x 1.5V AAA batteries (not included)
Remote Specification:
Ports: RJ45
Function: Wiremap for network cables
Input Voltage Protection: DC48V, 5mA
