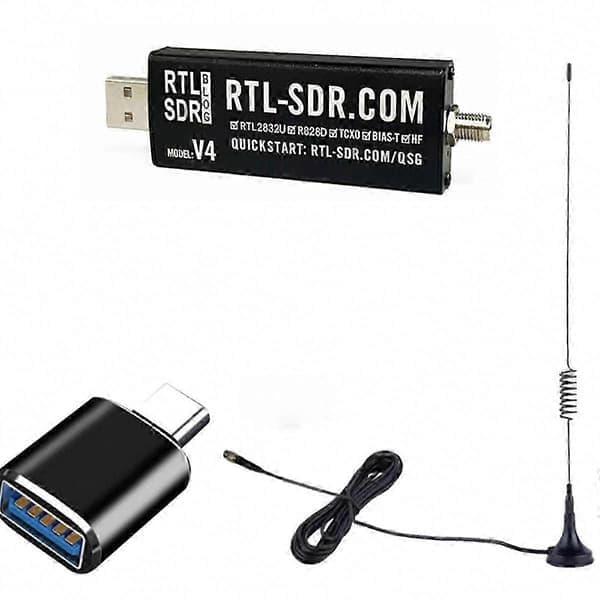

SDR receiver RTL2832U + R820T2 chip 1 PPM TCXO ADS-B 0.1MHz-1.7GHz full-band receiver
Description:
The signal received by the antenna is converted into data by this receiver and sent to the computer, Android phone, and other devices via the USB interface. The software on the computer and Android phone and other devices processes the demodulated signal, displays the frequency spectrum, and arbitrarily sets reception. Bandwidth, signal recording, storage, playback, and other functions.
Receives electromagnetic waves in the range of 100 kHz-1.7 GHz, supports AM, FM (NFM, WFM), CW, , LSB, USB demodulation. Can be used to listen to shortwave single-sideband communication, FM radio, intercom calls, aviation bands, meteor monitoring ADS-B decoding, signal reception, etc.
Feature:
This receiver has a built-in 1 ppm temperature compensation crystal (TCXO). Makes the frequency more stable and accurate.
The almost zero temperature drift (2 ppm initial deviation, 1 ppm temperature drift) increases heat dissipation to the internal chip, making the work more stable.
Uses the latest RTL2832U + R820T2 solution (R820T2 tuner has slightly better sensitivity than R820T, lower background noise, and higher signal-to-noise ratio. Can work more stably at frequencies around 1.5 GHz. )
The Q channel of RTL2832U is used to increase the direct mining reception of the frequency of 100 kHz-24 MHz. Achieved 100 kHz-1.7 GHz full segment reception.
Support for Windows XP/7/8/0, for , for Android and other systems.
Specification:
Type: with antenna
Product size: 71 x 43 x 19 mm/2.80 x 1.69 x 0.75 inches
Product weight: 34 g
Color: silver
material: metal
Package contents:
1 x RTL SDR receiver
1 x Antenna
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The allowed measurement error is +/- 1-3 cm.
