Weight: 200g

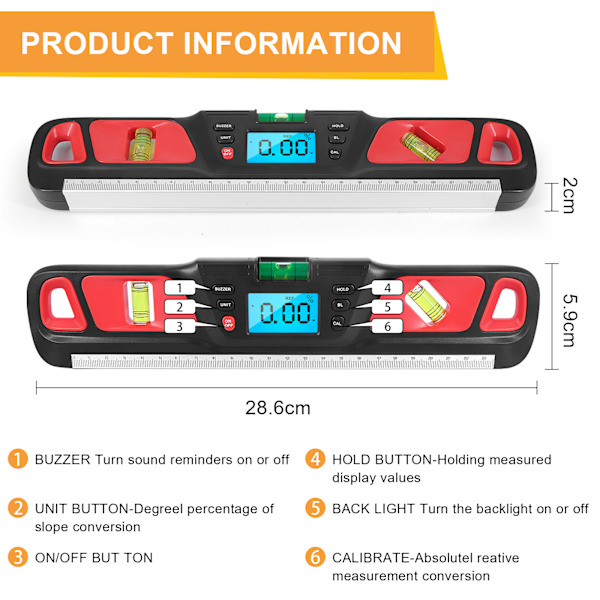

Product Features: 1. LTD backlight
2. Reverse display function
3. Horizontal position calibration
4. Relative measurement REE
5. Display lock HOLD
6. Automatic shutdown

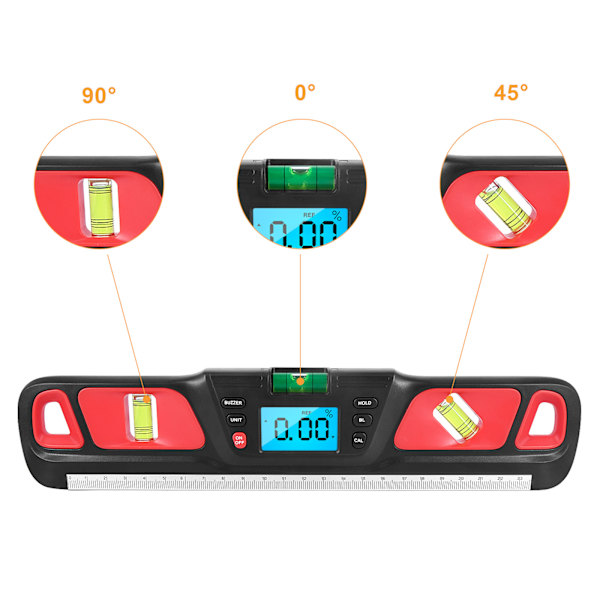

7. 3 modes of tilt switching
8. 0°/90° beep (B, C)
9. Drop protection
10. Electromagnetic protection level 3
11. 2×AAA (not included)
Applications
1. Machine manufacturing: adjustment of horizontal position and inclination of machine tool tables;
2. Construction engineering: detection of slopes on roads and bridges, etc.;
3. Communication installation: base station, satellite, measurement of the elevation angle of TV receiving equipment;

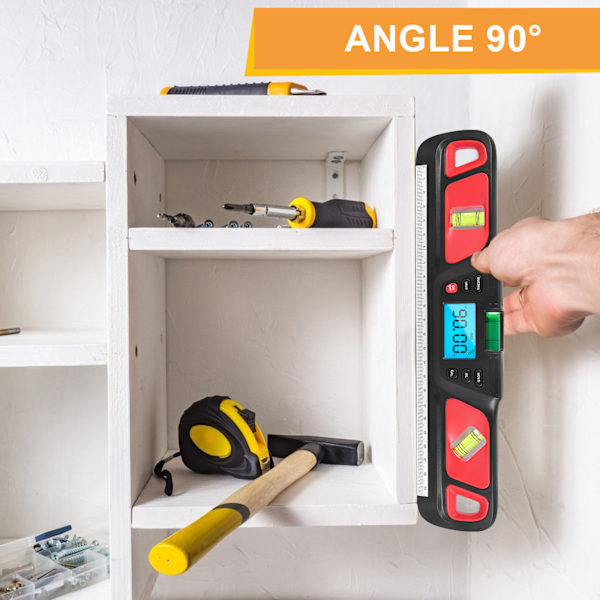

4. Home decoration: plane, measurement of equipment level, measurement of the level of assembled parts;
5. Other: railway, water conservancy, biology, medicine, industrial automation and other various fields that require level measurement.

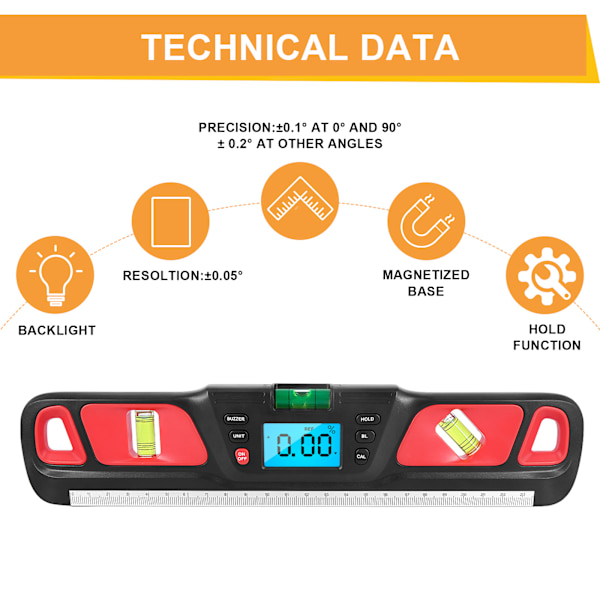

Product Parameters: Model: HW-200
Battery type: 2×AAA No. 7 (delivered without battery)
Packaging type: white box
Measurement range: 4×90°.
Accuracy: ±0.1°
Resolution: 0.05°.
Product size: 286MM×59MM×20MM
List: HW-200×1 Instruction manual×1
