1. Multiple points can be controlled, the control switch can be determined according to the liquid level position

2. With reed switch, no separate power supply required

3. High reliability, easy to install, junction box protection class is above IP-65

4. The material is SUS304 stainless steel, can be used in high temperature and high pressure environments, suitable for different densities, different acids and alkalis, different pressures and temperatures

5. Lightweight, simple working principle and high reliability

6. Suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc.

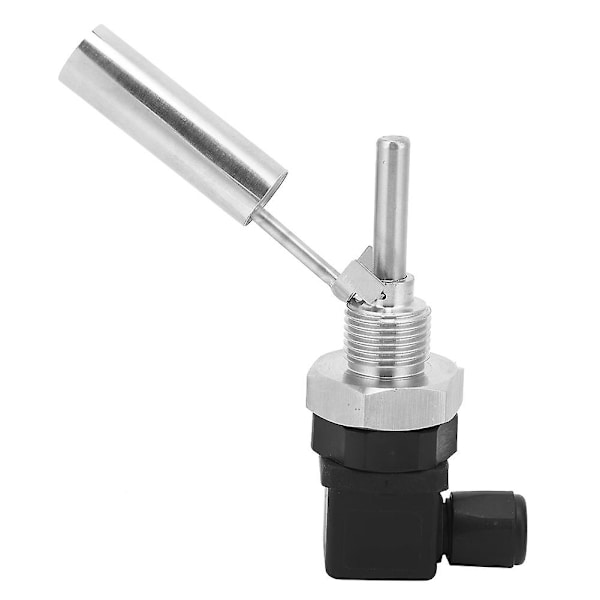

Item Type: Duck Floating Level Sensor\rContact: 10W (low pressure) / 50W (high pressure)\rWorking voltage: 0-220(V)\rWorking current: 0.5-1.5(A)\rMaximum temperature resistance: 120()\rMaximum voltage resistance: 0.2(Mpa)\rMaterial: 304 stainless steel\rThread: G1/2 \"\rSize: Approx. 108 x 17 x 55.5 mm / 4.3 x 0.7 x 2.2 inches\r15 mm / 0.6 inches\r\r\r\rWorking principle:\rThe small floating level sensor, the small liquid level controller and the liquid level sensor mainly consist of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the position of the liquid level.

1 x Duck Floating Level Sensor
