The output of the AO2 sensor changes with temperature, but the thermistor is gradually integrated to compensate for these changes. The thermistor is used to give the AO2 a very stable output over a wide temperature range.

The AO2 PTB-18.10 oxygen sensor used in the oxygen index meter is a consumable. When it comes into contact with air, a chemical reaction starts.

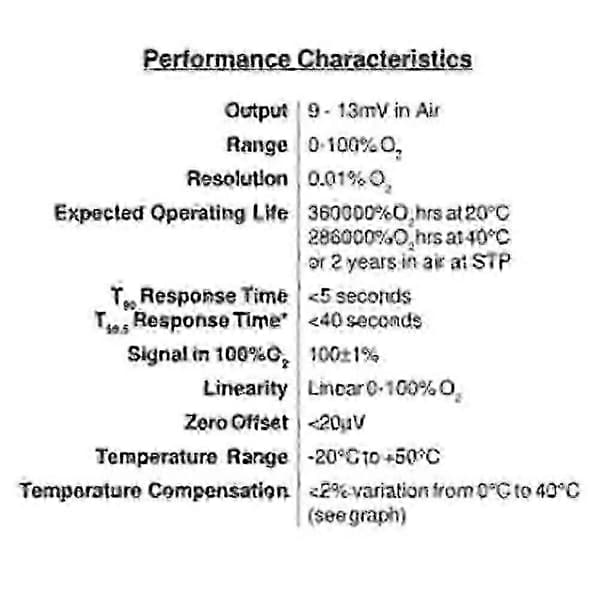

AO2 Product Parameters:

(1) Output: 9-13mV in air

(2) Range: 0-100% O2

(3) Accuracy: 0.01% O2

(4) Expected lifespan: 360,000% O2 hours at 20, 286,000% O2 hours at 40, or two years in air at STP

(5) T90 response time: Less than 5 seconds

(6) T99.5 response time: Less than 40 seconds

(7) 100% oxygen in signal: 1001%

(8) Linearity: 0-100% O2

(9) Zero offset: Less than 20V

(10) Temperature range: -20-+50

(11) Temperature compensation: Less than 2% variation 0 to 40 (as shown)

(12) Differential pressure range: 0-500mbar Max

(13) Absolute pressure range: 500-2000mbar

(14) Relative humidity range: 0-99% non-condensing

(15) Long-term output drift: Less than 10% signal loss/year

(16) Recommended minimum load resistance: 10kohm

Note: Due to different production batches, the appearance of the product may vary slightly, which does not affect its use.

Color: Red

Material: Plastic

Package contents:

1 * Oxygen sensor

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture to be a little different from the real thing. The allowed measurement error is +/- 1-3 cm.
