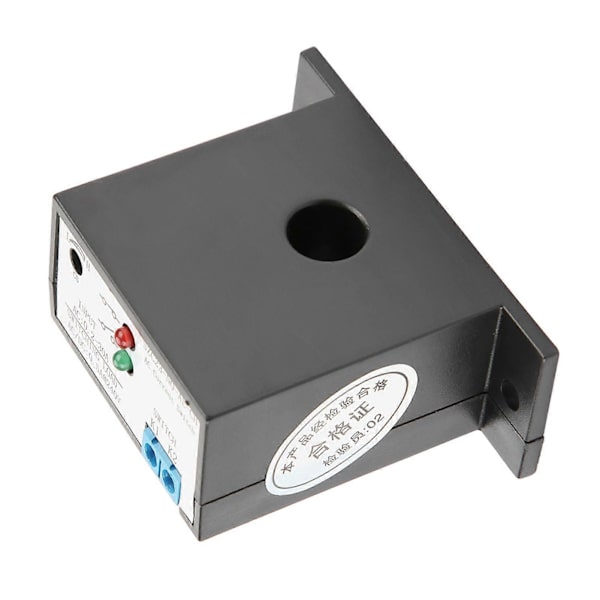

The SZC23 series AC current sensing switch is designed and manufactured to solve AC current monitoring. It uses the principle of mutual inductance to sense AC through-current, isolate the AC current, and output a normally open or normally closed switching signal to directly control various industrial automation equipment, such as flash, buzzer, relay, single-chip, or other power load equipment. Compared with traditional mutual inductors, thermal protectors, and other devices, the use of this device can not only provide more accurate and more timely control, but also can significantly simplify the design and reduce costs.
Features:
1. Self-powered, no external power supply required.
2. Action current 0.2-30A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube non-contact electronic switch.
5. The switch has no limit on the number of opening and closing, and the reaction speed reaches ms level.

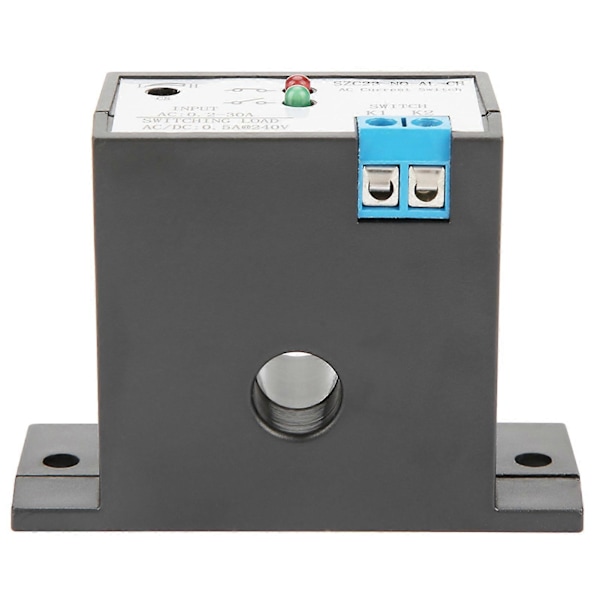

6. Through-core structure design, isolation voltage up to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
8. The outer casing is made of self-extinguishing material ABS.
9. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch for automatic control system and so on.
Specification:

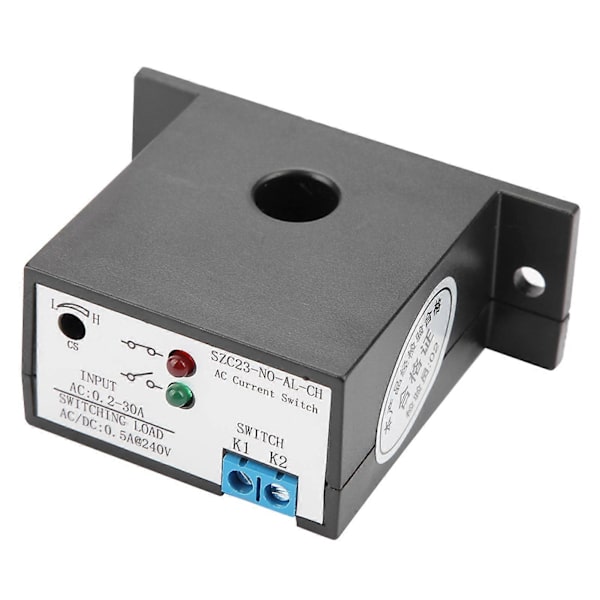

Model: SZC23-NO-AL-CH
Power supply: Not required
Rated load: 0.5A@240V AC/DC
Input current: 0.2-30A AC
Turn on minimum: 0.50.2A
Maximum overload: 100%
Leakage current: 0.1A
Accuracy: 1%
Hysteresis: 1%
Response time: 200ms
Repeatability: 100%
Working temperature: -20~60
Waterproof: IP30
Dimensions: 65*25*47mm / 2.56*0.98*1.85in

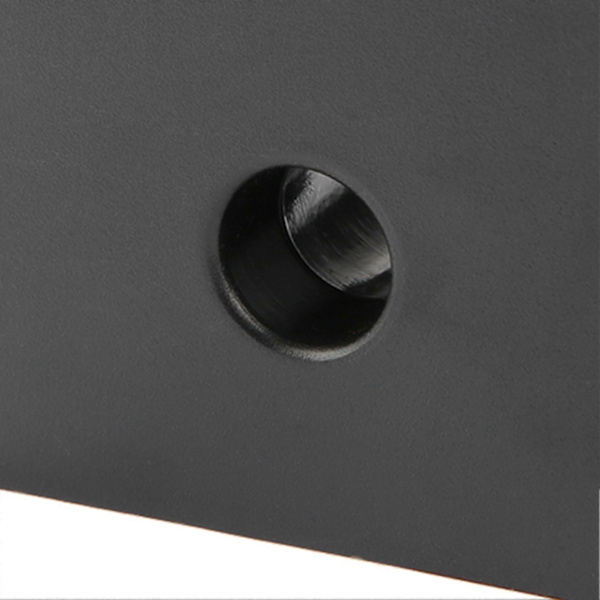

Hole diameter: 10mm / 0.4in
Package weight: Approx. 56g/2.0oz
Package list:
1 * Current Sensing Switch
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow a slight error due to manual measurement. Thanks for your understanding.
