Product range: control area / industry / complete / street lighting / lighting / agriculture / industrial control / home / household appliances
Electrical life: (under power load) more than 100,000; Mechanical life: (DC) = 10 or more; Mechanical life: (AC) = 10 or more
Insulation voltage: (between coil and contact) less than 1000VAC; Insulation voltage: (between contacts and contacts) less than 1000VAC
Contact resistance less than 50Ohm temperature: -20 Celsius ~ +55 Celsius
Time range: 24h/24 hours storage time 150/minimum setting unit 15 points/time 96

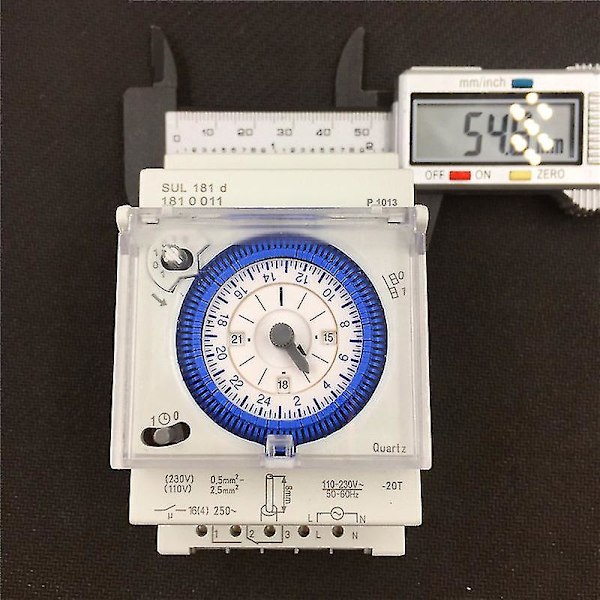

Model: SUL181D
Rated voltage: 250VAC
Coil power supply: 230VAC
Rated current: 16A
Coil power: 0.2W
Contact switching current: 16A
Contact switching voltage: 250VAC
Protection features: plastic type
Contact load: 16A
Contact form: 1H
Frequency: 50~60 Hz
Number of contacts: 1
: 24 hours

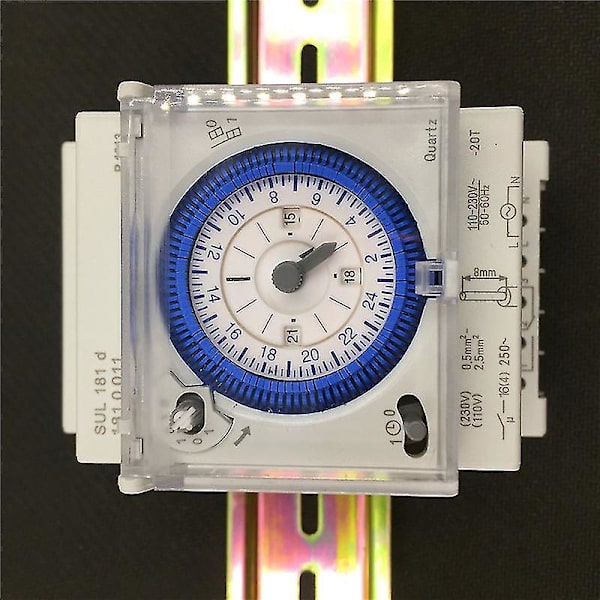

Installation form: DIN rail
Terminal block form: plug-in terminal
: 4 hours
Power failure retention hours: about 100 hours at 110 V
Contact capacity at 250 V AC, cos Diameter = 1: 16 A
Contact capacity at 250 V AC, cos Diameter = 0.6: 4 A
Minimum switching time: 15 minutes
Minimum setting interval: 15 min
Time accuracy: Less than +/- 1 s/day (quartz)
Output contact: 1c x 1
Switch output: Potential-free and phase-
Number of switch segments: 96
Standby consumption: 0.5 W
Test mark: VDE
Protection level: IP 20
Safety level: II according to EN 60 730-1
Applicable temperature: -20 ~ +55 Celsius
color: white
Material: ABS+ electronic components
Package contents:
1 * Programmable switch
1 * Instruction manual
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
