Feature:
1. Made of high-quality aluminum alloy material, ensuring durability and long service life.
2. Fast response time with shock resistance and strong anti-interference capabilities.
3. Suitable for various automation equipment such as forging machines, shearing machines, robots, packaging equipment, and more.
4. Available in five different styles for you to choose from.
5. This grid can be used for multi-area protection, among other things.
Specification:
Condition: 100% Brand New Output Method: NPN/NC Working Input Voltage: 10-30VDC Light Curtain Type: Om Type A Series: Relay Switching Method Number of Beams: 4 Beams / 6 Beams / 8 Beams / 10 Beams / 12 Beams (corresponding to model selection) Optical Axis Spacing: 40mm Effective Protection Height: 120/200/280/360/440mm (corresponding models available) Detection Distance: 0.3-2 meters Length of Each Cable: 2.15 meters (2 pcs) Response Time: ≤10ms Housing Material: Aluminum Alloy Protection Level: IP-65 Insulation Resistance: Greater than 10MΩ Product Color: Yellow Size (optional):
- Approx. 205 x 31 x 33mm / 8.1 x 1.2 x 1.3in - 285 x 31 x 33mm / 11.2 x 1.2 x 1.3in - 365 x 31 x 33mm / 14.4 x 1.2 x 1.3in - 445 x 31 x 33mm / 17.5 x 1.2 x 1.3in - 525 x 31 x 33mm / 20.7 x 1.2 x 1.3in Optional Style:
- 4 Beams BEM0440-A-120NB - 6 Beams BEM0640-A-200NB - 8 Beams BEM0840-A-280NB - 10 Beams BEM1040-A-360NB - 12 Beams BEM1240-A-440NB Package List:

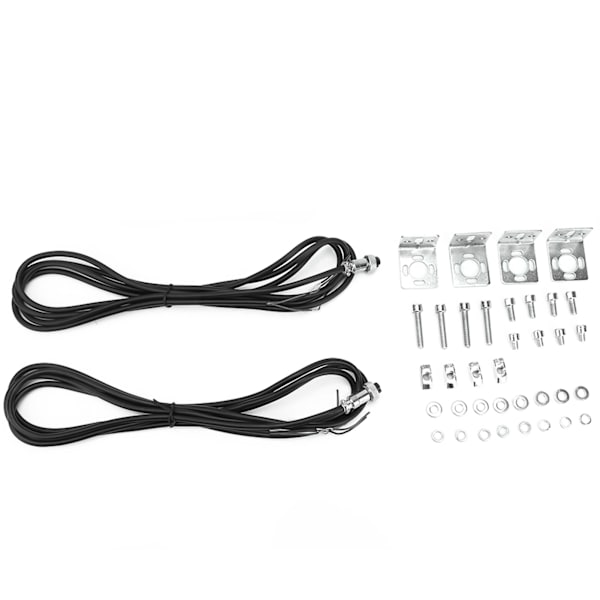

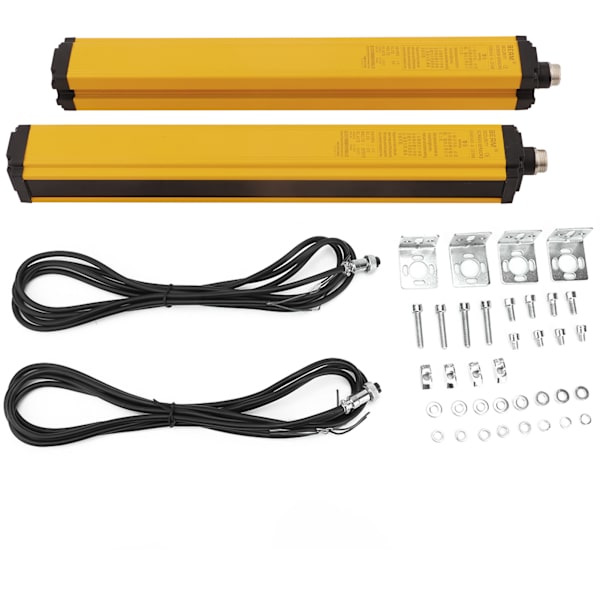

- 4 x Right Angle Brackets - 1 Bag of Screws - 2 x Black Connection Cable - 2 x Yellow Light Grids - 1 x English User Manual 100% Satisfaction: Our customers are our top priority. If you find any product problems after receiving the item, such as damage and incorrect quantity of goods, please contact the seller immediately. We will do our best to provide you with satisfactory after-sales service.
