1. Streamlined fuselage, can be held and operated with one hand, making measurement easier.
2. The use of high-quality alloys and fine craftsmanship forging makes the measurement more accurate.
3. The tension meter is suitable for relay tip pressure, electronic switch, micro switch, valve, spring pull pressure.
4. Small and portable style, this gauge can provide stable performance and clear reading.
5. The data of the mechanical dial is accurate, and the accuracy of the mechanical dial is higher than that of the digital display.

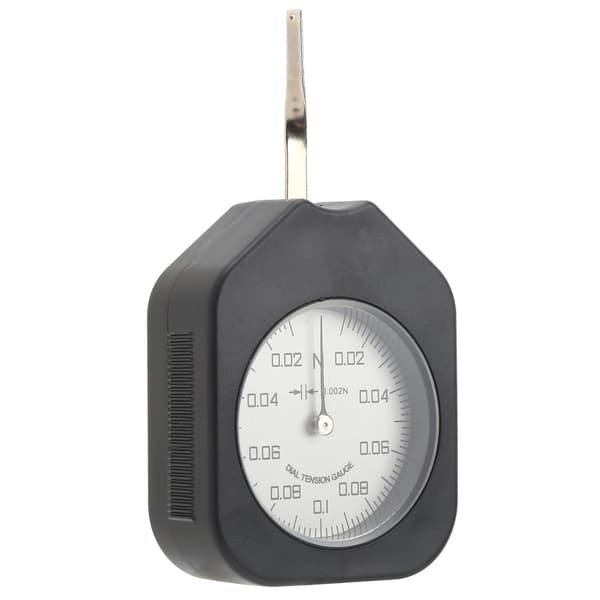

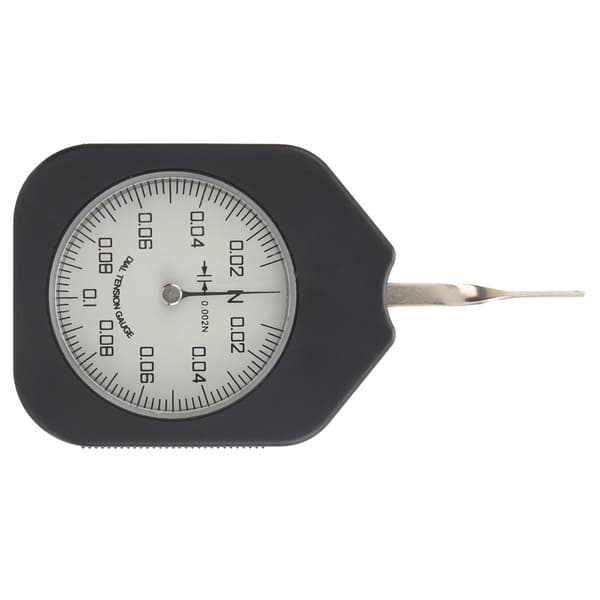

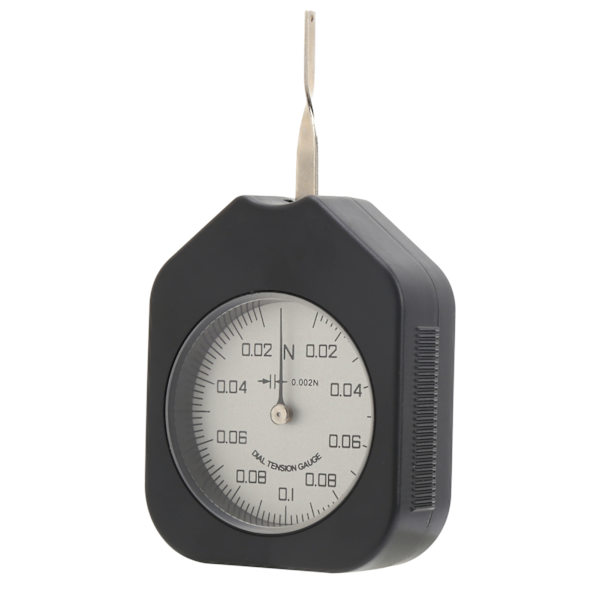

Item Type: Dial Tension Gauge
Material: ABS+alloy
Color: As shown in the picture
Model Specification: SEN-0.1-1
Pointer: Single pointer
Measurement Value: 0.1N
Graduation Value: 0.002N
Scale Style: 0.02-0.1-0.02
Application: The tension gauge of the meter is suitable for relay tip pressure, electronic switch, micro switch, valve, spring pull pressure, main shaft pressure of measuring instrument, tip and gag bit mechanical pressure of measuring device, tape recorder buffer mechanism pressure and other precise pressures, pull force test.
How to use:
When testing, use the needle to move the object from static state to the position needed. The tension meter not only tests clockwise but also along counterclockwise. The needle must always be vertical to the push-pull force direction.
Tension gauge sets single needle and double needle. The single needle tensiometer measures and reads immediately. When the double needle tension meter gets the highest value, the needle stays still, convenient for reading.

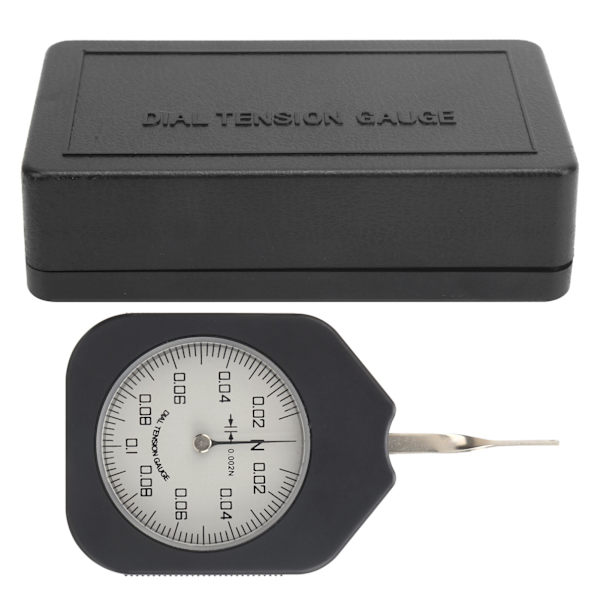

1 x Dial Tension Gauge
