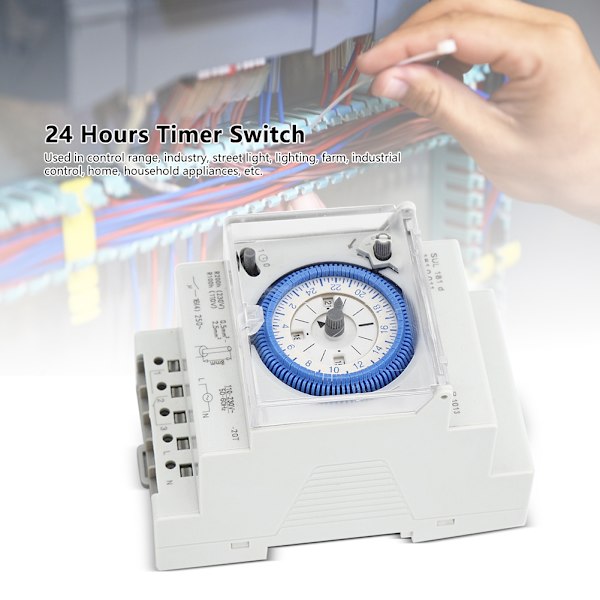

1. Used in industry, street lighting, lighting, farms, industrial control, homes, household appliances, etc.

2. The product has a long electrical and mechanical life, electrical life: (under load) ≥100,000 times, mechanical life: (DC and AC) ≥10 million times.

3. Shell and insulation materials, high temperature resistance, high temperature resistance, fire-resistant thermoplastic materials.

4. The timer uses advanced control circuit, accurate timing, stable and reliable.

5. Simple structure, compact size, easy installation and use.

Specifications

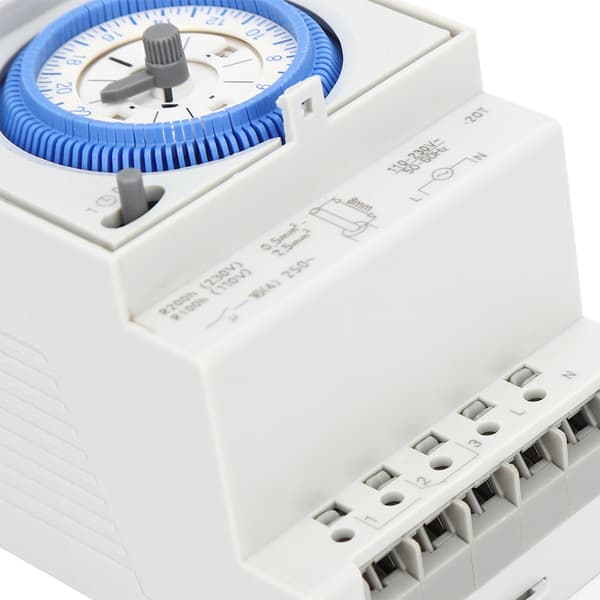

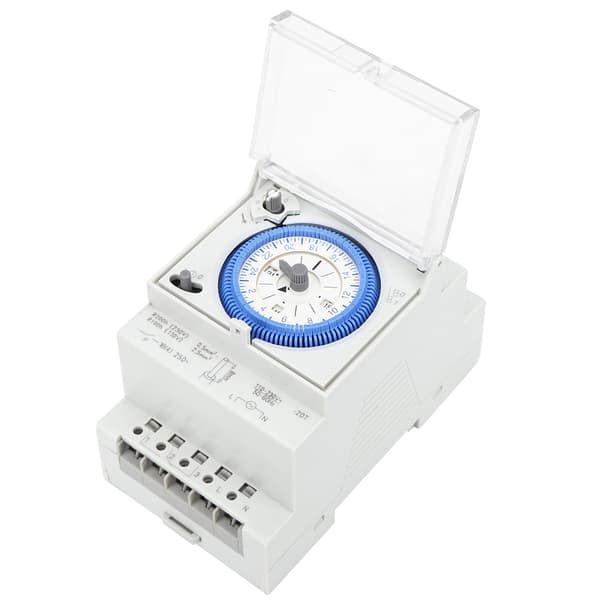

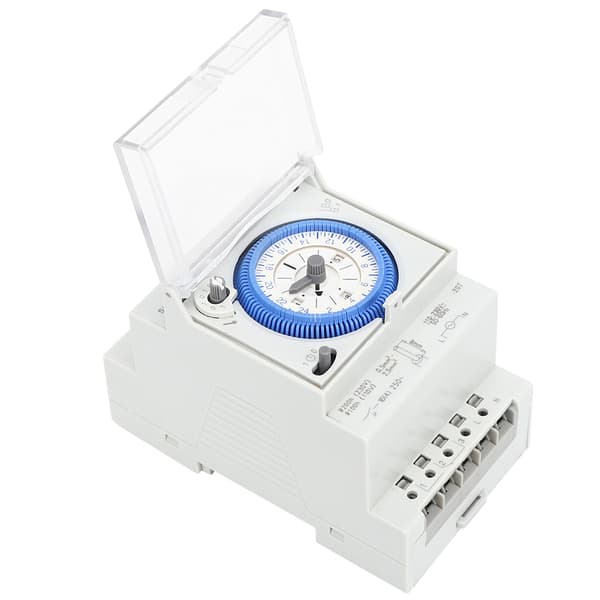

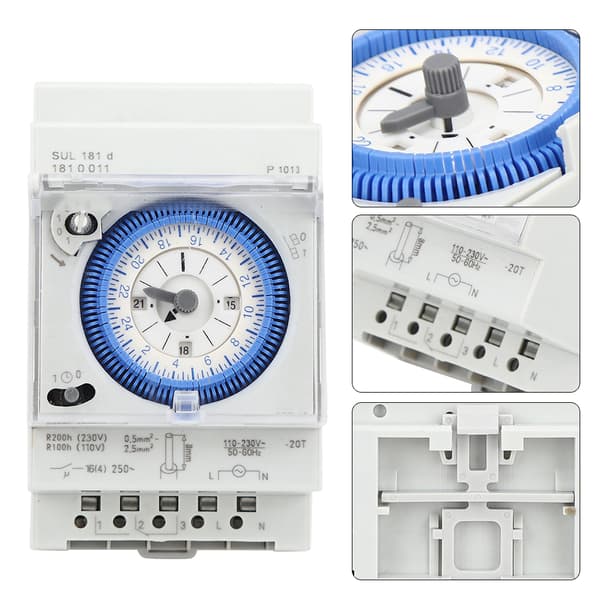

Item Type: Mechanical Timer

Model: SUL181D

Rated Voltage: 250VAC

Coil Voltage: 230VAC

Rated Current: 16A

Coil Voltage: 0.2W

Contact Current: 16A

Contact Voltage: 250VAC

Protection Features: Plastic

Contact Load: 16A

Contact Form: 1H

Electrical Life: (under load) More than 100,000 times

Mechanical Life: (DC) = More than 10 million times

Mechanical Life: (AC) = More than 10 million times

Insulation Voltage: (between coil and contact) ≤1000VAC

Insulation Voltage: (between contact and contact) ≤1000VAC

Contact Resistance ≤50Ω Ambient Temperature: -20℃～+55℃

Time Range: 24h/24 hours, power failure storage time 150, minimum setting unit 15 minutes/time, total 96 times

Frequency: 50～60Hz

Number of Contacts: 1

Cycle: 24 hours

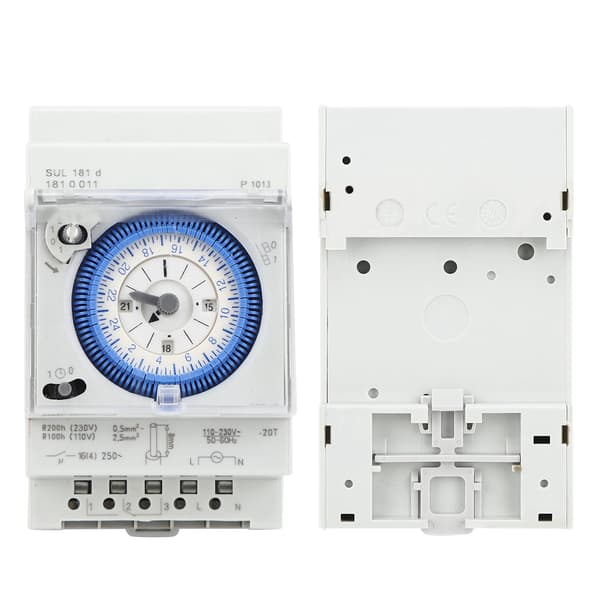

Installation Form: DIN rail

Connection Form: Plug-in terminal

Cycle: 4 hours

Storage time after power failure: 100 hours at approx. 110 V

Contact capacity at 250 V AC, Cosφ = 1: 16 A

Contact capacity at 250 V AC, Cosφ = 0.6: 4 A

Minimum switching time: 15 minutes

Minimum setting interval: 15 minutes

Time accuracy: ≤±1 second/day (quartz)

Switching output: potential-free and phase-independent

Number of switching segments: 96

Standby power: 0.5 W

Test indicator light: Applicable to VDE

Housing and insulation material: high temperature resistance, high temperature resistance, fire-resistant thermoplastic materials

Protection level: IP 20

Safety level: II according to EN 60 730-1

Applicable ambient temperature: -20 ℃ ~ + 55 ℃

Battery information: button battery 100mAh

Packing list:

1 x timer

Package weight: approx. 200g.
