1. The wind pressure transmitter has high sensitivity, high accuracy, and strong anti-overload capability. 2. The transmitter sensor and amplifier circuit are highly integrated with good performance. 3. The product has strong anti-interference ability, long-term stability, and reliability. 4. Using unique stress isolation technology, accurate temperature compensation, and high-stability amplification processing. 5. The signal of the measured medium can be converted into a 4-20mA output signal.

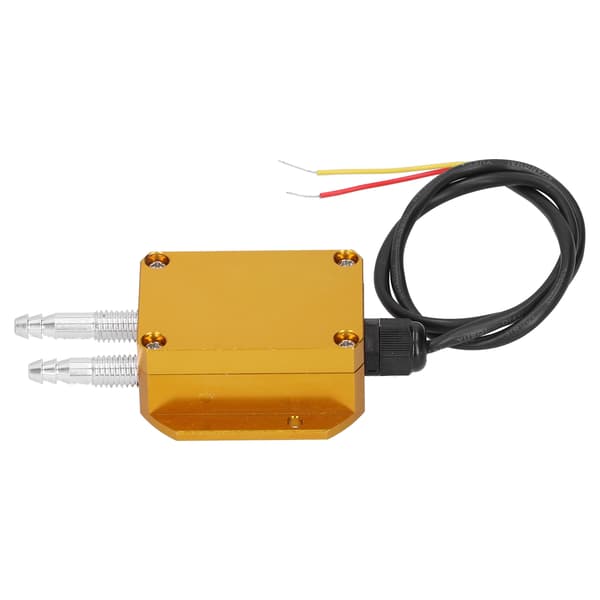

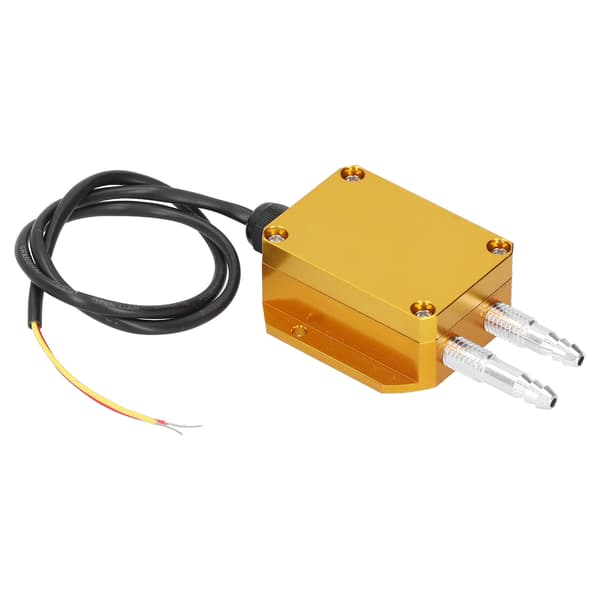

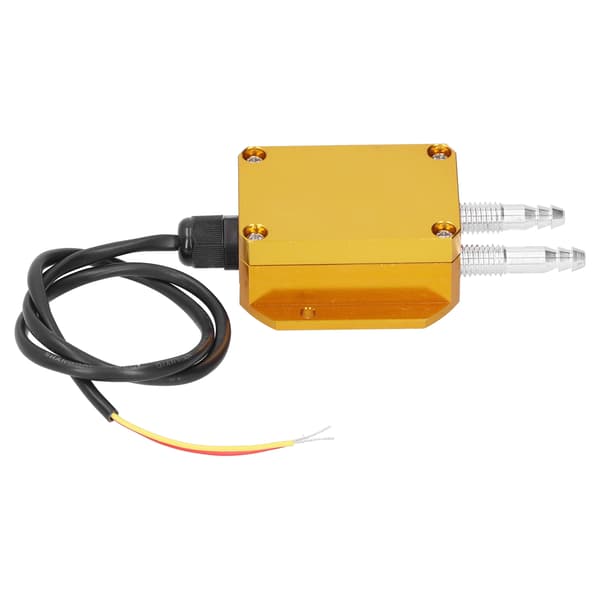

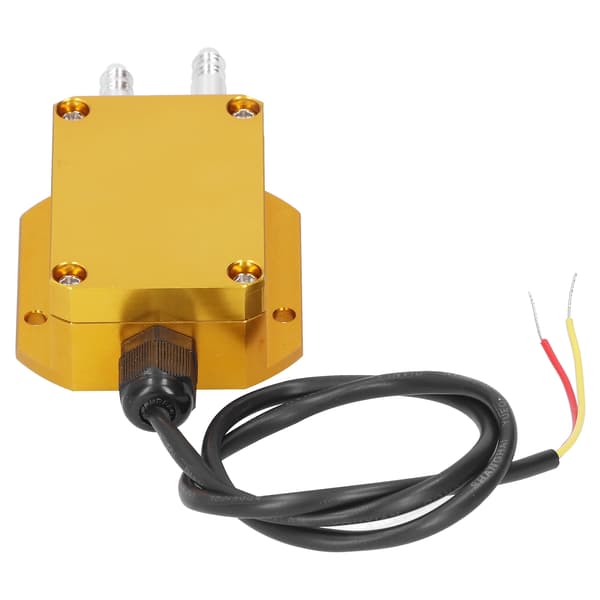

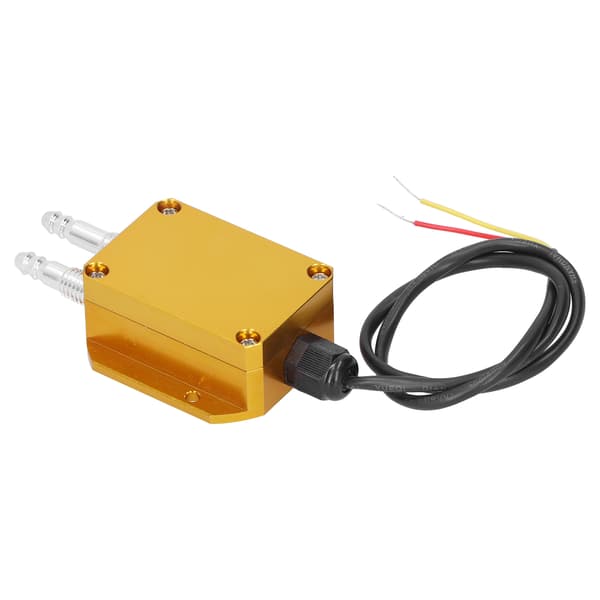

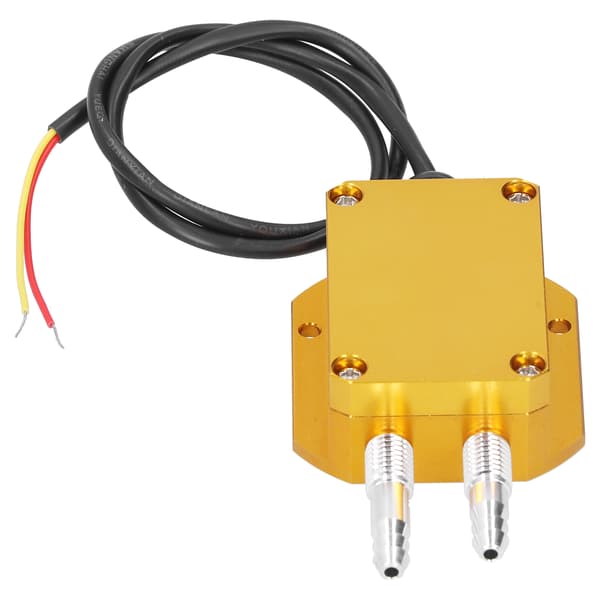

Item Type: Wind Pressure Transmitter

Material: Aluminum Alloy
Measuring Medium: Non-corrosive gas
Overload Capacity: Unilateral minimum withstand voltage 4Kpa, maximum withstand voltage must not exceed 25 times the range
Measurement Accuracy: 0.2%FS
Output Signal: 4~20mA
Power Supply: DC24V
Wire Length: Approx. 50 cm / 19.7 in
Pagoda Mouth Diameter: Approx. 8 mm / 0.3 in
Temperature Drift: ±0.1%FS/℃
Ambient Temperature: -30℃~+80℃
Environmental Humidity: ≤85%RH
Applicable Environment: Widely used in pressure measurement in clean rooms, boilers, dust collectors, vacuum cleaners, power plants, air conditioners, etc.

Size: Approx. 60 mm / 2.4 in

51 mm / 2 in

45 mm / 1.8 in

20 mm / 0.8 in
64 mm / 2.5 in

4 mm / 0.2 in

40 mm / 1.6 in
35 mm / 1.4 in

30 mm / 1.2 in

10 mm / 0.4 in

1.5 mm / 0.1 in

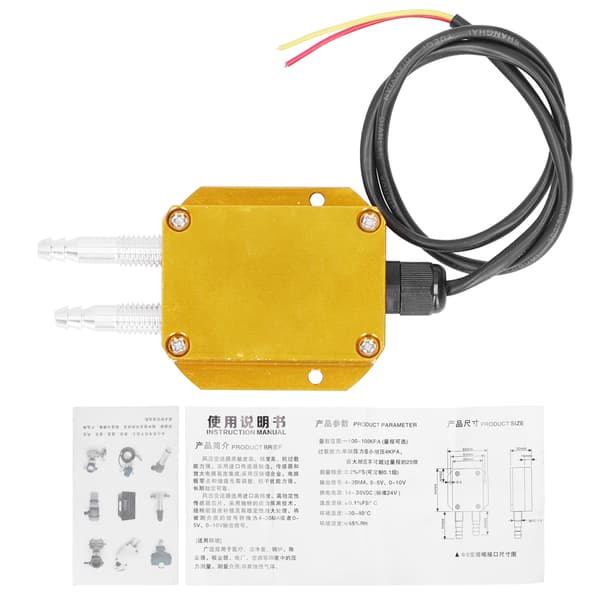

1 x Wind Pressure Transmitter
