Features:

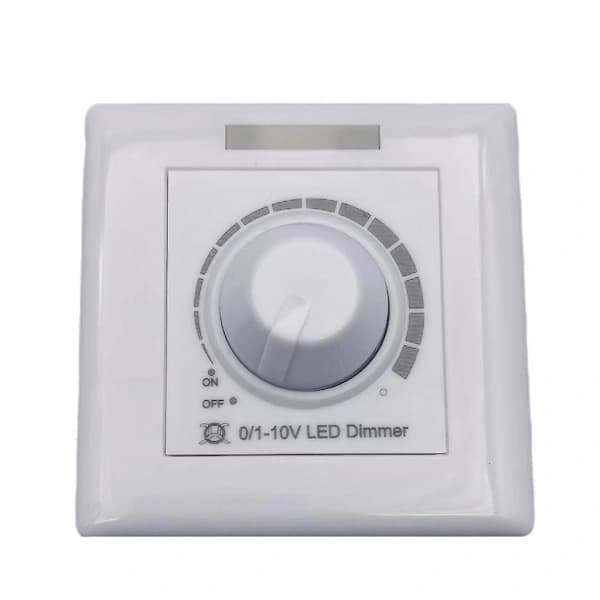

This is a safety-isolated standard 0-10V dimming controller, which uses the current PWM digital brightness adjustment technology and can adjust the brightness steplessly with the manual knob.

It is used to control various LED dimmable drivers and dimmable electronic rectifiers with 0-10V dimming signals to adjust the brightness of LED lights.

The dimming range is 0-100%, and the safety isolation circuit is designed to protect the load from damage due to voltage fluctuations.

Compatible with at least 95% of drivers with standard 0-10V as dimming signal.

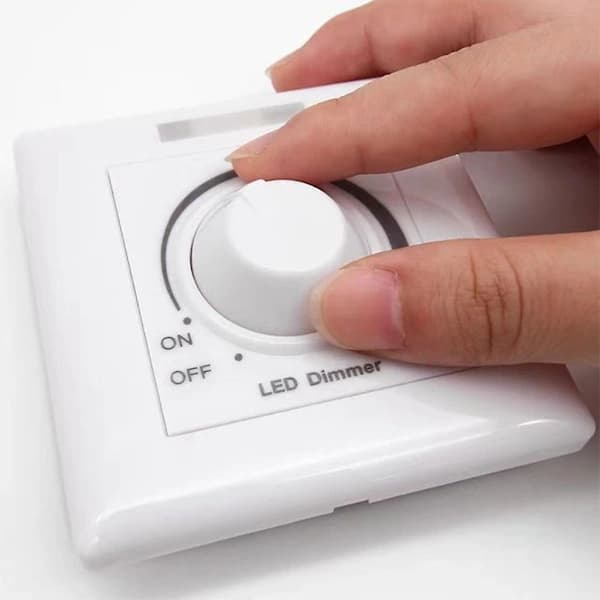

Easy to install: The ultra-thin shape can be easily installed in the electrical box and wall panel to achieve convenient and intuitive control.


Package Includes:

1x LED Control Dimmer


Specifications:

Material: ABS Material

Input Voltage: AC85/277V

Frequency: 50/60HZ

Output Voltage: DC0-10V

With Switch: Yes

Dimmer Power Consumption: 0.05W

Switch Current: 1A

Operating Temperature: -20+65

Size: Approx. 8.75x8.75mm/0.34x0.34inch


Note:

Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
