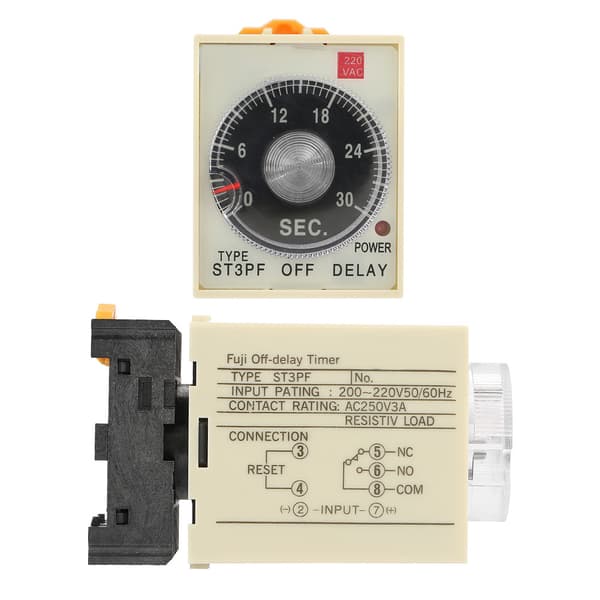

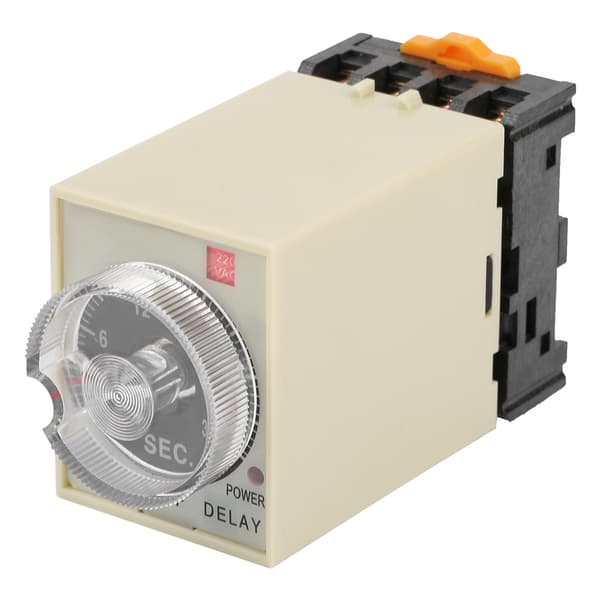

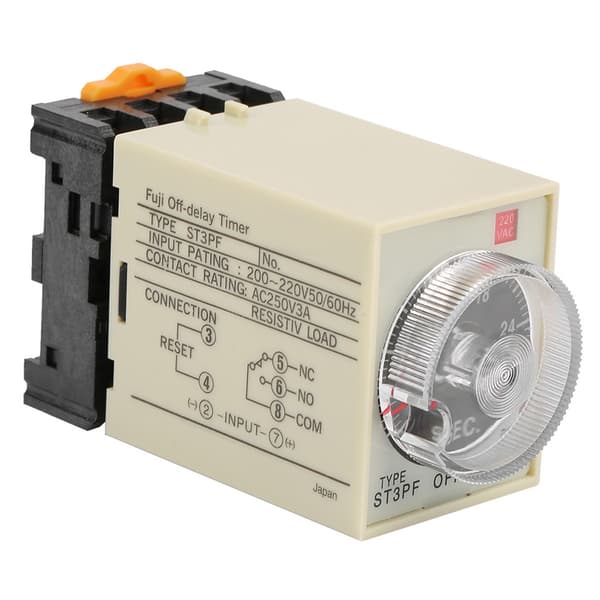

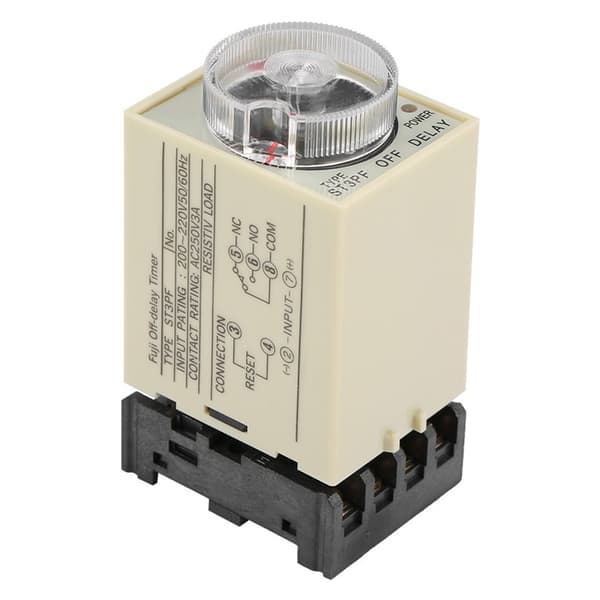

1. This is a time relay with power-off delay function.

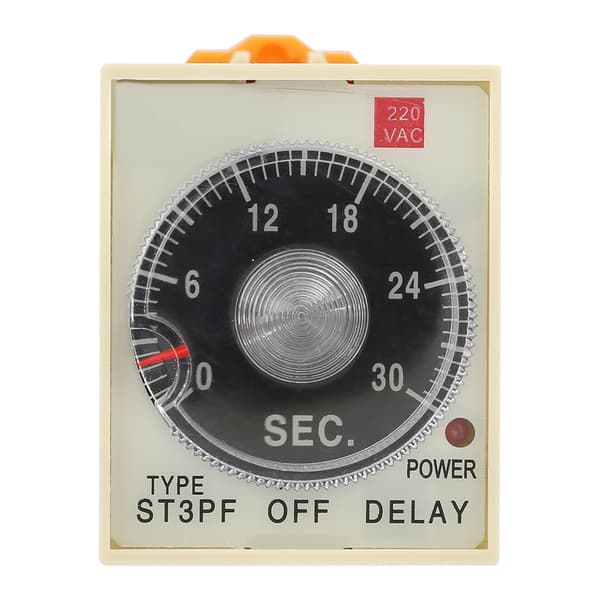

2. Adjustable 0-30 seconds delay time with knob.
3. High quality plastic case, waterproof and dustproof.
4. Equipped with quick connect base, easy to wire.
5. High precision, low power consumption, long service life.
r
Features: r
r

r
1. This is a time relay with power-off delay function. r
r

r
2. Adjustable 0-30 seconds delay time with knob. r
r

r
3. High quality plastic case, waterproof and dustproof. r
r

r
4. Equipped with quick connect base, easy to wire. r
r

r
5. High precision, low power consumption, long service life. r
r

r
6. Widely used in automated control circuits such as remote control, communication, automatic control, mechatronics and so on. r
r
r
r
r
r
Specification: r
r
r
Model: ST3PF r
r
r
Working mode: Power-off delay r
r
r
Time range: 0-30s r
r
r
Delay error: ≤1% r
r
r
Rated voltage: AC 220V r
r
r
Rated current: 5A r
r
r
Power consumption: 2VA r
r
r
Contact load: Medium power r
r
r
r

r
Number of contacts: 1 group of delay contacts r
r
r
Contact capacity: AC 250V 3A resistive r
r
r
Contact switching current: 5A r
r
r
Contact switching voltage: 1V r
r
r
Coil power supply: 24V r
r
r
3C rated voltage range: <36V r
r
r
Mounting method: panel type / base type r
r
r
r
Dimensions: 90*50*40mm / 3.54*1.97*1.57in r
r
r
Weight: Approx. 121g/4.2oz r
r

r
r
r

r
Package list: r
r
r
1 x Power-off Delay Timer Relay r
r
r
r
r
r
Note: r
r

r
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. r
r

r
2. Please allow a slight error due to manual measurement. Thanks for your understanding. r
