1、[LINEAR ACTUATOR] A drive device that converts the rotating motion of the motor into the linear reciprocating motion of the actuator, which can realize remote control, centralized or automatic control. 2、[WIDE APPLICATION] The electric actuator can be used for electric medical bed, electric sofa, lifting rod for counter, industrial electric lifting system, camera stand, projector, wedding system, etc. 3、[FUNCTION PRINCIPLE] After the motor is slowed down by the gear, it drives a stack of screw nuts to complete the push rod action by using the positive and reverse rotation of the motor. 4、[WORKING PARAMETER] The stroke of the electric actuator is 50mm, the actuator speed is 6mm/s, the maximum thrust is 1000N, and built-in limit switch, which is safe and reliable. 5、[DURABLE MATERIAL] The linear actuator is made of excellent metal, with IP65 protection grade, corrosion and oxidation resistance, and can withstand harsh working environments.

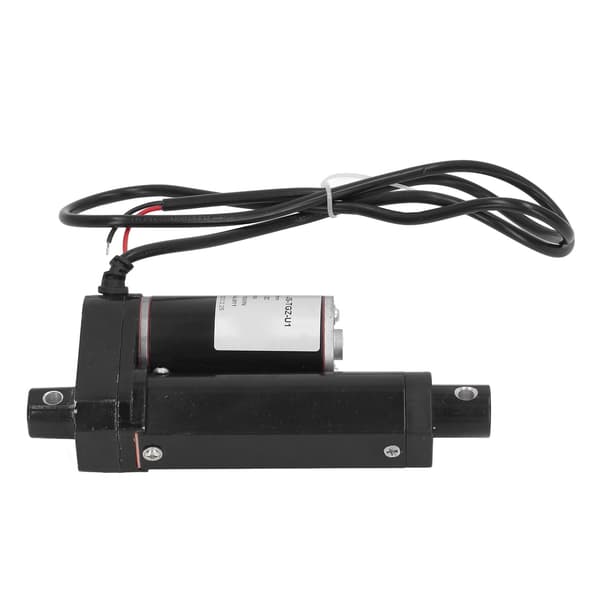

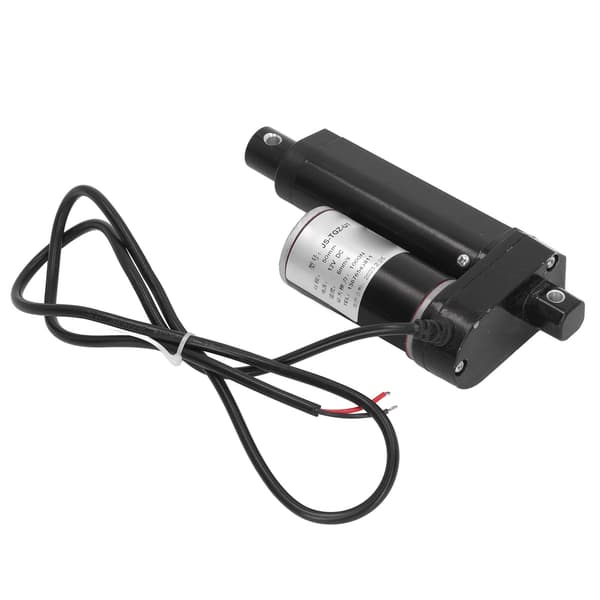

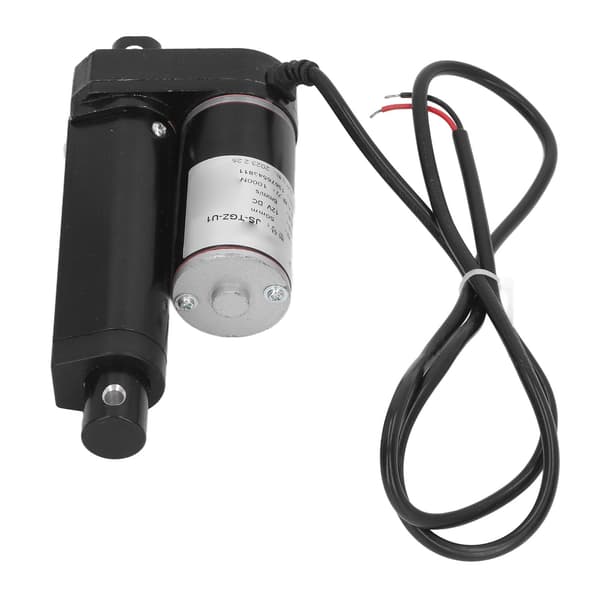

Item Type: Electric Actuator
Stroke: Approx. 50mm / 2in
Product Voltage: 12VDC
Actuator Speed: 6mm/s
Maximum Thrust: 1000N
No Load Current: 1A
Load Current: 6A
Rated Power: 20W-30W
Ambient Temperature: 40℃-65℃
Noise Level: <55dB
Limit Switch: Built in
Protection Class: IP65
Application: Electric medical bed, electric sofa, lifting rod for electric display stand, industrial electric lifting system, camera stand, head camera, wedding system.

1 x Electric Actuator
