1. Dual MOS anti-backflow circuit, low heat generation. Complete 3-level smart PWM charging management, high efficiency. 2. Large LCD display with backlight, clearly shows system operation information and indicates status and data, convenient for switching modes and parameter configurations. 3. Adjustable charging and discharging parameters, with power-off memory function. Automatically recognizes 12V/24V system voltage. 4. Safe to use, built-in short-circuit protection, open-circuit protection, reverse connection protection, overcurrent protection. Can be used for home, industrial, commercial use, etc. 5. There are corresponding icon markings on the wiring terminals, used to connect batteries, solar panels, and DC loads. Install it in a well-ventilated place.

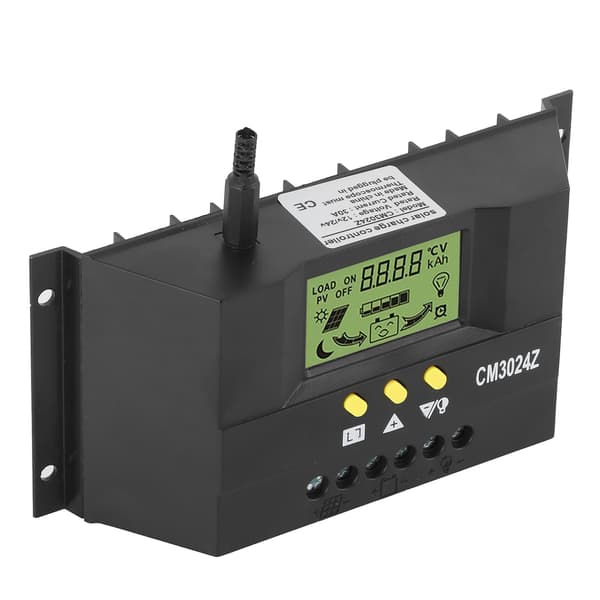

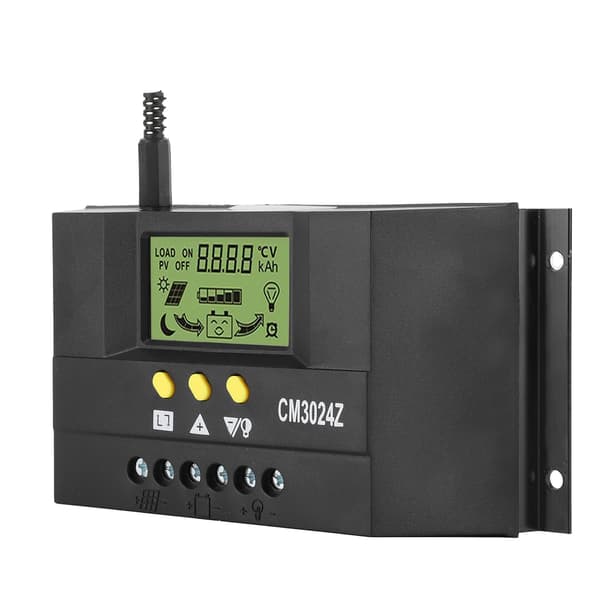

Item Type: Solar Charge Controller
Material: Plastic
Rated Voltage: 12V/24V battery voltage
Maximum Charge/Discharge Current: 30A
Solar Panel Input Voltage Range: Maximum 18-450W/36V-900W
Charging Mode: PWM
Overvoltage Protection: 17V.34V
Full Charge Cut-off: 13.7V/27.4V
Undervoltage Cut-off: 10.5V/21V
Over-discharge Recovery Voltage: 12.2V/24.4V

1 x Solar Charge Controller

1 x Manual

1 x Wire Connector
