1. Applicable to 1/24, 1/28, 1/32 RC car. Wonderful compensation for the old or broken one. 2. 2-pole 3-slot high-torque design. Comprehensively improve performance. 3. 6061 T6 Billet Aluminum Radiator Tank machined by CNC. Strong resistance to external heat dissipation. 4. High-purity copper windings maximize efficiency. Excellent organization, acceleration, and linearity. 5. Precision-designed for maximum energy conversion. Easy and convenient for installation.

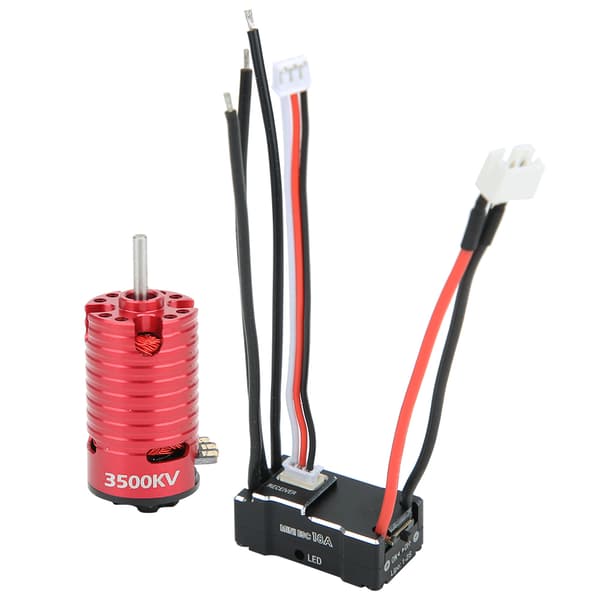

Item Type: Motor ESC Set
Material: Metal
Optional Motor Type: Black 2500kv, Red 3500kv, Green 5500kv, Titanium color 7500kv, Orange 9500kv
Motor:
Number of Poles: 2
Maximum Power: 8A-12A
Highest Voltage: 1-2 seconds
Resistance: 0.1-0.64 Ω
Motor Size: Approx. 15 x 15 x 25 mm / 0.6 x 0.6 x 1 inch
Extension Shaft Length: Approx. 10 mm / 0.4 inch
Shaft Diameter: Approx. 2 mm / 0.08 inch
Table of Motor KV Color Understanding:
Black = 2500kv
Red = 3500kV
Green = 5500kv
Titanium color = 7500kv
Orange = 9500kv
Suitable for 1/24, 1/28, 1/32 RC cars
ESC:
Burst Current/Power: 12A / 36A
Batteries: 1-2 fat cells, 3-4 NIMH batteries
Motor Type: Sensorless brushless motor
BEC Output: 5 V / 300 mA (simulation mode)
Applicable Model: Mini car
Size: Approx. 15 x 26 x 11.5 mm / 0.6 x 1 x 0.5 inch
ESC Statement:
This is the instructor speed of the electric controller (ESC). The high-power system of the RC model is very easy to use.
ESC Features:
1. Specially designed for RC cars with excellent features for starting, acceleration, and linearity.
2. Compatible with sensorless brushless motor.
3. The highly resistant power capacity, excellent heat dissipation.
4. Multiple protection functions: Low voltage cut-off protection / overheating protection / protection against throttle signal loss / motor protection /
5. Easily programmed and compatible with pocket-sized program cards. 1 x Brushless Motor
1 x 18A Esc
1 x Manual
