Description

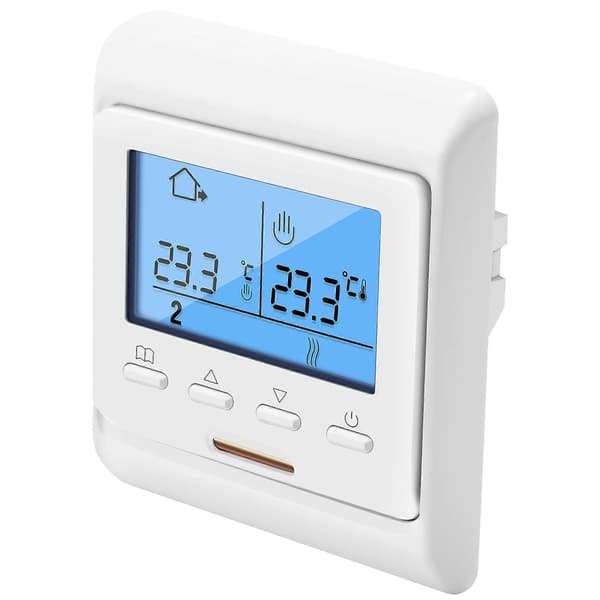

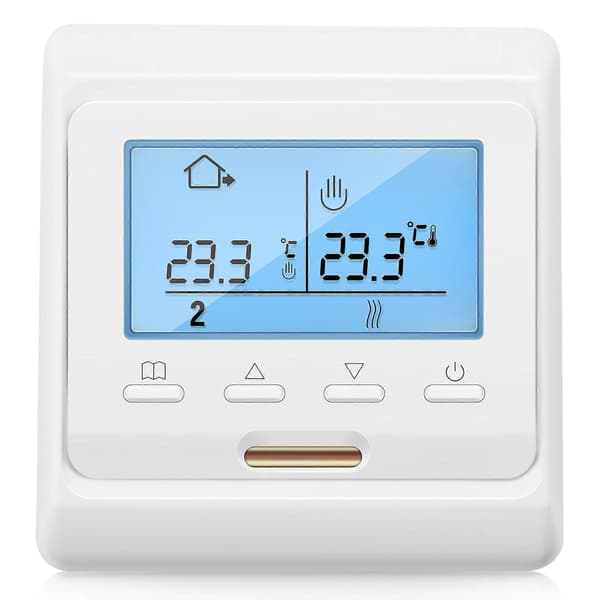

Weekly programmable thermostat with LCD screen, it is possible to set 6 periods called events each day with different temperatures

You can also choose temperature control mode or manual mode according to your requirements

The thermostat is recommended for controlling electric heating units or on/off valve actuators used in water-based heating systems.



Technical data:

Voltage: AC 230V 50-60Hz

Power consumption: 2VA

Setting range: 5 - 90 Celsius

Limiting range: 5 - 99 Celsius (factory setting: 35 Celsius)

Accuracy of temperature measurements: 0.5 - 10 Celsius adjustable, (factory setting: +/- 1 Celsius)

Ambient temperature: -5 - 50 Celsius

Protection class: IP20

color: White

Material: plastic

size: 86 x 86 x 12mm

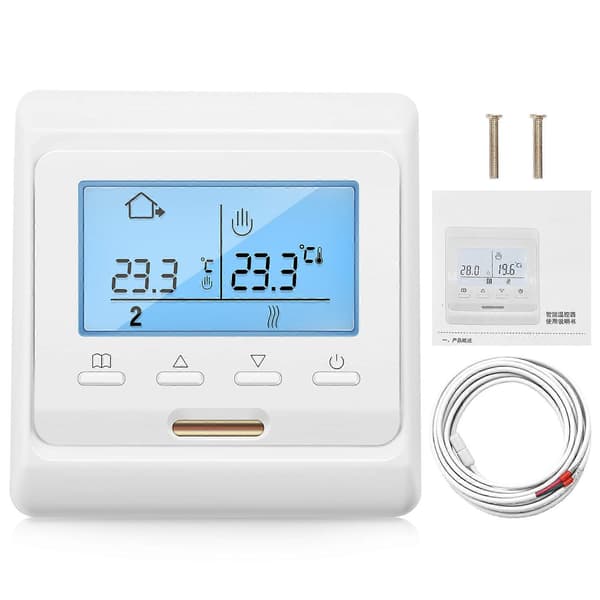

Package contents:

1 x LCD Programmable Temperature Control

1 x NTC sensor

2 x screw



Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
