Features:\r

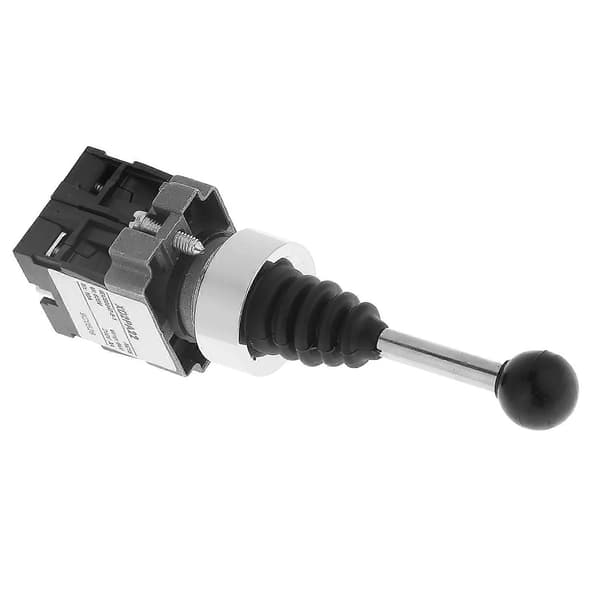

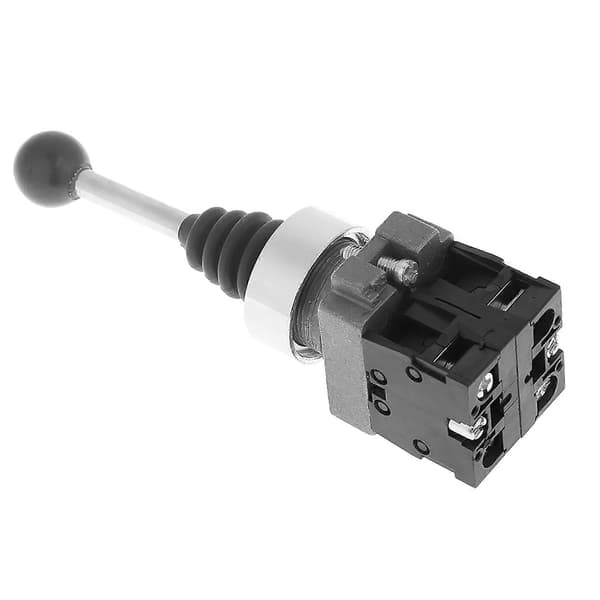

The joystick switch is a momentary switch that has 2 normally open contacts.\r
\r
The lever returns to its original position when released.\r
\r

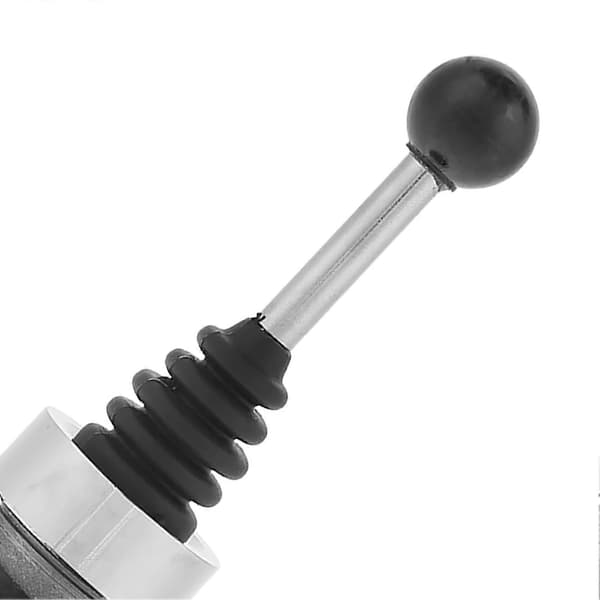

The rubber sleeve on the lever is resistant to water, oil, and dust.\r
\r
Widely used for industrial control of AC 50Hz and DC circuits.\r
\r
It can control magnetic starters, contactors, relays, and other electrical circuits.\r
\r
\r
\r
Specifications:\r

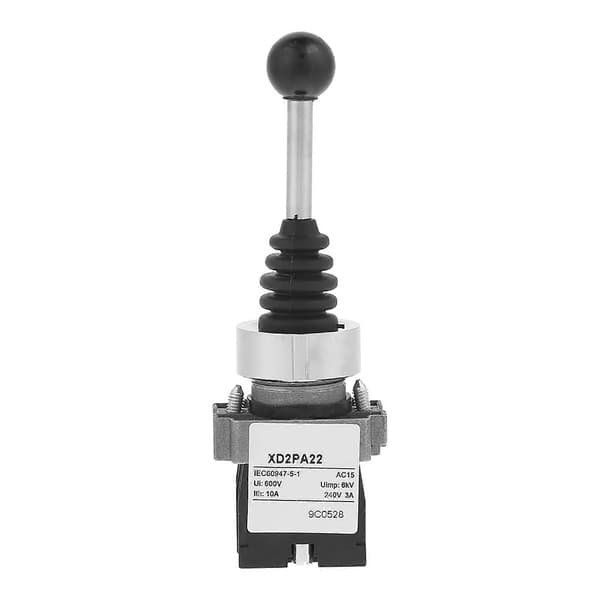

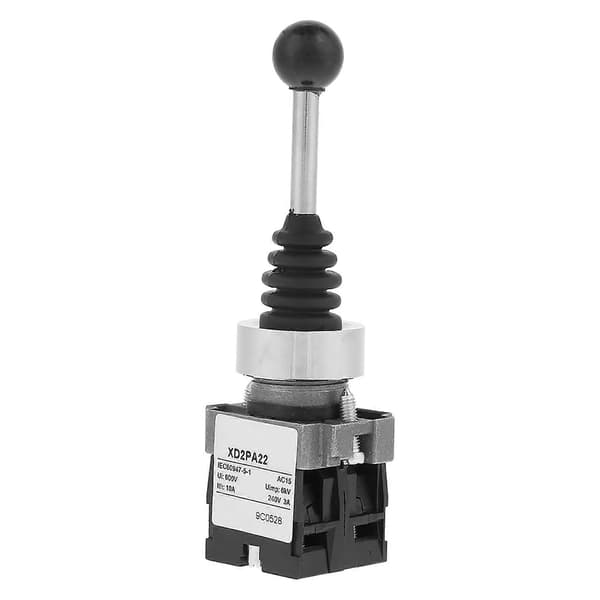

Model: XD2-PA22CR\r
Type: 2-position momentary\r
Contact: 2NO\r
Rated voltage: 0~380V AC (50Hz); 0~220V DC\r
Mounting hole diameter: 22mm\r
Electrical life: >500,000 times\r
Mechanical life: >500,000 times\r
Size: 12.5*4cm/4.9*1.6in\r
Operating temperature: -25~+55 (no ice)\r
Operating humidity: 45~85%RH (no condensation)\r
Contact resistance: 50mΩ\r
Insulation resistance: 100 MΩ\r
Max. Withstand voltage: 3000V, AC 50Hz\r
Vibration capability: 50Hz, amplitude is about 1mm\r
Shock resistance: >10m/s2 (about 10G)\r
IP rating: IP55\r
Weight: 124g (approx.)\r
\r
\r
Package includes:\r
1 x Switch
