【Enhanced Safety】The photovoltaic diode solar connector can be extended and retracted with a load, providing double protection against electric shock. It features a quick release and anti-vibration function, and the contact head is equipped with conductive insulating elements. Suitable wire diameter is 2.5-6.0 mm².

【Specifications】Rated voltage for this solar diode connector: 1000V; contact resistance: ≤0.35mΩ; ambient temperature: -40℃-+90℃ / -40℉-+194℉; product heat resistance: -40℃-+135℃ / -40℉-+275℉; pull-out force: ≥50N; insertion force: ≤50N; High quality and stable performance to give you a good experience.

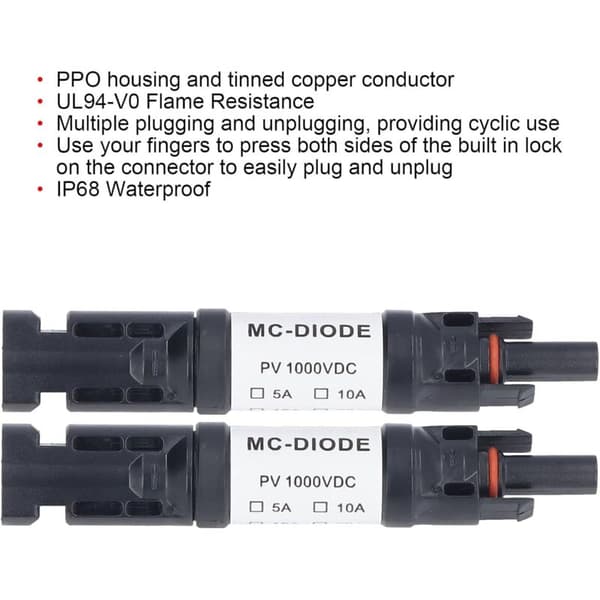

【Waterproof and Flame Retardant】The solar connector with backflow diode is IP68 waterproof and can therefore be used in harsh outdoor environments. The high degree of flame retardancy according to UL94-V0 ensures safety during use.

Specification:

Item Type: Solar Connector

Specification (model): MC-30D

Insulation Material: PPO

Conductor Material: Tinned copper

Weight: Approx. 45g / 1.6oz

Rated Voltage: 1000V

Description: Built-in anti-backflow diode

Ambient Temperature: -40℃-+90℃ / -40℉-+194℉

Product Temperature Resistance: -40℃-+135℃ / -40℉-+275℉

Safety Class: DCII

Waterproof Rating: IP68

Through Resistance: ≤0.35mΩ

Connection System: Multi-point connection

Self-locking System: Snap-lock

Note: All data are measured manually; please allow an error of 1-3 cm due to differences in lighting and Due to screen differences, there may be color variations; please refer to the actual received item.
