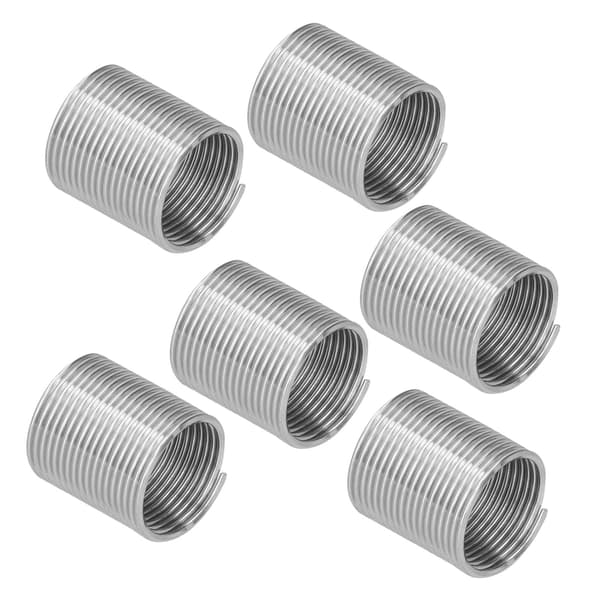

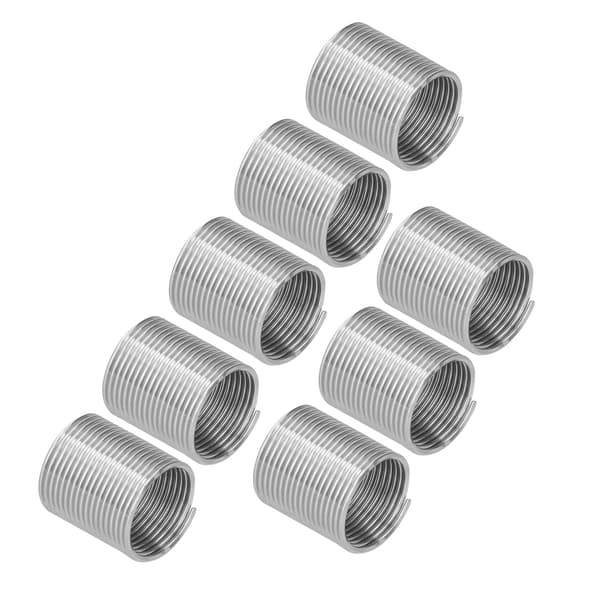

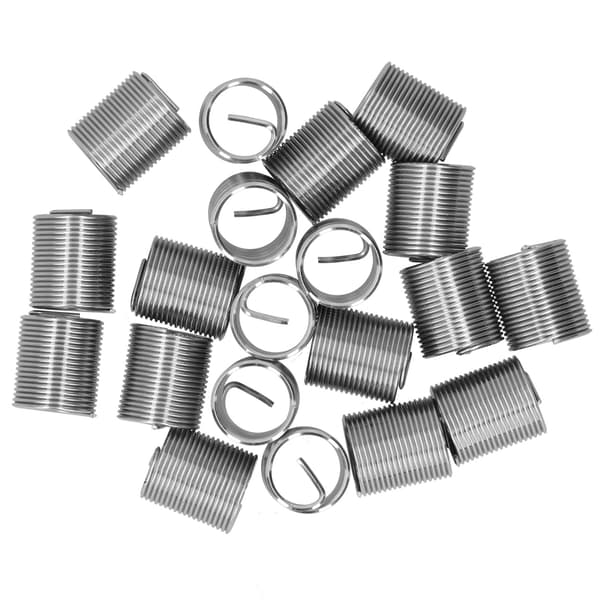

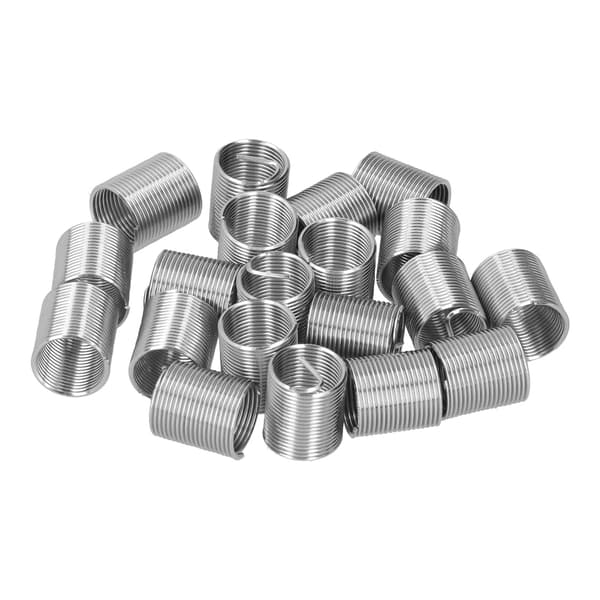

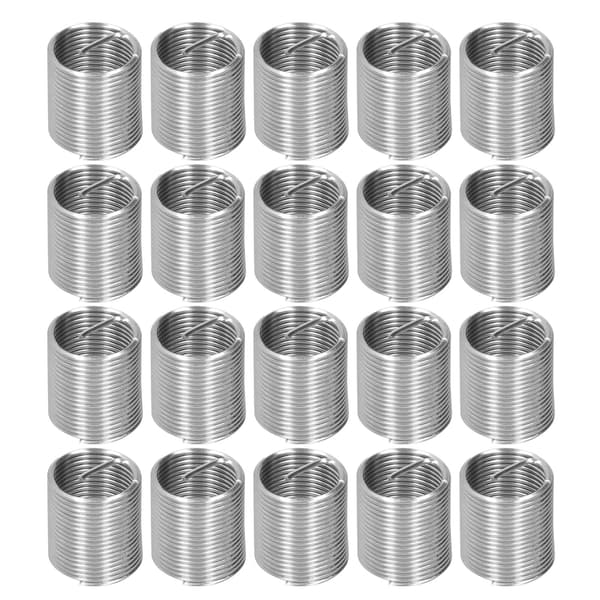

1. If a thread processing error occurs or an internal threaded hole is damaged, the wire thread insert is a good maintenance tool. 2. 304 stainless steel has good corrosion resistance and is not easily broken when repairing threaded holes. 3. The thread size is standard, the thread is clear, and it will be more accurate for restoring thread slippage. 4. The screw sleeve can be used to convert between metric and inch threaded holes, which is convenient and fast. 5. Widely used in hydraulic machinery, welding equipment, auto parts, power machinery, and furniture, etc.

Item Type: Thread Repair
Material: SUS304
Model: M14 x 1.25
Thread Specification: M14 x 1.25
Outer Diameter Before Installation: Approx. 16.7-17.2 mm / 0.66-0.68 in
Drill Diameter: Approx. 14.3 mm / 0.6 in
1D Length After Installation: Approx. 14 mm / 0.6 in
1.5D Length After Installation: Approx. 21 mm / 0.8 in
2D Length After Installation: Approx. 28 mm / 1.1 in
2.5D Length After Installation: Approx. 35 mm / 1.4 in
3D Length After Installation: Approx. 42 mm / 1.7 in
Wire Thread Insert Model For example: M3 x 0.5 x 1.5D, which means that after the screw set is completed, the internal thread is M3, the pitch is 0.5, and the length is 1.5D (the length is 1.5 times the diameter, that is, 1.5 x 3=4.5 mm), the length here refers to the length after installation.
Wire thread inserts are also called threaded sleeves, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of internal threaded fasteners made of high-strength, high-precision diamond-shaped cross-section steel wires; Use on low-strength engineering materials such as aluminum alloy, zinc alloy, copper, plastic, etc. can significantly improve thread strength and wear resistance.

20 x Thread Repair
