1. The controller can protect the inner circuit and is good for heat dissipation to avoid thermal overload. 2. It can provide steady speed and sensitive control of braking and direction changes. 3. The wires and interfaces are durable, ensuring low malfunction during long-term use. 4. The interfaces have instruction labels on them for easy installation. 5. Suitable for electric bicycles, electric tricycles, electric scooters.
Features:
\r
1. The controller can protect the inner circuit and is good for heat dissipation to avoid thermal overload.
\r
2. It can provide steady speed and sensitive control of braking and direction changes.
\r
3. The wires and interfaces are durable, ensuring low malfunction during long-term use.
\r
4. The interfaces have instruction labels on them for easy installation.
\r

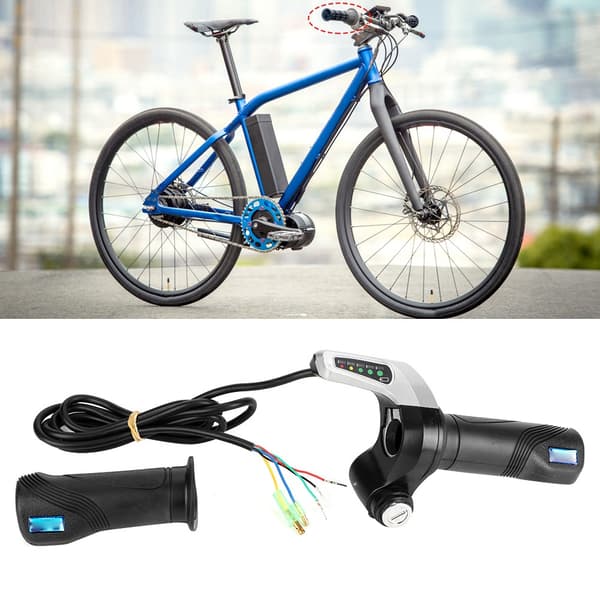

5. Suitable for electric bicycles, electric tricycles, electric scooters.
\r
6. Good grip, better and comfortable handling, non-slip.
\r
\r
Specification:
\r
Item Type: Brushed Controller
\r
Material: ABS
\r
Color: As Pictures Show
\r
Brushed Controller:
\r
Size: (length x width) 8cm x 6.5cm / 3.1in x 2.6in
\r
Brushed motor controller for electric bike and scooter
\r
Rated voltage: DC 24 v
\r
Current limit: 28A
\r
Rated power: 500 w
\r
Matching motor: Brushed DC motor
\r
Under voltage protection: 20 V
\r

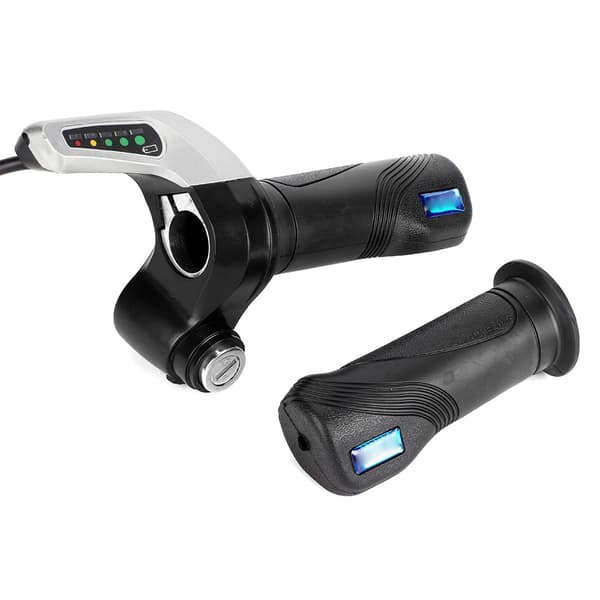

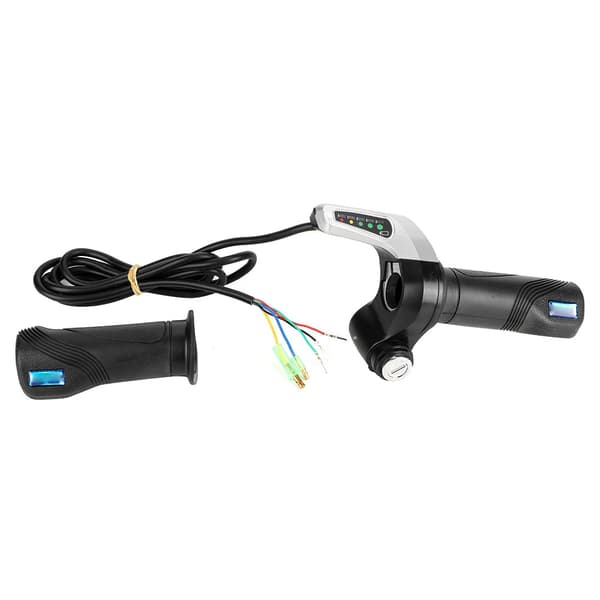

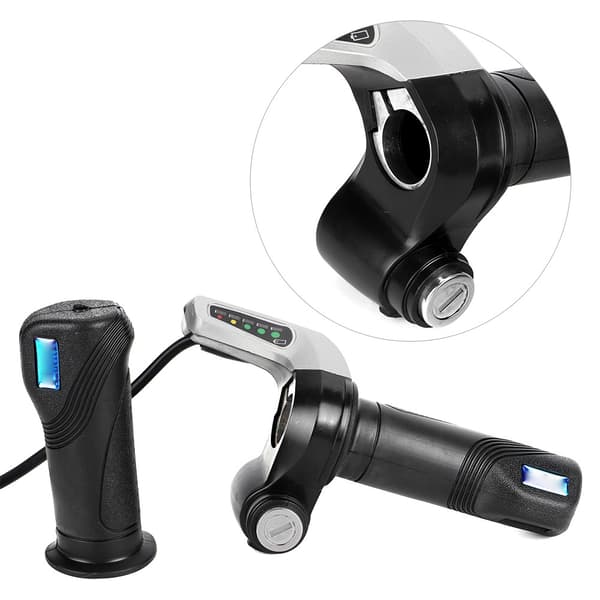

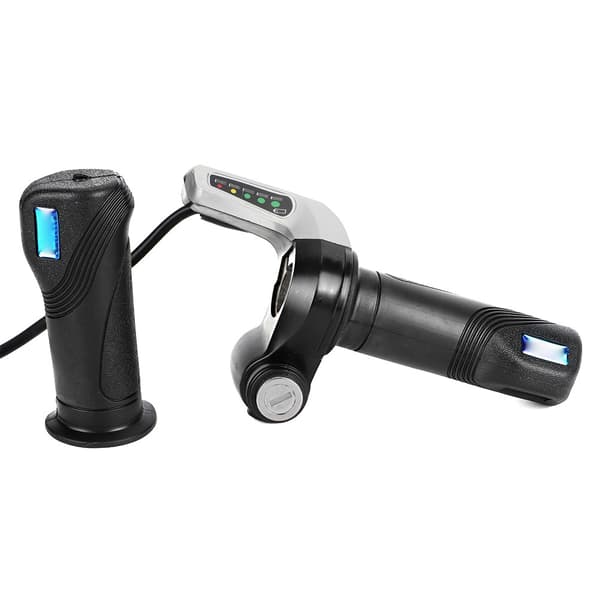

Accelerator
\r
Size: (length x diameter) 10cm x 2cm / 3.9in x 0.8in
\r
Throttle speed control for electric bicycle with power display, 5Led battery indicator.
\r
Throttle works with voltage: DC5V
\r
Speed adjustment signal: 0.8 V - 4.3 V
\r
Power display voltage: 24 V DC
\r
Power display:
\r
Normal: 23 V up, 3 Green LED
\r
Half: 23 V - 20 V, Yellow LED
\r
Empty: 20 V or less, Red LED
\r
Rotation angle: 0 ° - 70 °
\r
Working temperature: -20℃ - + 50℃
\r
Fits 7/8 inch (22.2mm) standard handlebars
\r
Cable length is approximately 59 inches (1.5 m)
\r
Quantity: 2 pcs (1 throttle and 1 normal grip (matching thumb grip)
\r
\r
Package List:
\r
1 x Brushed Controller
\r
2 x Throttle
\r
1 x Power Cable
\r
2 x Key
\r
\r
Controller Wiring Interface Definition:
\r
Battery: thick black (power negative) / thick red (power positive)
\r
Motor: thick yellow (motor negative) / thick blue (motor positive)
\r
Power switch: thin red (VCC) / thin blue
\r
Indicator: thin red (indicator power output) / thin black (indicator negative)
\r
Brake: thin yellow (brake signal) / thin black (power negative)
\r
Speed governor: thin blue (speed handle signal input) / thin black (power negative) / thin red (5V power positive)
\r
Charging port: thin red (charge input power positive) / thin black (power negative)
\r
Brake light: thin red (power positive) / thin black (power negative)
\r
\r

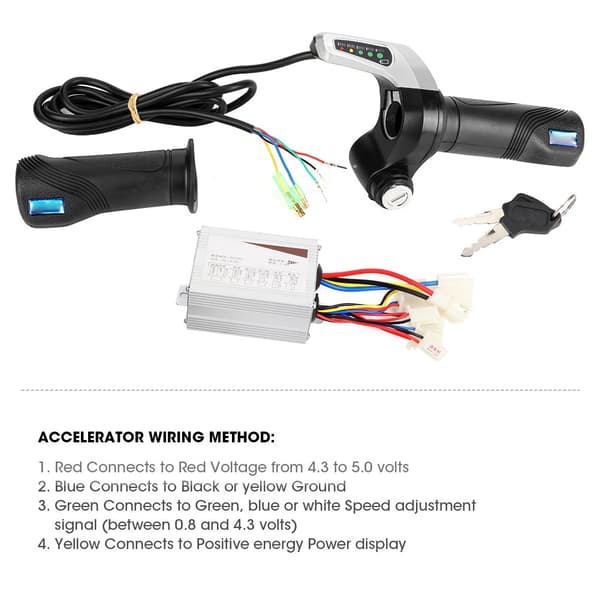

Accelerator Wiring Method:
\r
1. Red Connects to Red Voltage from 4.3 to 5.0 volts
\r
2. Blue Connects to Black or yellow Ground
\r
3. Green Connects to Green, blue or white Speed adjustment signal (between 0.8 and 4.3 volts)
\r
4. Yellow Connects to Positive energy Power display
