Fantastic design Universal RF 433Mhz wireless remote control. It is a duplicator that can clone other remote controls. A strong signal can pass through walls, floors, doors, panels, etc. It can be controlled within 50 meters in open area.

Wide coding range 2260, 2262 (such as PT2262, SC2262, HS2262, LX2262, HX2262, etc.), 1527 (EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527) PT2264, PT2240 (LX2240, LX2241, SCL2240), CS5211, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46N00F49E, various PIC chip manufacturers have different chip model prefixes, all will work fine, as long as the chip model numbers are the same.

Easy to use Three conditions must be confirmed before purchase. The original remote control works normally. The frequency should be 433.92Mhz. The code of the chip (coding chip) shown.

More flexibility There are 4 buttons on the remote control, which means you can clone 4 buttons. Each button works independently. The clone remote control can be reset and configured without limitation.

Wide application Products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can use the copy remote control to clone many remote controls. such as garage door, electric door, rolling shutter door, expansion door and electric curtain, fan, lamp, lighting, ventilation device, signal transmission and so on.

Package includes:

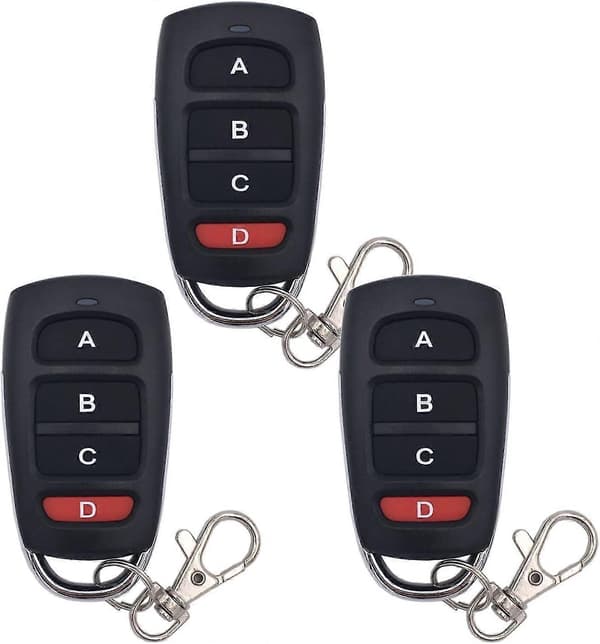

3x remote control cloners

Product manual

Parameter:

- RF frequency: 433MHz

- battery: 2x CR2016 (included)

- Button: 4 keys

- Transmission range: open space is more than 50 meters

Please confirm three conditions before purchasing.

1: The original remote control works normally.

2: The frequency: 433.92Mhz.

3: The code of the chip (coding chip) as shown below

2260,2262, 1527, PT2264, PT2240 (LX2240, LX2241, SCL2240), CS5211, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630, ULN2003

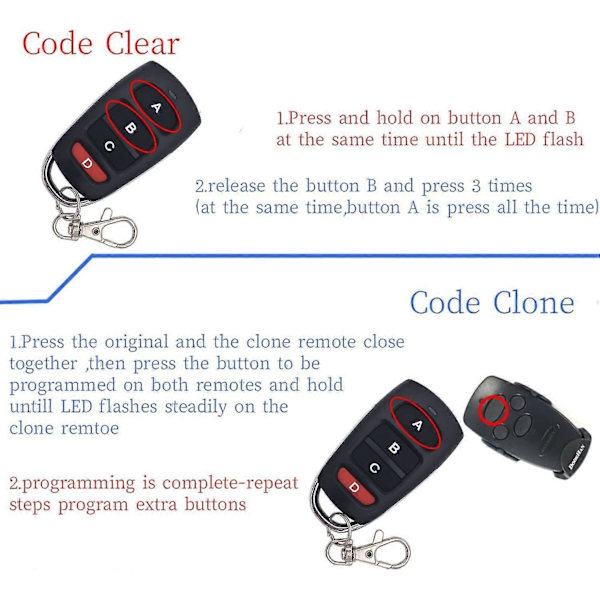

Reset:

Hold \"A\" and \"B keys\" pressed simultaneously --- The LED light flashes 3 times. And then release the \"B key\" (meanwhile the \"A key\" is still pressed) and click the \"B key\" 3 times --- The LED light flashes and then turns off. success.

Programming

1. Place the original remote control and the clone remote control in \"back to back\" position. Make sure they have direct contact. Either the two remote controls should be placed as close as possible (place the two remote controls on the desktop side by side with zero distance).

2. Press and hold a key on your original remote control and then press and hold a key on your cloner's remote control. Continue to hold until the LED flashes 2 times (Note: LED 2 flashes so you don't release the button) Then 3 flashes and then it lights up and you have cloned successfully.

If for some reason the clone does not exceed 2 flashes, it means that the signal is not passing, please move the remote control slowly up and down until you reach the point where it will pass.
