1. Uses a 12-bit high magnetic encoder angle sensor. Compared with the potentiometer, the angle is extended to 360 degrees and the resolution is increased by 4. Since there is a gap between the magnetic encoder elements and the magnet, there is no friction, so the service life of the servo is effectively extended.
2. The shell adopts the structural design of higher strength engineering plastic shell and double-axis low shell, optimizes the plane distance of the double-axis rudder plate, and the overall structure is more compact, which can make the product appearance more beautiful.
3. One-key calibration of the median, 360-degree installation in any position, one-key to the current position to the median, very convenient for installation.
4. The two-way feedback servo can feed back information such as position, load, speed, and input voltage in real time and fully control it.
5. When the voltage is 12V, the torque can reach 30kg.cm, which can be used to build four-legged, six-legged, robotic arms and other robot projects that require multiple steering gears and can easily handle people.

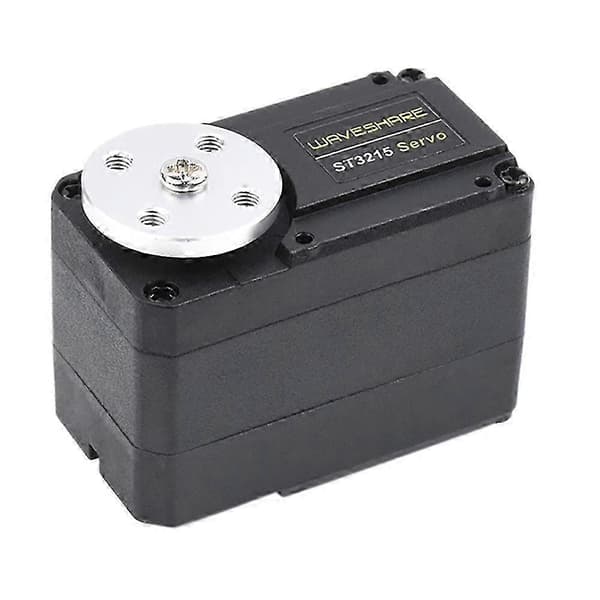

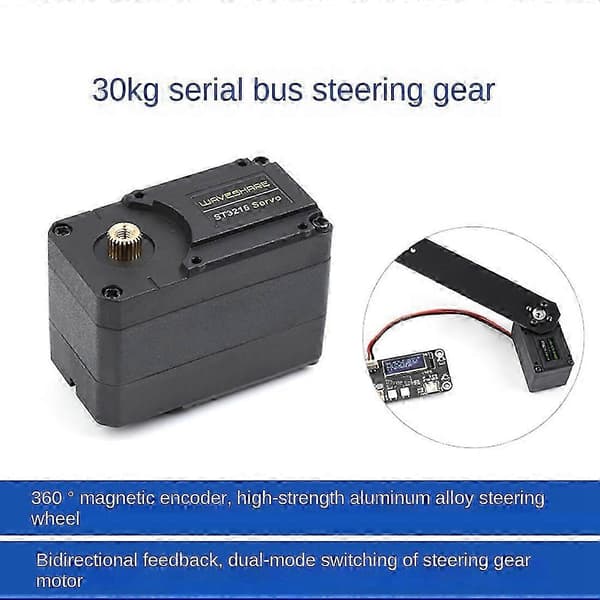

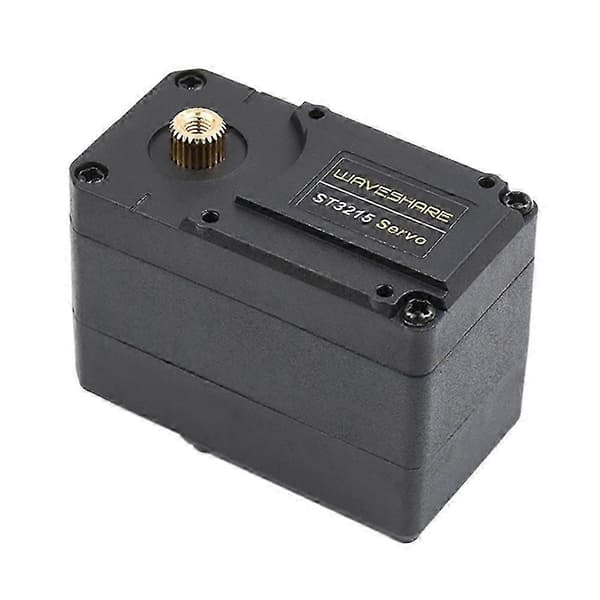

Product Type: ST3215 Servo Bus Servo
Product Torque: 30kg.cm@12V
Angle: 360 degrees (0-4095)
Position Sensor Resolution: 360 degrees /4096
Mechanism Limit Angle:
Working Voltage: 6~12.6V
Form: high metal
No-load Speed: 0.222sec/60 degrees (45RPM)@12V
Encoder Type: 360-degree magnetic encoder
ID Range: 0~253
Baud Rate: 38400bps~1 Mbps (default 1Mbps)
Feedback: Position; Load; Speed; Input Voltage
No-load Current: 180mA
Stall Current: 2.7A
Kt Constant: 11kg.cm/A
Colour: black
Material: Plastic + Metal
Size: 45.22 x 37.25 x 24.72mm

Package Contents:
1 x 30kg serial bus servo

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
