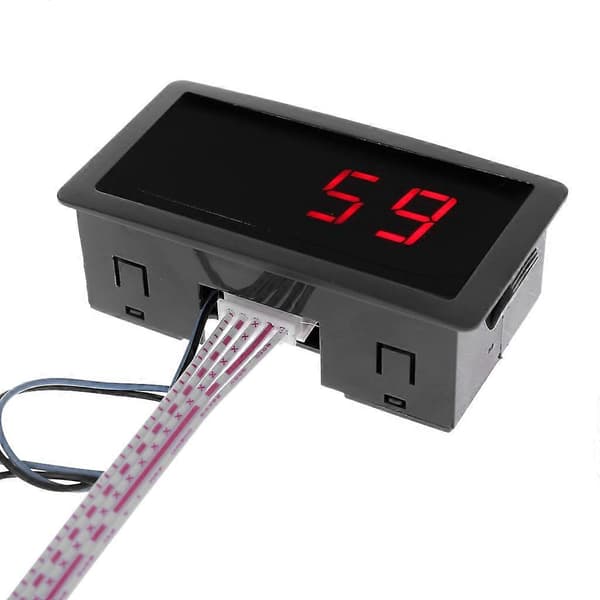

4-Digit LED Digital Counter 0-9999 Up/Down Plus/Minus Panel

brand new and high quality



Features:

This digital display counter has bright LED light, high accuracy, good stability, and easy installation.

The meter automatically retains the number when power off.

4-digit bright LED light, clear to read.

Good stability, high accuracy and easy installation.

The counting value is retained when power off.

Wide application to automation equipment and test equipment, etc.



Specification:

Working voltage: for DC 8-24V

for DC current: 30mA

Counting: Plus or minus

Counting range: 0-9999

Digit number: 4 digits

for Shell material: ABS

Product size: 79x42x25mm/3.11x1.65x0.98inch

Installation size: 72x38mm/2.83x1.5inch

LED display color: Red

Quantity: 1 Set

Wiring diagram:

Terminal 1: Positive

Terminal 2: Ground

Terminal 3: Signal ground

Terminal 4: Clear

Terminal 5: Switch pulse signal

Terminal 6: Blue wire for increment

Terminal 7: Black wire for decrement

Note: The 5-pin cable is used to connect to the counter.

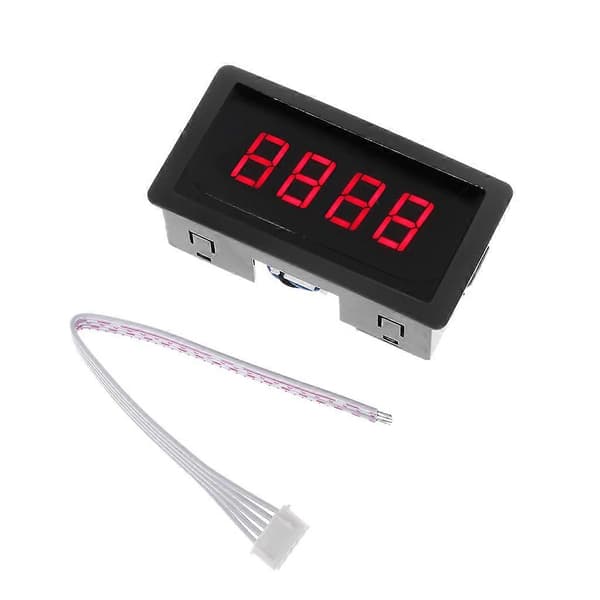

Package includes:

1 x Digital Display Counter

1 x 5-pin cable
