Description:
This capacitor is used for the start-up of AC motors with a frequency of 50Hz/60Hz, such as air conditioners, compressors, and motors. It is small in size, lightweight, heat-resistant, and explosion-proof.
Features:
1. Metallized polypropylene film roll structure improves product performance and makes it durable.
2. Reliable insulation performance, excellent electrical characteristics, and safe explosion-proof devices.
3. Heat-resistant, low leakage, low loss, and low impedance.
4. Current with good shock resistance, strong overload capacity.
5. Suitable for starting single-phase motors with a frequency of 50Hz and 60Hz, such as air conditioners, compressors, and motors.
Specifications:

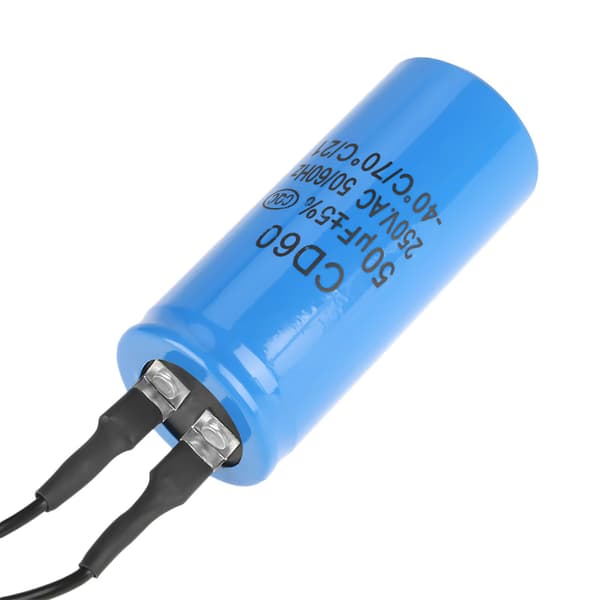

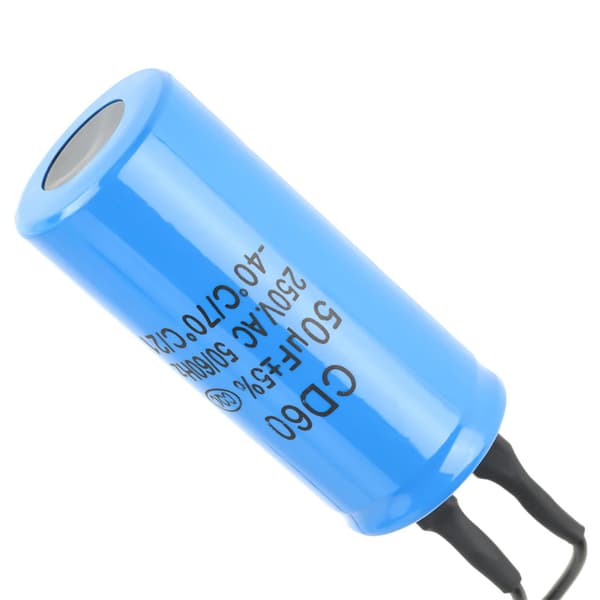

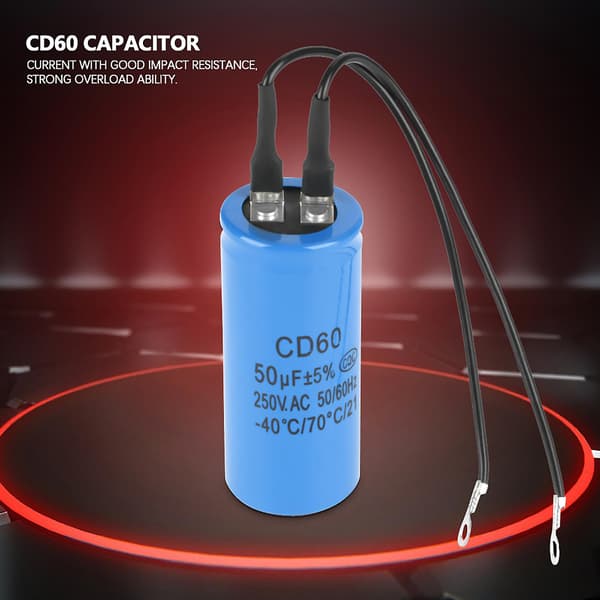

Model: CD60
Shell material: plastic
Dielectric material: metallized polypropylene film
Capacitance: 50uF
Tolerance: ±5%
Rated voltage: 250V AC
Frequency: 50 / 60Hz
Color: blue
Weight: Approx. 91g
Package includes:
1 x Capacitor
Note:
Due to the difference between monitors and the light effect, the picture may not reflect the actual color of the item. Thank you for your understanding.
Please note that the new type and the old type of this product will be sent randomly, and make sure you do not mind before ordering.
