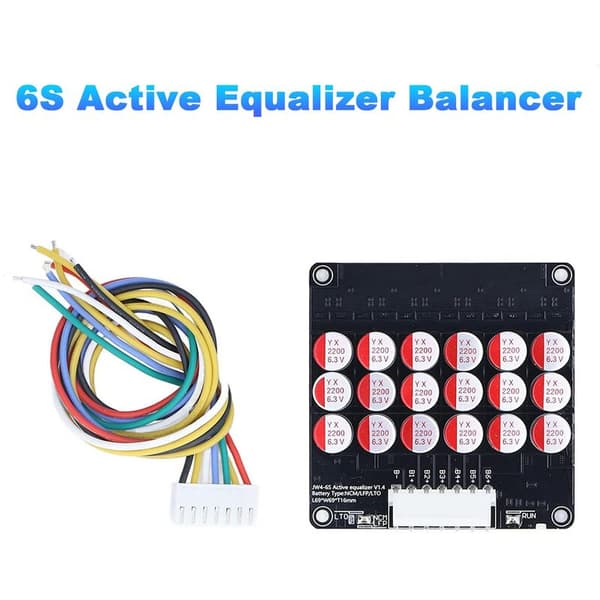

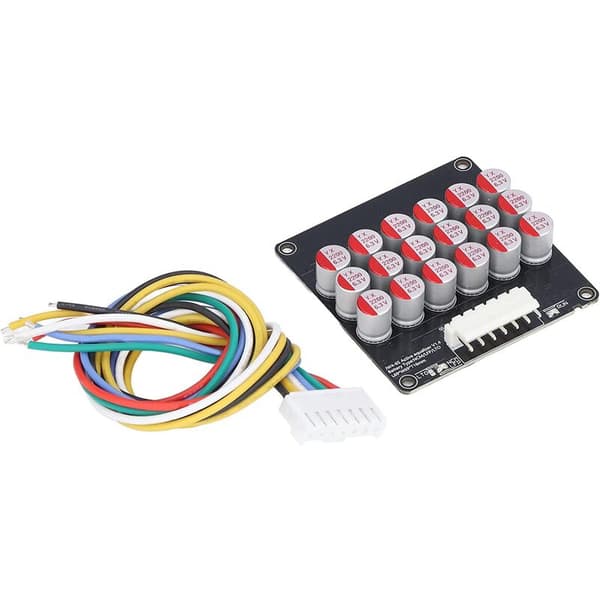

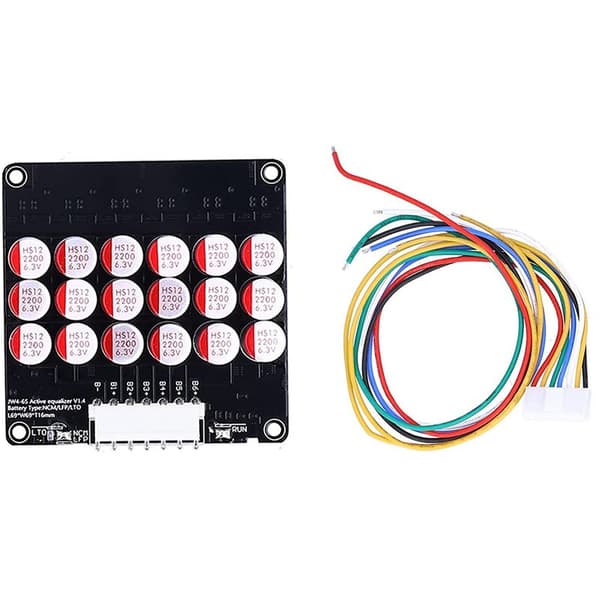

Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate. working voltage, the capacitor adjustment transfers the charge carrier, and the balance board is connected to the battery to start the balance work.
It adopts the ultra-low internal resistance all-MOS, 2OZ copper thickness PCB, and the balance current is 0-5.5A. The more balanced the battery, the lower. Reserve the wiring position for the sleep switch, the sleep current is less than 0.1mA, and the equalization voltage accuracy is less than 5mV!
The quiescent current is about 12mA, and it is recommended that the battery capacity is 30-300AH for batteries!
With undervoltage sleep function, the voltage automatically stops and enters sleep mode when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
The appearance and color of different batches of products may be different, which does not affect the use

Accessories Type: Battery Accessories
Model Number: Active BMS Board
Balance: 5A Active Balancer
String: Active Balancer
Type: Active Balancer Fit Capacitor
Battery: Lifepo4 Lithium LTO Battery Active Balancer
Type: 6S
Color: Black
Material: PCB

Package Contents:
1 x Lithium Battery Balance Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm. L'erreur de mesure permis est de +/- 1-3 cm.
