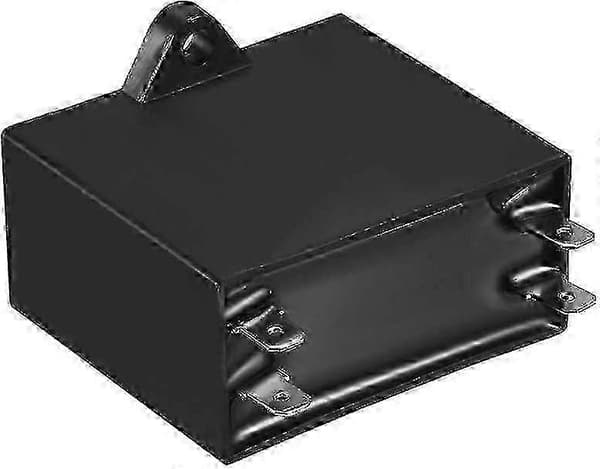

[Material] - Made of metallized polypropylene film with plastic shell

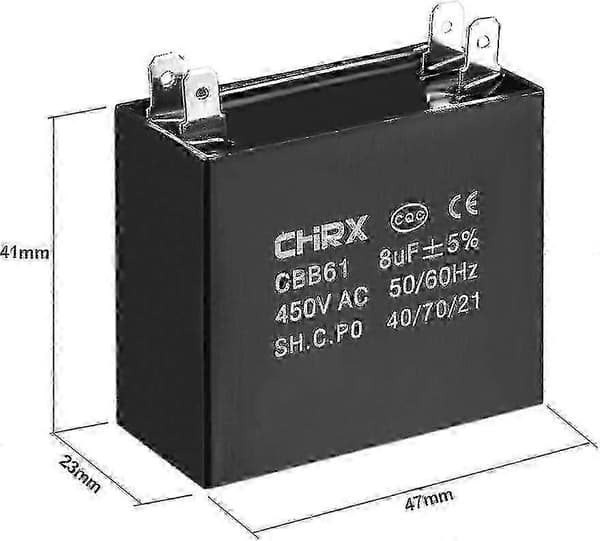

[Specification] -Rated Capacitance: 8uF; Tolerance: 5%; Rated Voltage: 450V AC; Protection Size Size: 47x23x41mm/1.9x0.9x1.6inch; Rated Frequency: 50/60Hz; Temperature Range: 40/70/21







[Working Environment] - This CBB61 capacitor is used for the starting and operation of single-phase motor in 50Hz/60Hz AC power supply system







[Application] - CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan. air, the pump, the motor, the generator etc.







[Note] - If the ceiling fan works slower or cannot work or cannot work at different speeds as before, first check the capacitor on the CBB61 ceiling fan. The capacitor may be burned out or weak, you need to replace it with a new one











Features: This CBB61 running capacitor has low loss, excellent electrical performance and long service life. CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc. Note: If the ceiling fan slows down or cannot work or cannot run at different speeds as before, check the CBB61 ceiling fan capacitor first. The capacitor may be burned out or weak, you need to replace it with a new one. Specifications: Model: CBB61 Material: Polypropylene Film Rated Voltage: 450V AC Rated Capacitance: 8uFTolerance: moremn; 5% Rated Frequency: 50/60Hz Probe End: Double Insert Dimension: 47*23*41mm Climate Class: 40/70/21 Operating Temperature Range: -40~70 Package Includes: 1 X 450V AC 8uF Capacitor
