Features:

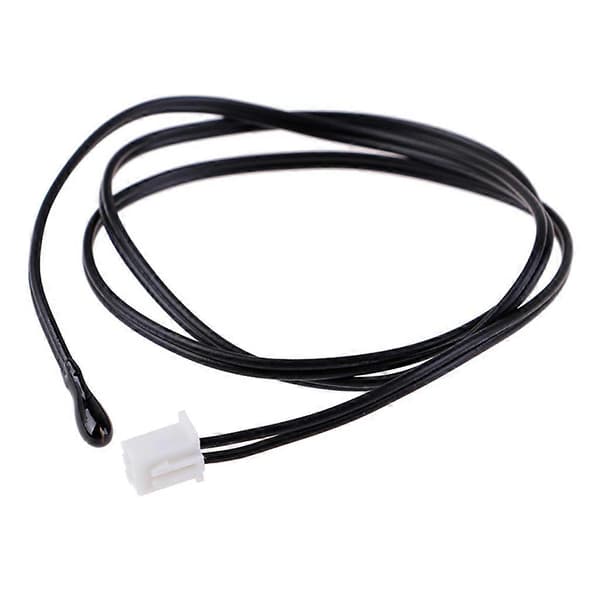

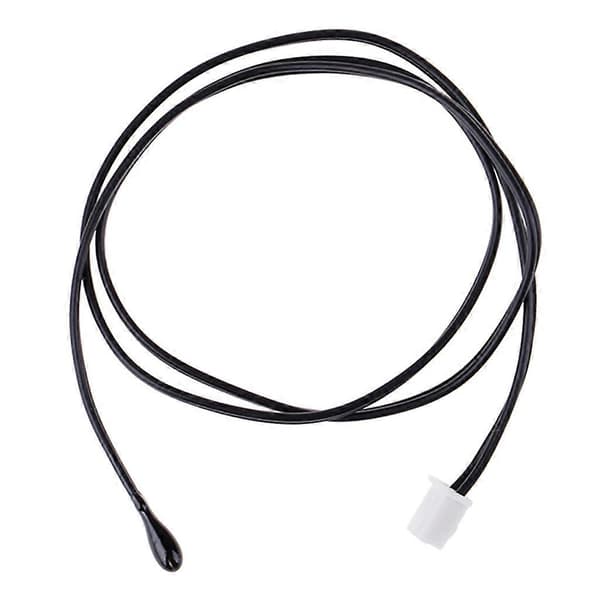

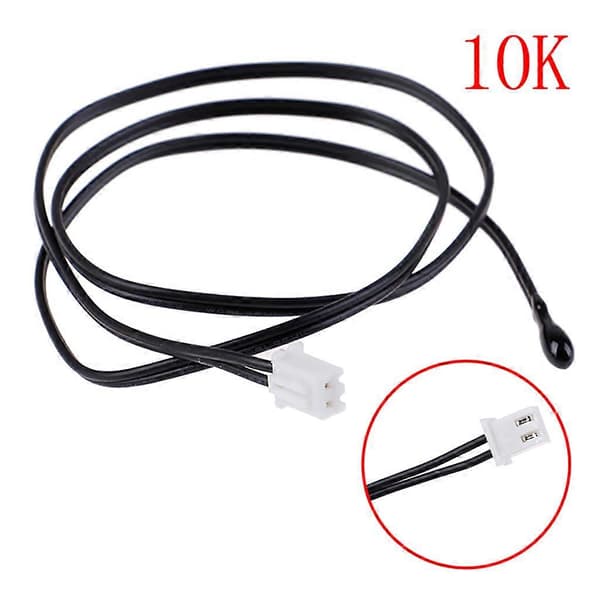

1.High sensitivity and fast response. 10K in water drop shape, 500mm in line length, xh-2y. Easy installation, high sensitivity, fast response.

2.Applicable category: sensor temperature sensitivity response fast.

3.Waterproof stable performance, used in water heaters, boilers and other measurement temperature environments.

4.Wide operating temperature range, good stability and high reliability. Can provide products with different R and B values, with strong interchangeability and high precision.

5.Wide use. Temperature measurement and control of gas water heaters and direct-acting water heaters and other household appliances, refrigerators and medium and low temperature drying ovens, incubators and other occasions.

Package includes:

1 pc 10K probe sensor

Specifications:

Nominal resistance: R25 (25C): (commonly used) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.

Resistance accuracy: 1%, 2%, 3%

B value R25/50: (commonly used) 3435K, 3600K, 3950K, 3990K, 4100K, 4200K, etc.

B value accuracy: 1%

Operating temperature range: -40+150

Power dissipation coefficient: 5 mW/ (in static air)

Maximum rated power: 45mW

Thermal time constant: 7S (in static air)

Temperature coefficient of resistance: -2-5%/

Insulation performance: 500V DC test single insulation resistance 100M

Withstand voltage performance: 1500V AC, 5s, 0.5mA without breakdown

Cable length: Approx. 50cm/19.69in

Weight: Approx. 20g

note:

1.Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you bid.

2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
