Features:

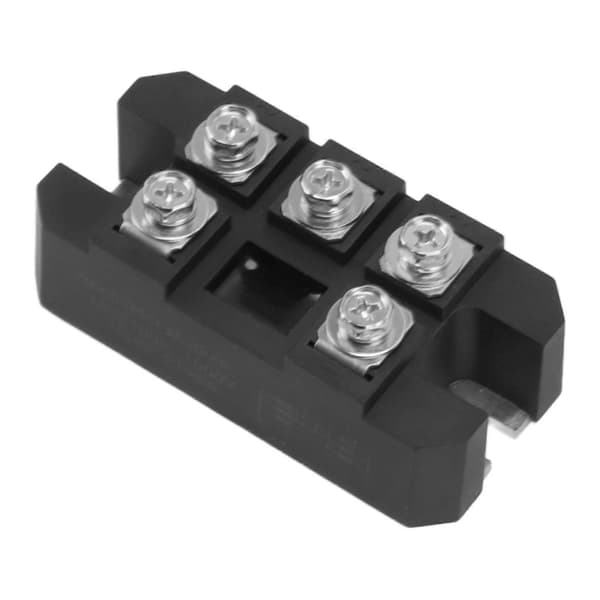

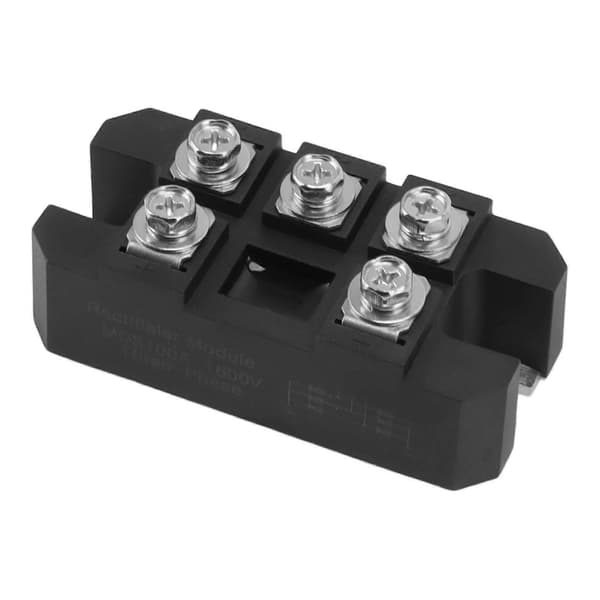

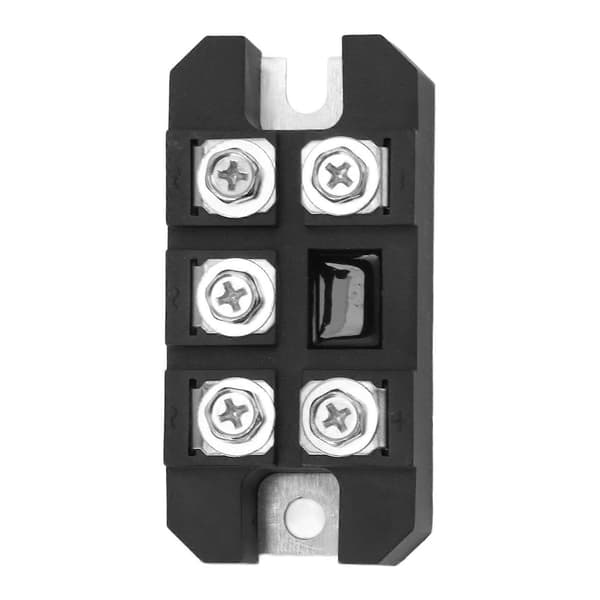

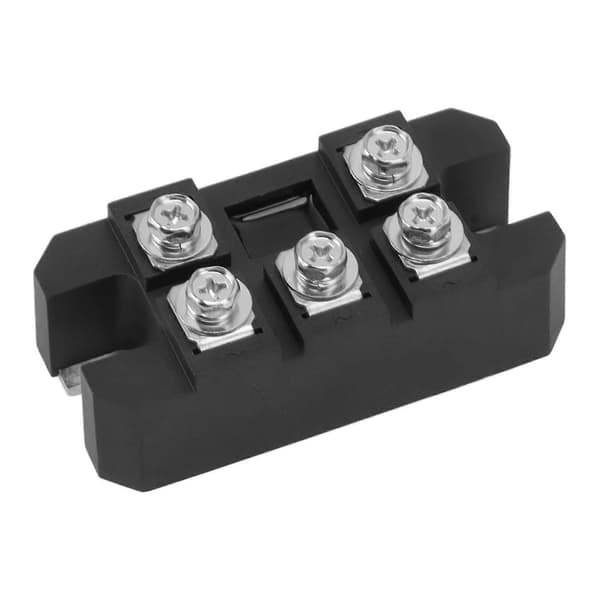

1. Reliable Function: The power diode MDS 100A bridge rectifier module is designed for three-phase full-wave rectification and has six diodes connected in a three-phase bridge configuration. 2. Better Design: High in both reverse withstand voltage and surge current, the output DC current is 100A and the maximum voltage can reach up to 1600V, very safe and reliable throughout the entire working process. 3. Fine Workmanship: Vacuum sintering is used for the chip and substrate, which effectively improves AC isolation and withstand voltage, and also enhances the heat dissipation effect of the chip. 4. Wide Application: Can be used in PWM inverter power input, battery charging, machinery, metallurgy, automotive, electric power, electroplating, power supply, electrochemistry, electric drive, and so on. 5. Quick to Install: 5-terminal design along with a light weight and a compact size can greatly simplify the installation of this bridge rectifier.

Specification:

Item Type: Bridge RectifierMaterial: ABS steel. Forward Current: 100AReverse Repetitive Peak Current: 8AForward Peak Surge Current: 1000ARated Temperature: -60 ~ 175Weight: 176 g / 6.21 oz(approx)

Package List:

1 x Bridge Rectifier
