【Strong & Safe to Use】The electric magnetic lock is mainly adopted carbon steel material, latch hook can bear 150kg pulling force.
【Excellent Function】It is energy-saving and has a long lifespan. Shockproof, anti-lever and anti-theft. Built-in unlocking status detection.
【Compact and Easy Installation】The product is small in size, easy to install, no left, right, front, back limitation, and allows mechanical lash-up unlocking position.
【Self Elastic Design】Elasticity adjustable, suitable Compatible with weight 0.5~4kg door.
【Wide Range of Applications】The electronic lock is suitable Compatible with centralized control cabinets such as cabinets, mailboxes, lockers, logistics cabinets, filing cabinets, meters, cabinets, vending machines, mobile phone cabinets, shoe cabinets, etc. Widely used
in schools, community logistics, hotels, factories, bathing centers, banks, supermarkets and other places.
Electromagnetic lock is a mechanical lock controlled by the relay. The lock works when the circuits disconnect, and it unlocks when power is on.
Specifications:
Main Material: Carbon steel
Surface Treatment: Plated electrophoretic paint (neutral frog experiment over 500 hours)

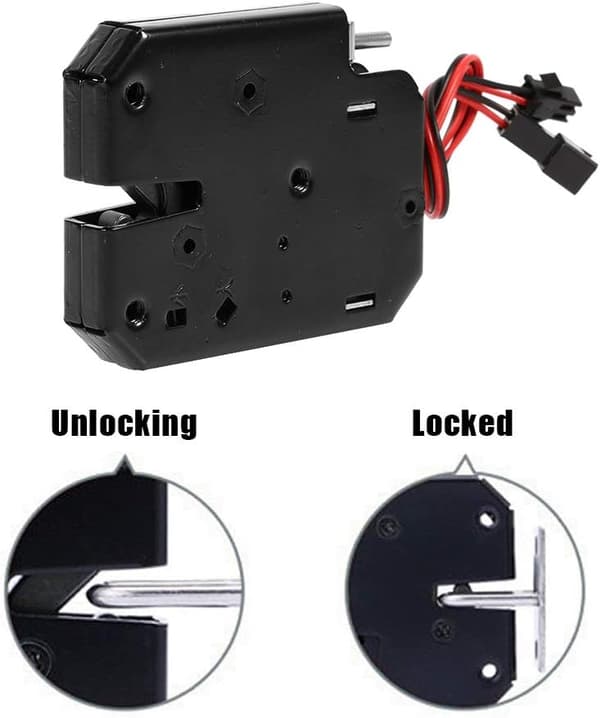

Working Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)
Electrical Parameters: DC 12V 2A
Mechanical Life: Under design load Compatible withholding, about 500,000 times
Electromagnet Life: Under rated working Compatible withholding, more than 1,000,000 times
Lock Hook Strength: 150kg force (no permanent deformation)
Ambient Temperature: -40℃~60℃

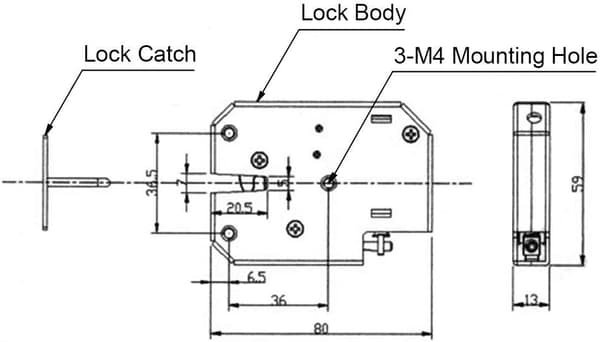

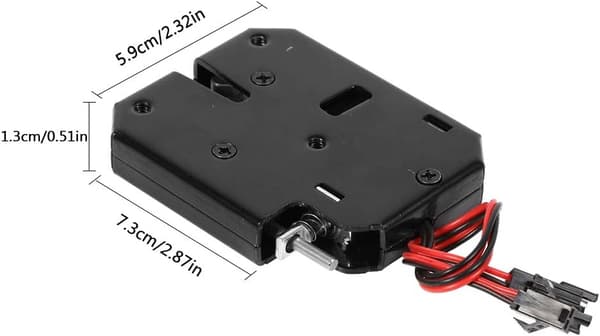

Size: Approx 5.9 x 7.3 x 1.3cm / 2.32 x 2.87 x 0.51inch
Package Weight: 170g
Package Included:
1 x Electric Lock (with detection switch)
