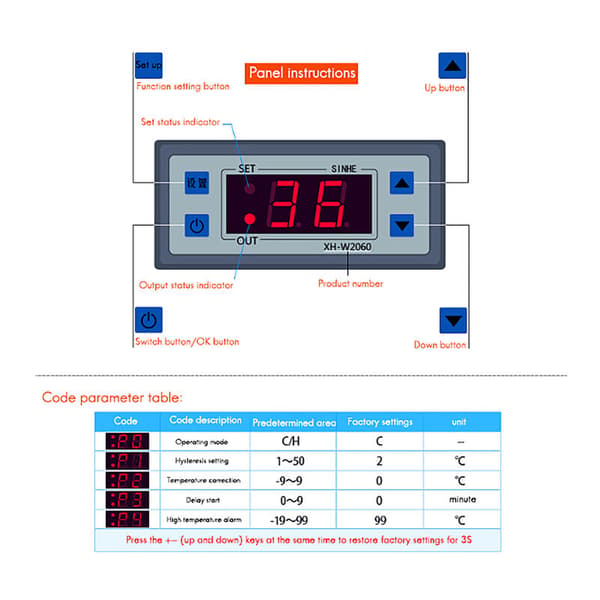

1. SET button, normally press - SET light is on. The stop temperature number does not flash, you can set the stop temperature with the up and down buttons, long press to enter the internal setting menu
2. Turn on the key. Normally, press it once and there is no change. Press and hold for 5 seconds to turn off the thermostat. When it is off, press it once to turn on the thermostat. In internal settings, click OK to modify the value and return
3. Adjust the knob upwards, press the SET button normally, and press the SET button to set the stop temperature. Long press for 3 seconds to stop the temperature number from flashing, and the up and down keys can directly set the stop temperature. In internal settings, press once to increase a value and long press to increase the value quickly.
4. Press the button downwards, normally press - the SET indicator light is on, press the SET button to adjust the hysteresis, long press for three seconds, the hysteresis number flashes, the up and down keys directly set the hysteresis, in the setting, press once to decrease the value by one digit, long press to quickly decrease the value.

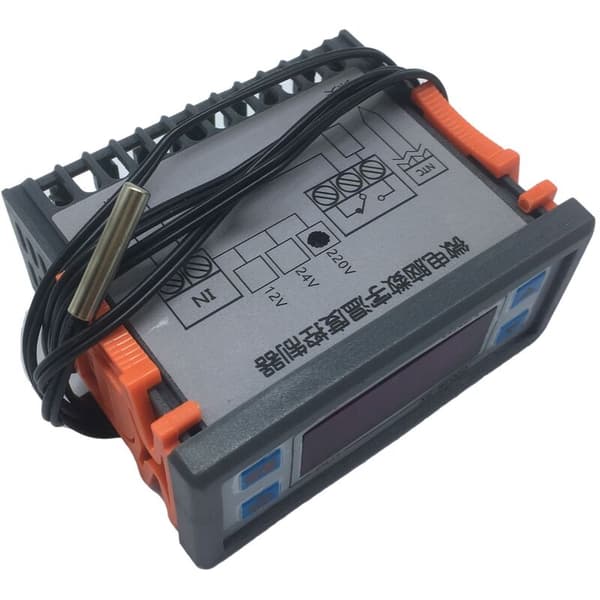

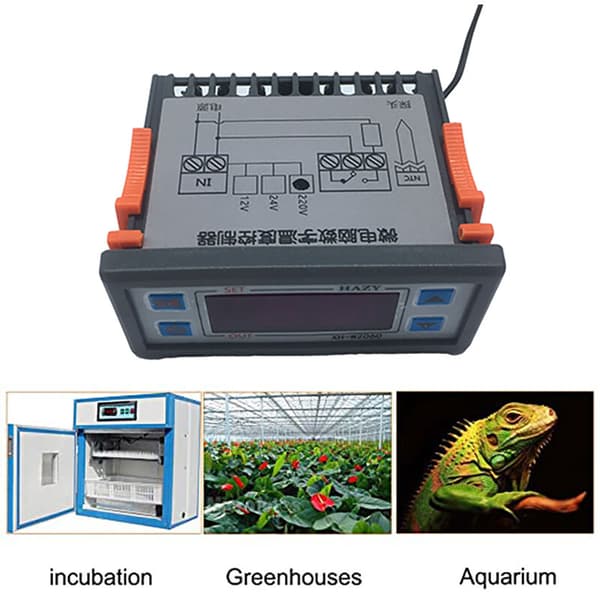

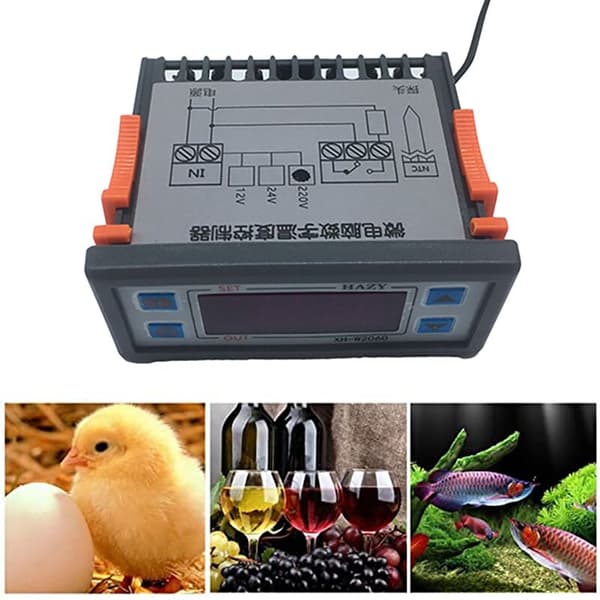

Product: Digital display integrated cabinet thermostat
Product model: XH-W2060
temperature measurement: -19℃~99℃
Control: -19C-99℃
Precision temperature control: 1 ℃
Measurement input: NTC1OK waterproof probe L = 1 meter
Update frequency: 4 times per second
Operating environment: -30-60℃, humidity 20% - 85%

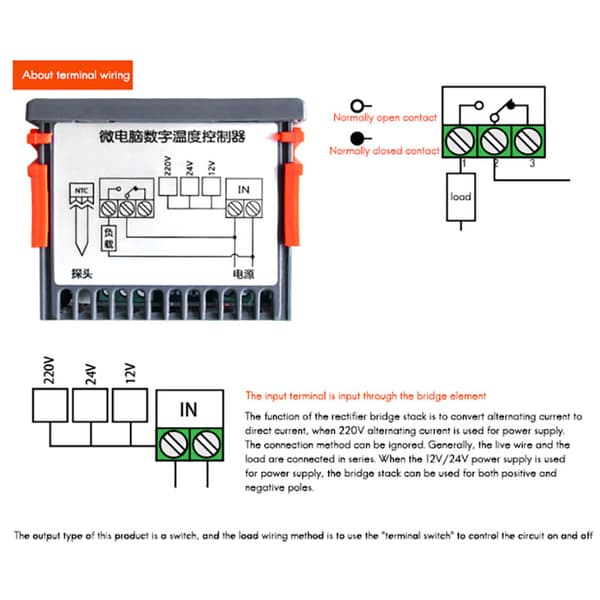

Input: 12V
Output type: Maximum relay output 10A
Hole size: 71x29mm
Other functions: power-off memory, status memory, temperature correction, delayed start
color: black + orange
Material: ABS + metal
Size: 77x62x34.5mm

Package Contents:
1 x Thermostat

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
