1. High-performance digital coreless standard servo, high-precision metal gears provide higher accuracy. 2. Made of premium materials, safe and environmentally friendly, firm and stable, has a long service life. 3. Maximum torsion is up to 10kg.cm (7.4v), good performance, high working efficiency, very practical. 4. Suitable for RC helicopter, airplane, etc. Perfect replacement for the old or broken one, easy to install. 5. Working speed (6.0V): 0.067 seconds / 60° no load, working speed (7.4V): 0.055 seconds / 60° no load.

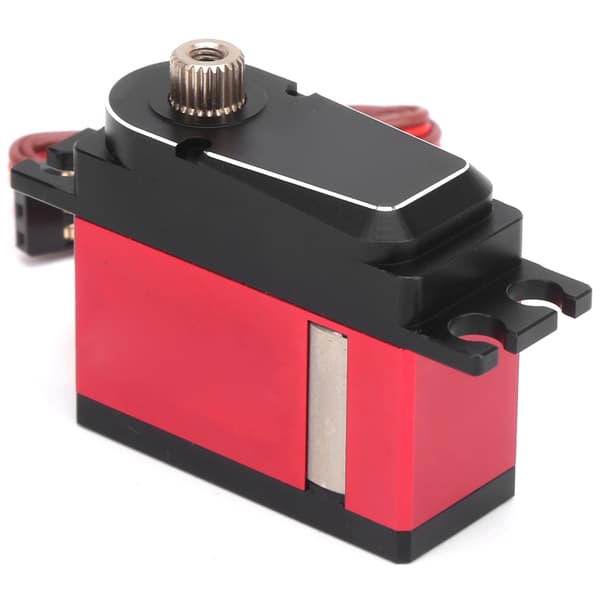

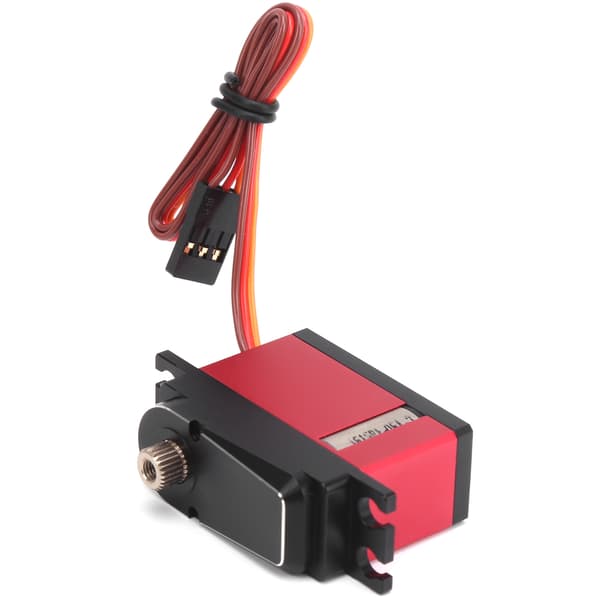

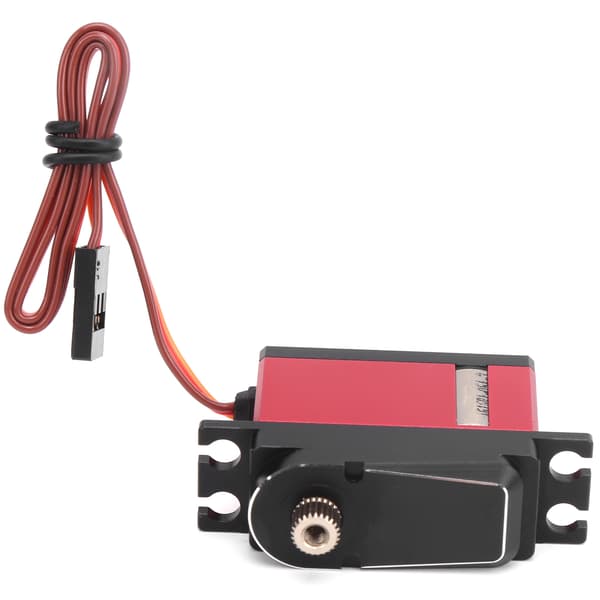

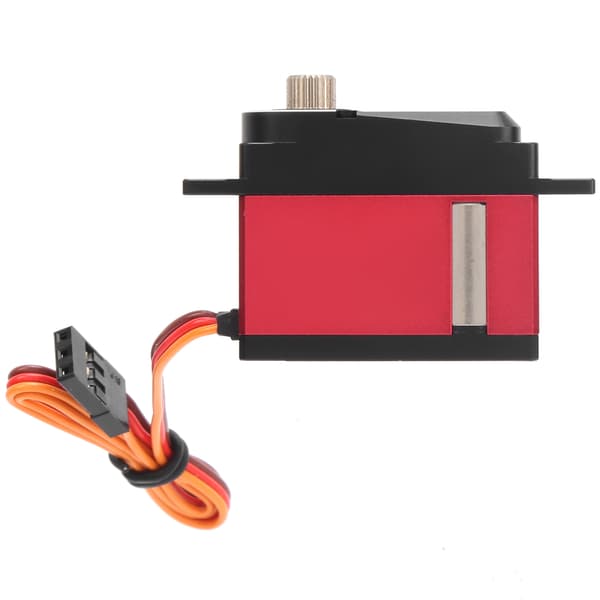

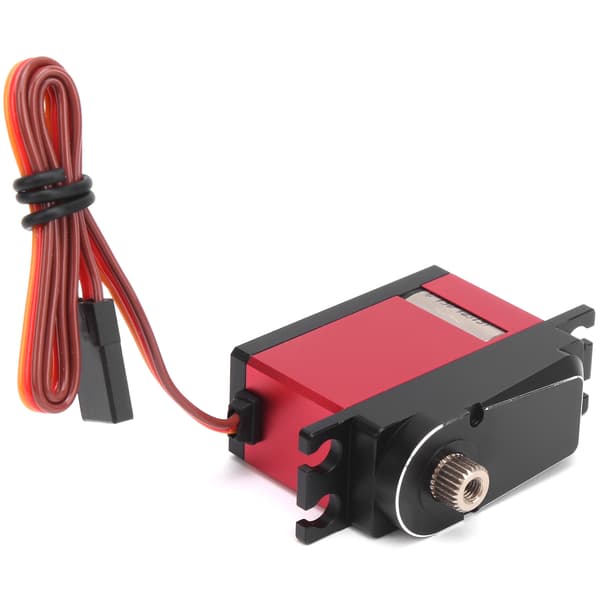

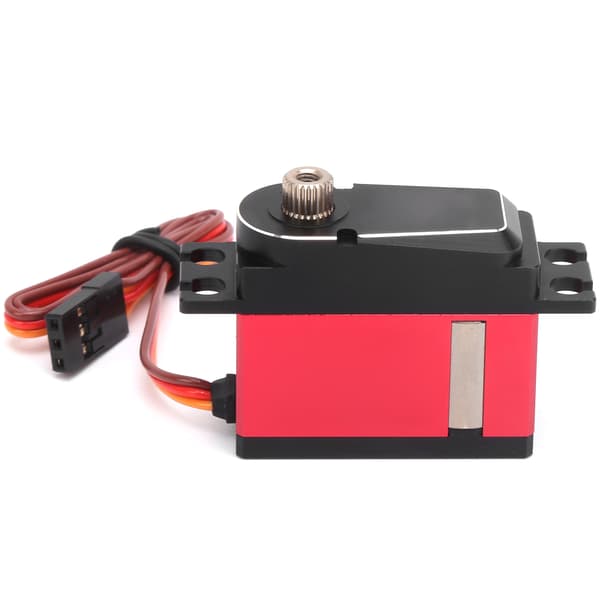

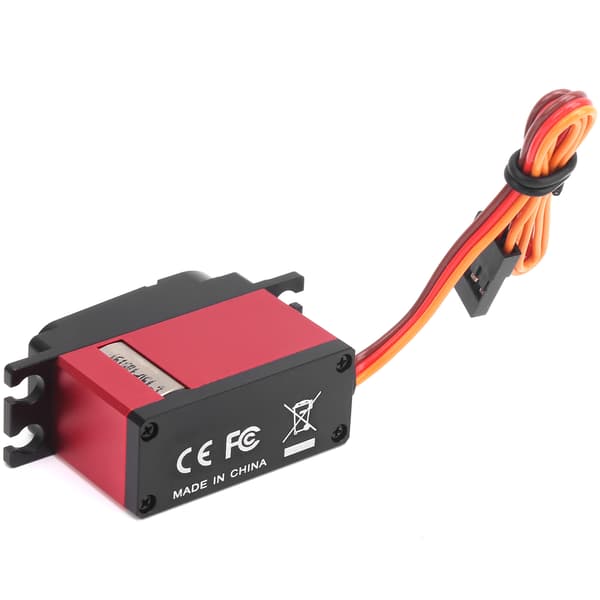

Item Type: Servo
Model: CYS-S3215
Material: Metal
Color: Red
Dead Zone: 2μs
Working Voltage: 6.0~7.4V
Working Speed (6.0V): 0.067 seconds / 60° no load
Working Speed (7.4V): 0.055 seconds / 60° no load
Stall Torsion (6.0V): 9kg.cm
Stall Torsion (7.4V): 10kg.cm
Stall Current: 2.6A / 3.2A
Connector Cable Length: Approx. 250mm / 9.8in
Gear Type: Metal
Quantity: 1pc
Application: RC helicopter, fixed wing, etc.
Product Size: Approx. 35 x 35 x 15mm / 1.4 x 1.4 x 0.6in (excluding left and right wings, cables)
Installation Instructions:
1. Install the servo on the servo base first, without installing the servo arm or servo protection. Only fix the servo to the frame. Then connect the servo to the receiver, usually the CH1 or ST port.
2. After the servo is fixed, turn on the remote control and turn on the ESC after setting it, and then the servo will stop at a fixed position.
3. Without turning off the remote control and servo, install the servo protection or servo arm on the steering gear output gear.

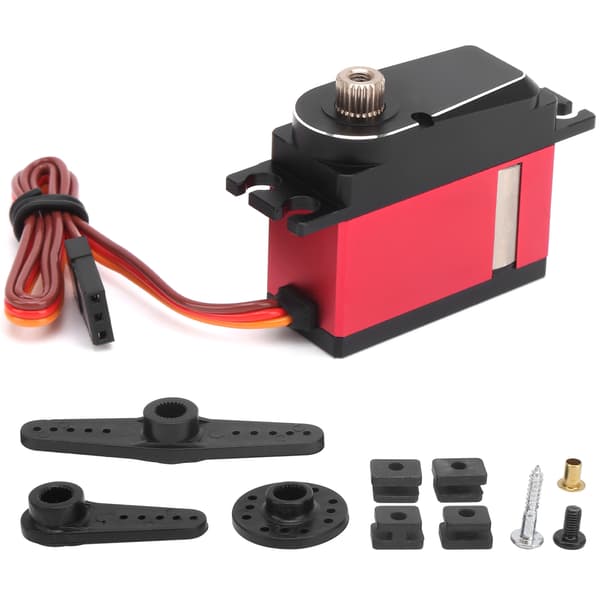

1 x Servo
3 x Servo Arm
6 x Screw
4 x Screw Cylinder
4 x Sponge Pad
1 x Manual
