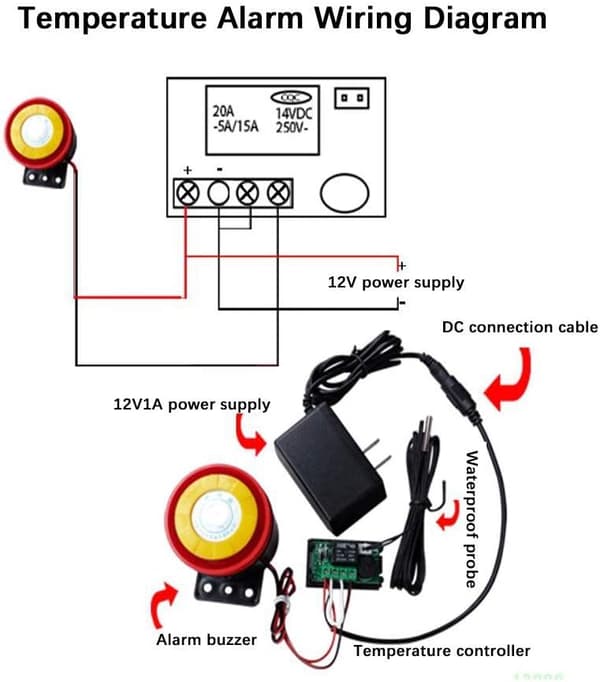

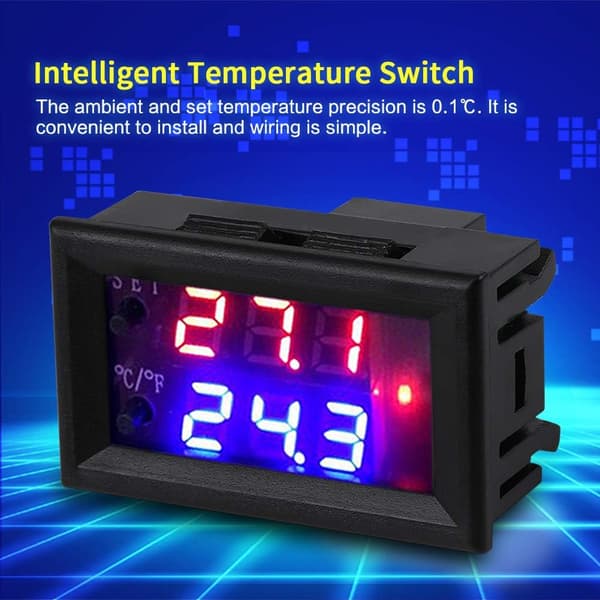

User: Temperature display and control can be set to 0.1. Easy installation and simple wiring.
High-temperature protection: wide temperature measurement range from -50 to 110, supports high-temperature protection.
Easy to install: can be installed directly or quickly in industrial panels.
Applications: widely used in incubation, equipment chassis, air conditioning, temperature control protection, and other fields.
Electronic Thermostat Digital Display Intelligent Thermostat Switch Adjustable Temperature Controller Microprocessor Digital Temperature Control Products.
Brand: Fgao
Electrical features:
Temperature measurement range: -50°C ~ 110°C Resolution: 9.9-99.9 0.1°C other temperature range 19C
●Measurement accuracy: +0.1°C
.Control accuracy: 0.19C
.Backlash accuracy: 0.1°C
●Refresh rate: 0.5S
●High-temperature protection: 0-110C
Input voltage: DCI2V
Measurement input: NTC (10K0.59%) waterproof sensor
Output: one way 20A relay
Environmental requirements: 10%C- 60°C Humidity 20% 859%
Specifications: 48mm (length) width 29mm depth: 32mm
Hole size: 46* 26.5mm
Power consumption of the whole machine: quiescent current <35MA Pickup current: <65MA
Power supply: 12V200MA
