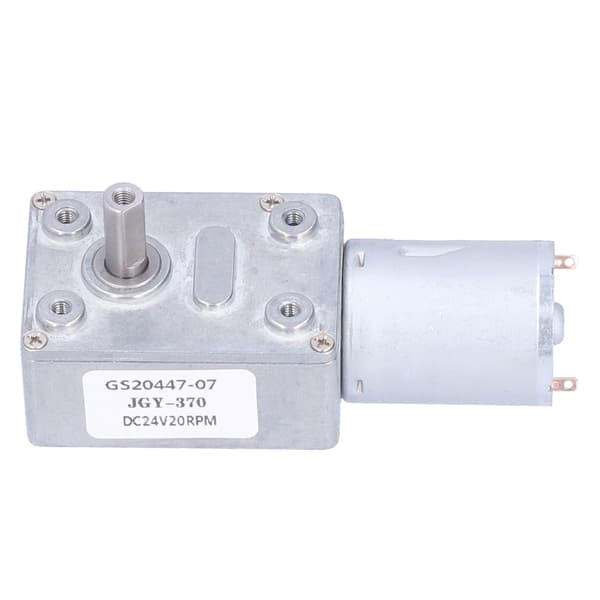

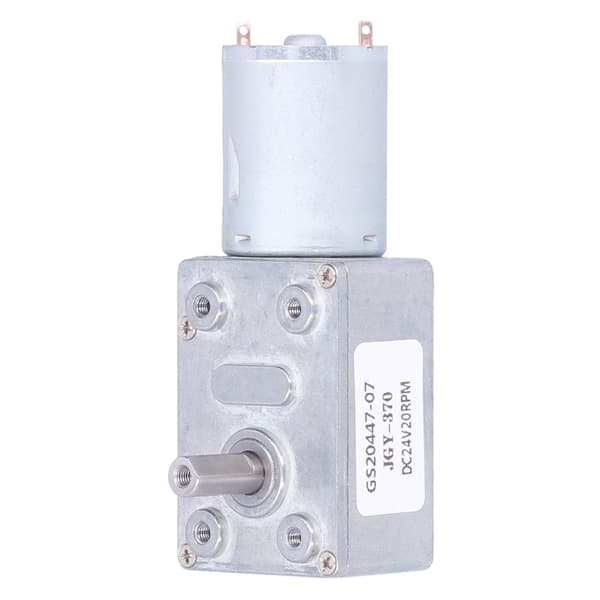

1. Uses high-precision all-metal gears, low noise, zinc alloy die-cast alloy pressure shell, stainless iron hardened output shaft. 2. Turbine deceleration, all metal, can cooperate with the regulator to control the speed, and the motor can be forward and reverse. 3. The motor has a power function, and the maximum load capacity of the gear is about 30 kg. 4. This worm gear motor has low noise, high torque, and fine craftsmanship extends the life of the motor. 5. Suitable for electronic locks, range hoods, display stands, robots, smart devices, barbecue machines, live machines, and entertainment equipment.

Item Type: Worm Gear Motor Material: Iron, Plastic, Zinc Alloy Motor Parameters Voltage: DC 24V Power: DC 12-30V

Technical Speed Controller Parameters Model: CCM2 Working Voltage: DC10V-30V Power: 12Vx3A=36W, 24Vx3A=72W greater than 24V, max 120W Rated Current: 3A Maximum Current: 5A PWM Pulse Width Adjustment System Range: 5%-95% Potentiometer: Resistance value B10K, Wire length Approx. 20cm/7.9in, opening approx. 8mm/0.3in Output Voltage: Approx 0-100% of input voltage Speed Controller Size: Approx. 74x47x28mm / 2.9x1.9x1.1in Potentiometer is used for speed control Forward and reverse controllers are used to control forward, reverse, and stop

1 x Motor

1 x Regulator

1 x Forward and Reverse Switch

1 x Cover

1 x Washer

1 x Bracket

4 x Mounting Screws
