This series of ID card readers uses advanced RF receiving circuit design and industrial embedded microcontroller, combined with an efficient decoding algorithm, to complete the reception of 64-bit Read-Only uem 4100 compatible type ID cards. It has the characteristics of high reception sensitivity, small working current, simple DC power supply, low price, and high performance. Built-in buzzer and LED indicator, simple and clear. Convenient installation, complete function, wide range of applications, it is the ideal choice for all kinds of large-scale access control systems.

Features:

1.High reception sensitivity, small working current, and high performance.

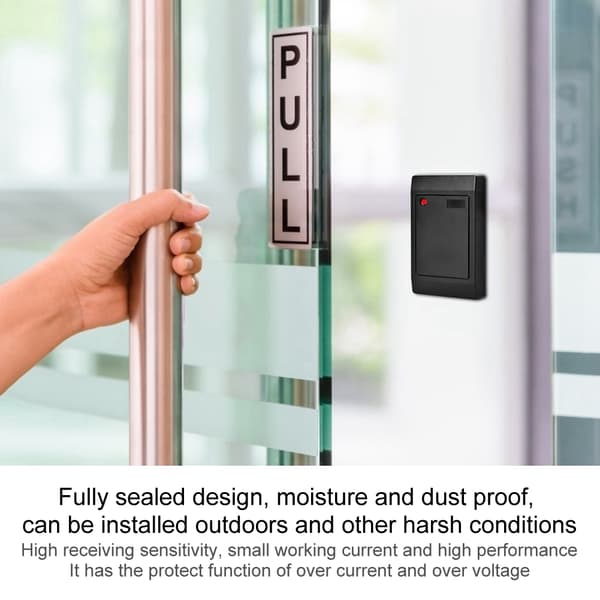

2.Fully sealed design, moisture-proof and dust-proof, can be installed outdoors and other harsh conditions.

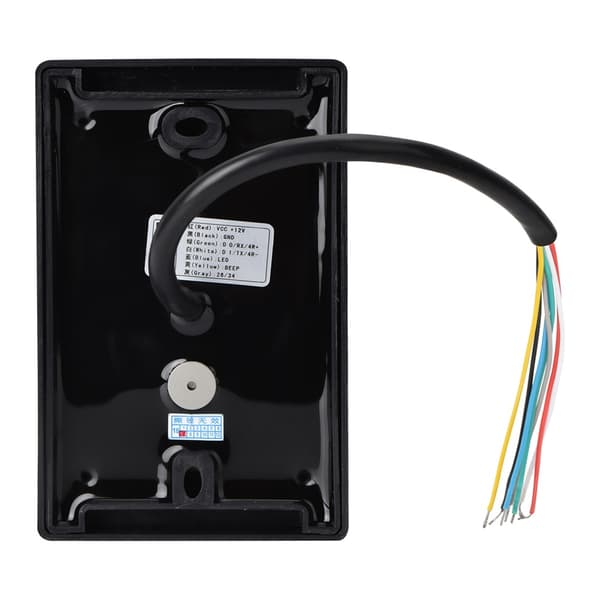

3.With Wiegand 26 to Wiegand 34 conversion, just connect the gray wire to ground.

4.It has the protection function of overcurrent and overvoltage.

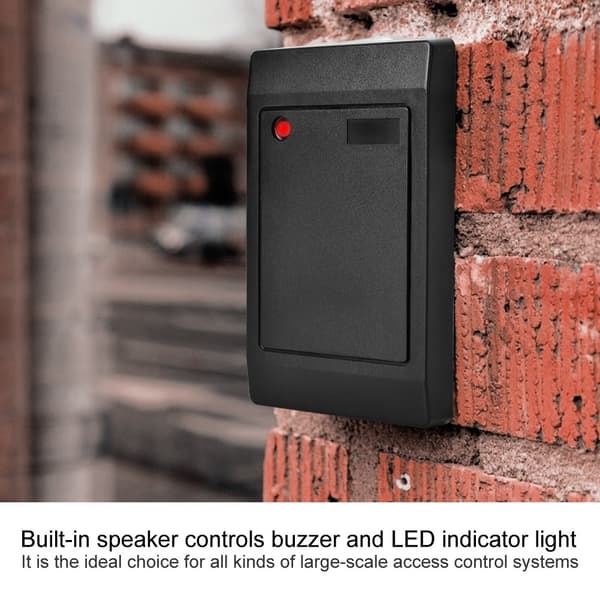

5.Built-in speaker controls buzzer and LED indicator light.

6.It is the ideal choice for all kinds of large-scale access control systems.

Specification:

Condition: 100% Brand New

Housing Material: PVC

Color: Black

Card Type: ID Card

Output Format: Wiegand 26bit (standard output), Wiegand 34bit (just connect the gray wire to ground)

ID Card Reading Distance: 5-18cm

Operating Frequency: 125KHz

Response Time: <0.2s

Card Reading Interval: <0.5s

Working Voltage: DC +9V ~ +16V (DC 12V recommended)

Static Current: <50mA

Dynamic Current: <70mA

Working Temperature: 25 ℃ ~ 75 ℃

Working Humidity: 10% ~ 90%

Built-in Speaker: Buzzer

Waterproof and Dustproof: Yes

Built-in Antenna: Yes

Anti-static Protection: 15KV

Overcurrent and Overvoltage Protection: Yes

Connection Distance: Wiegand: ≤100m

Package Size: 14 * 9 * 4cm/5.5 * 3.5 * 1.6in

Package Weight: Approx. 150g/5.3oz

Package List:

1 * ID Card Reader
