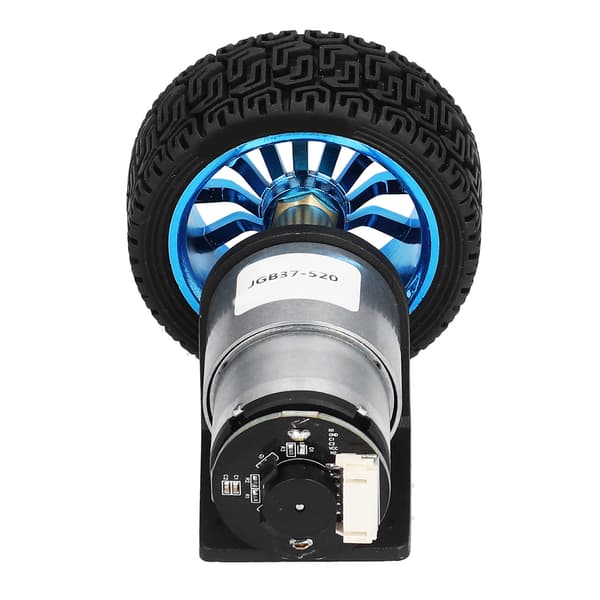

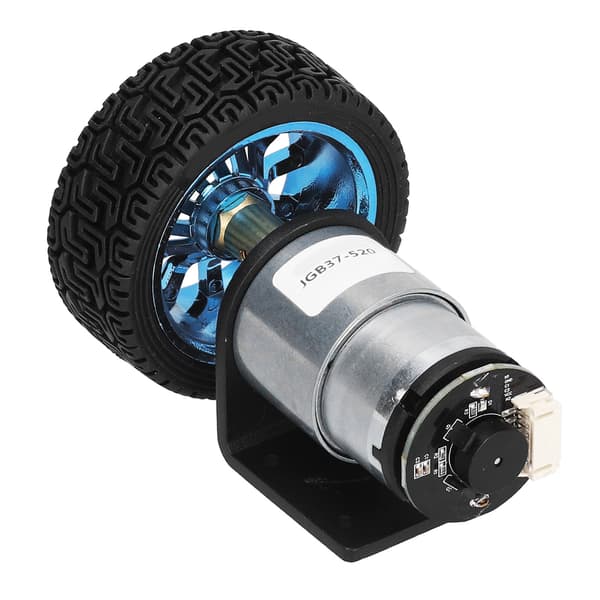

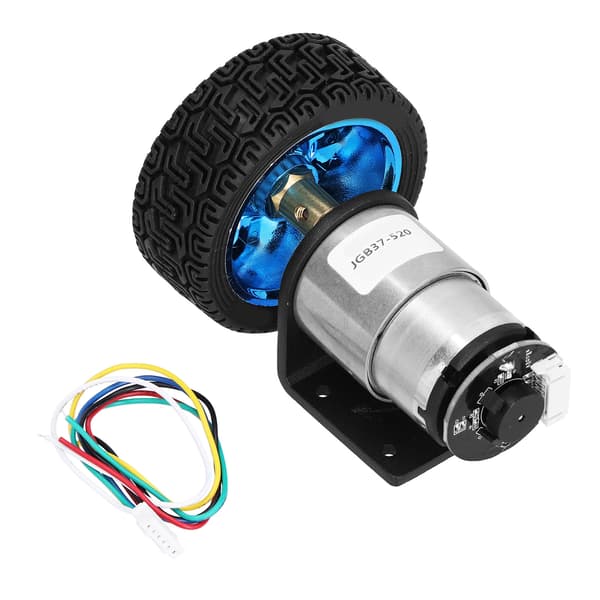

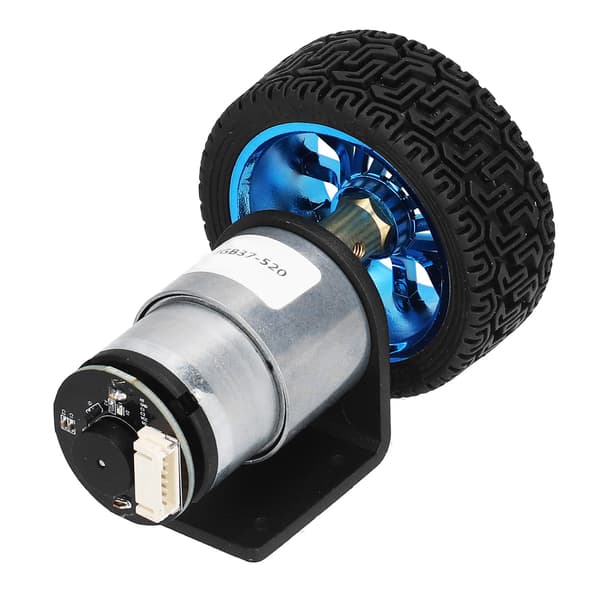

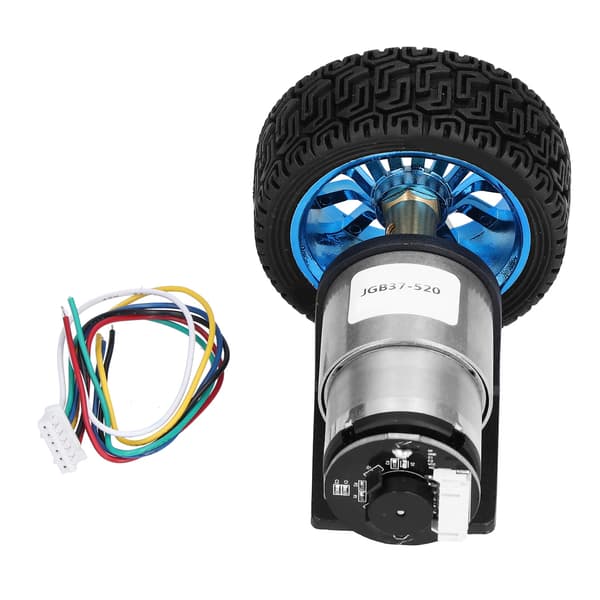

The trolley motor we offer is equipped with multi-accuracy processing, ensuring high precision and smooth operation with low noise. It has also undergone strict dynamic and static balancing tests. The motor features a high-strength magnetic tile, providing long life, strong power, and large torsion. With its fully enclosed structure, this trolley motor is compact and lightweight, saving space while delivering efficient performance. Made from pure copper materials, it has low resistance, generates low heat, and offers quiet and durable operation. This motor is perfect for various applications such as balance cars, DIY smart cars, and electric toys.
Item Type: Encoder Motor Set Model: JGB37-520 MATERIAL: Brass, copper, magnetic tiles Purpose: Balance car, DIY Smart Car Operating Voltage: DC 12V Shaft Diameter: Approx. 6mm / 0.2in (D-shaft) Shaft Length: Approx. 15.5mm / 0.6in CW CCW: Support Reduction Ratio (Change Ratio):
- 6.3 - 10 - 19 - 30 - 56 - 90 - 131 - 168 - 270 - 506 - 810 No Load Current (MA): ≤120 No Load Speed (RPM):
- 1590 - 1000 - 530 - 333 - 178 - 110 - 76 - 60 - 37 - 20 - 12 Rated Torsion (kg.cm):
- 0.7 - 1 - 2.2 - 3.5 - 6.5 - 10 - 15 - 19 - 30 - 35 - 35 Rated Speed (RPM):
- 1200 - 770 - 407 - 250 - 140 - 85 - 58 - 46 - 28 - 15 - 9 Rated Current (A): ≤1 Maximum Torsion:
- 1 - 1.6 - 3.1 - 5 - 9 - 15 - 24 - 31 - Maximum bearing 35kg Stall Current (A): 2.3 L Length (Approx.):
- 19mm/0.7in - 22mm/0.8in - 24mm/0.9in - 26.5mm/1in - 29mm/1.1in Package Includes:
- 1 x Motor - 1 x Wheel - 1 x Bracket - 1 x Connecting Cable - 1 x Coupling - 1 x Hex Wrench - 7 x Screws - 2 x Hex Screws 100% Satisfaction: Our customers are our top priority. If you find any product problems after receiving the item, such as damage and incorrect quantity of goods, please contact the seller immediately. We will do our best to provide you with satisfactory after-sales service.
