1. ACCURATE AND RELIABLE: Uses microelectronics and digital processing technology to measure electrical energy.
2. SMT TECHNOLOGY: The internal integrated circuit is manufactured with precision SMT technology, with good electromagnetic interference resistance and stable performance.
3. ACCURATE MEASUREMENT: This energy meter can measure positive active energy in electricity metering, which is clearly displayed on the backlit LCD screen.
4. Two rows of LED display: The upper row indicates a temporary energy consumption meter and can be reset. The lower row indicates the total energy consumption and cannot be reset.
5. EASY TO USE: 35mm DIN rail mounting, small size and light weight.
Features:
1. ACCURATE AND RELIABLE: Uses microelectronics and digital processing technology to measure electrical energy.
2. SMT TECHNOLOGY: The internal integrated circuit is manufactured with precision SMT technology, with good electromagnetic interference resistance and stable performance.
3. ACCURATE MEASUREMENT: This energy meter can measure positive active energy in electricity metering, which is clearly displayed on the backlit LCD screen.
4. Two rows of LED display: The upper row indicates a temporary energy consumption meter and can be reset. The lower row indicates the total energy consumption and cannot be reset.
5. EASY TO USE: 35mm DIN rail mounting, small size and light weight.
Specification:

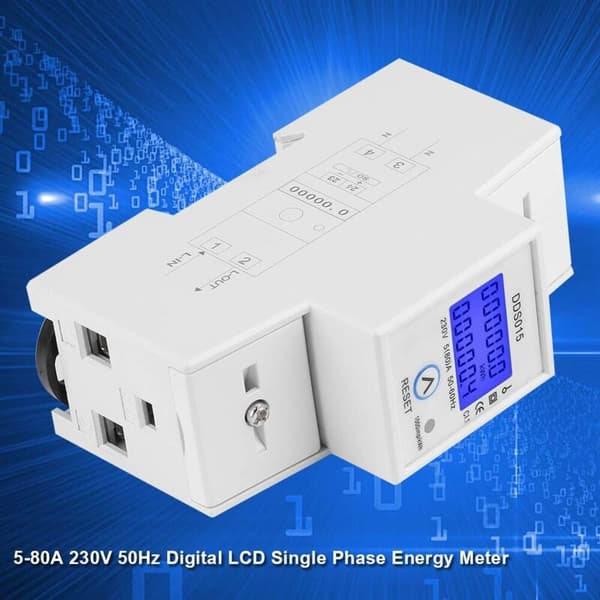

Model: DDS015
Rated voltage: 230V AC
Rated current: 5-80A
Load capacity: 0.05 lb at Imax (direct access type)
Data display: LCD display
Power indication: green light
Electrical energy pulse indication: red light (when there is a sampling signal, it lights up for about 80ms)
Mounting method: 35mm DIN rail
Working environment: -25 ~ 55 ℃, ≤95% RH
Size: 35 * 65 * 100 mm / 1.38 * 2.56 * 3.94 inches
Package weight: Approx. 158 g / 5.6 oz
Package list:
1 * Energy Meter
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow a slight error due to manual measurement. Thank you for your understanding.
