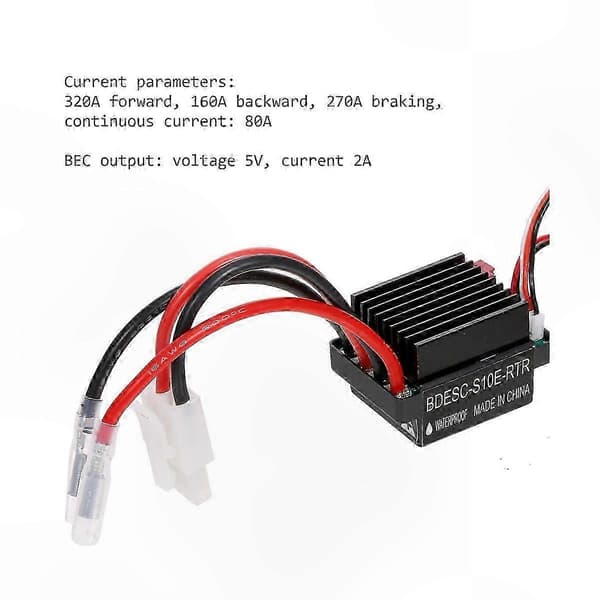

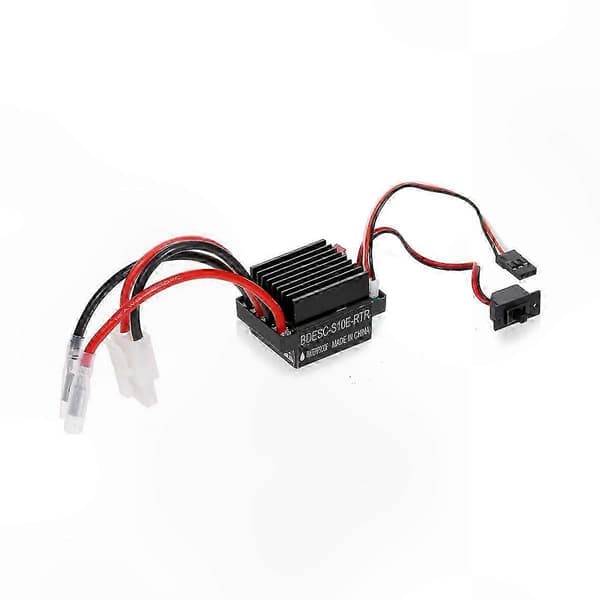

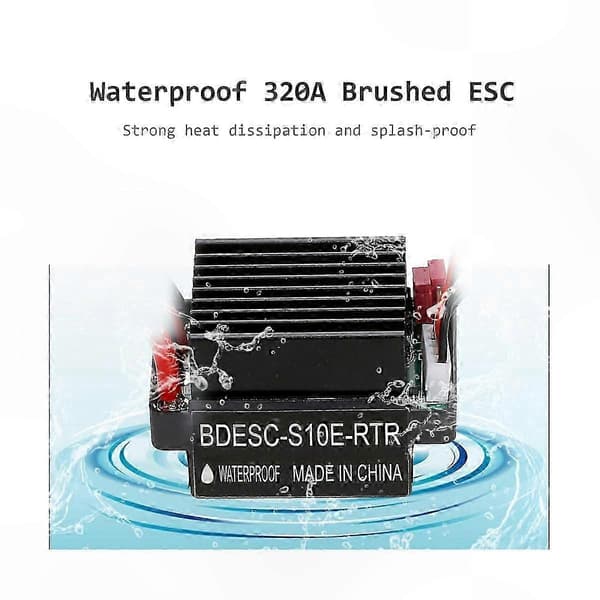

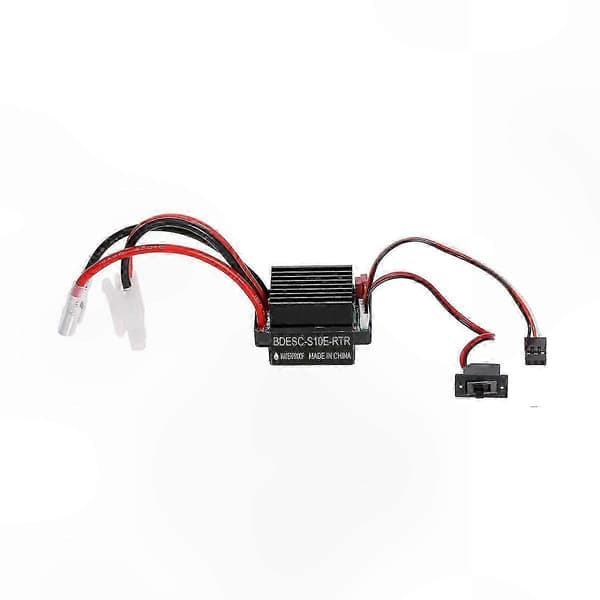

When connected to a motor, it can deliver up to 320 Amps (forward) or 160 Amps (reverse) continuous motor current. Integrated Battery Eliminator Circuit (BEC) powers the receiver from the motor battery, with automatic motor power cut-off to preserve receiver power when the battery runs low. It is compact and suitable for various types of cars. Features include reverse function, low voltage detection, and cut-off protection.
Specifications:

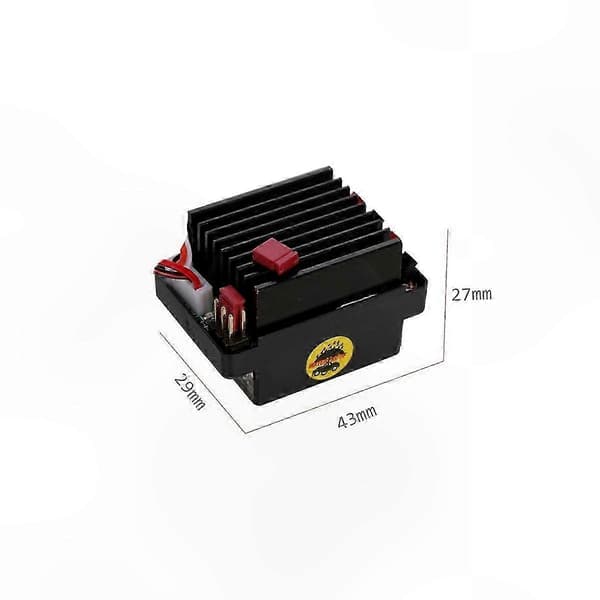

Dimensions: 43mm x 29mm x 27mm
Working Voltage: 6 - 12V
BEC Current: 5V/2A
Internal Resistance: 0.0076m ohm
Continuous Output Current: 320A (Forward), 160A (Reverse)
Wire Type: 16 AWG (Battery & Motor)
Wire Length: 85mm (Battery & Motor), 120mm (Receiver)
Input Battery Types: NiCd, NiMH, LiPo
Recommended Model: Car
Material: Composite Material
Color: Black
Package Contents:
1 x 320A ESC
Only the above package content; other items are not included.
Note: Light reflection and different displays may cause the color of the item to look slightly different from the actual product. The measurement allows an error of +/- 1-3cm.
