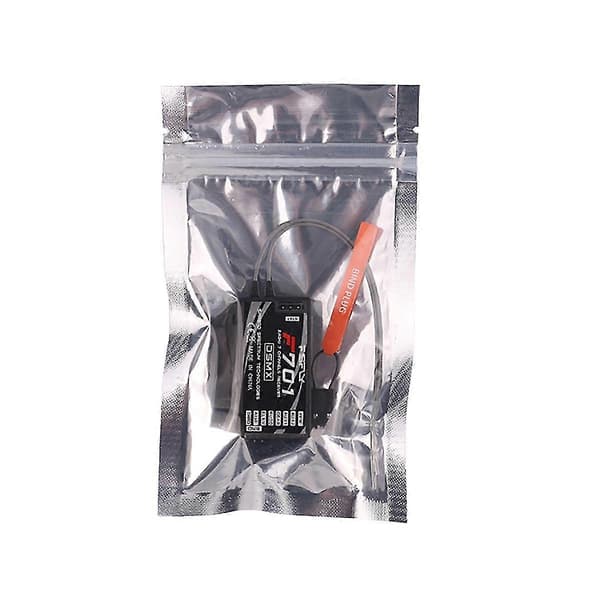

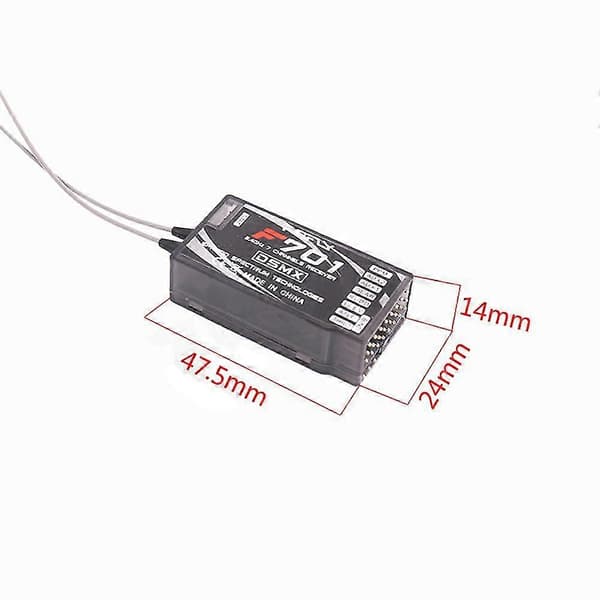

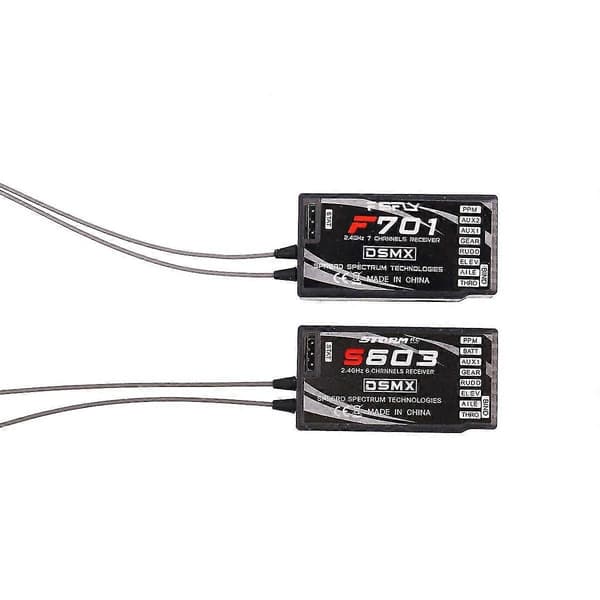

F701 7CH Channels 2.4GHz 7 Receiver For DX8 DX7 JR RC Spektrum DSMX Transmitter

Features:

FSFLY series receivers use good technology, compatible with Spektrum and JR remote control systems, including JR12X, 11X, X9503, X9303, SpektrumDX10t, DX8, DX7s, DX7se, DX6i, DX5e etc., with built-in 19db amplifier and 2db antenna, the device has good quality and stable signals even at long distances.

Separate outputs PPM

With external small satellite.

Specifications:

Modulation: DSM2/DSMX

Channel: 7CH

Operating voltage: 4.8V-8.4V

Air distance (M): 1500M + / full

Matching:

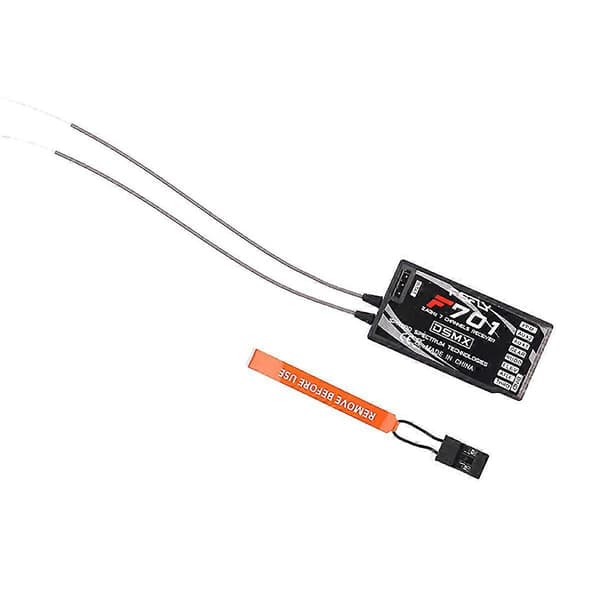

a: Insert the code strip into the BIND socket of the receiver;

b: turn on the power supply to the receiver

c: Press and hold the power button on the transmitter

d: Observe the LED on the receiver, if you see the LED flashing to Always, it means the matching was successful.

e: Take out the code strip.

Package includes:

1 x F701 Receiver
