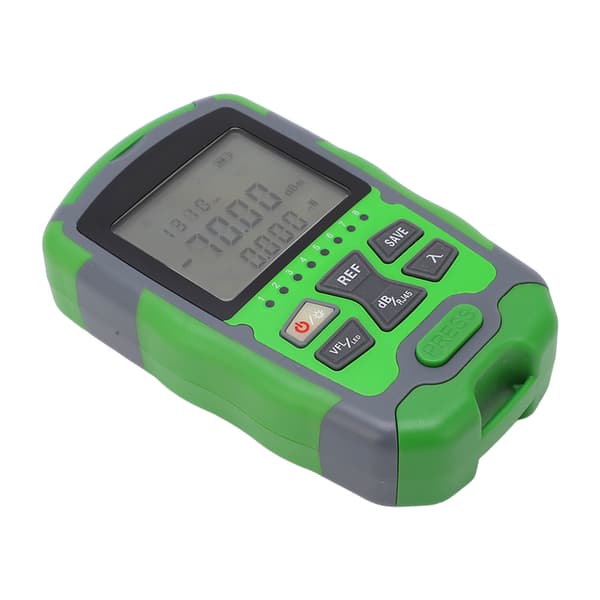

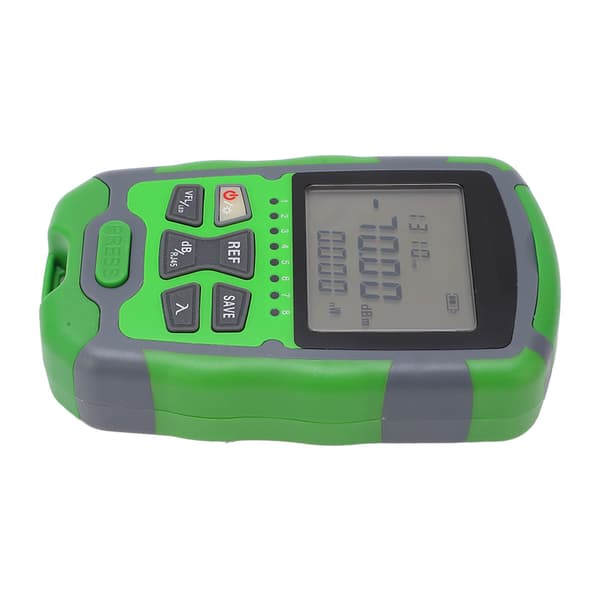

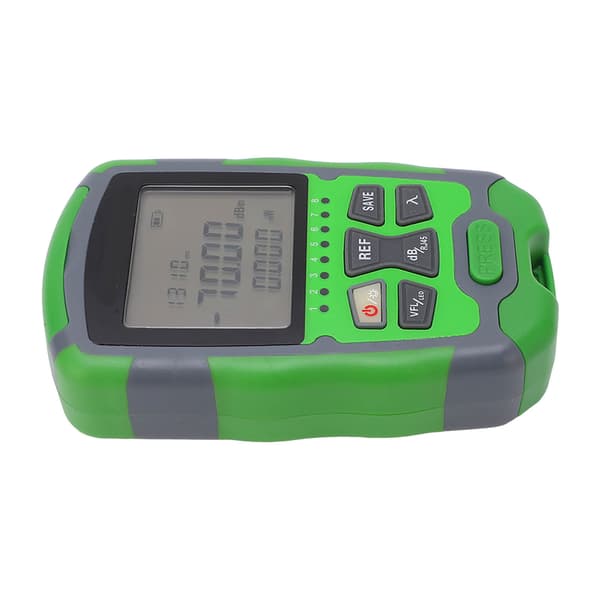

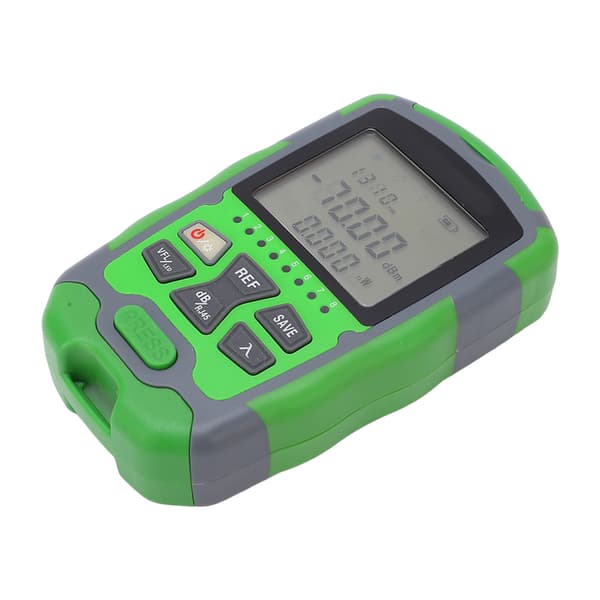

This optical fiber power meter is designed to deliver accurate and reliable performance for a wide range of fiber testing tasks. It features a wide power measurement range of -70 to +10 dBm, ensuring higher accuracy with every reading. The device includes a relative power calculation and calibration function, along with a clear digital display, making operation simple and efficient.

Supporting 10 standard wavelengths, including 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, and 1650nm, this meter is versatile for various network and communication applications. Its robust internal structure and sensitive chip enable quick response, so you can simply plug in and use without complex setup. The compact and lightweight design enhances portability, making storage and transport easy.

Item Type: Optical Fiber Power Meter

Model: AUA-MC70

Material: ABS

Power Supply: 3.7V 650mAh polymer battery, comes with built-in battery

Power Measurement Range: -70 to +10 dBm

Probe Range: InGaAs

Wavelength Range: 850-1650nm

Standard Wavelengths (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650

Display Resolution: Linear display 0.1%; Logarithmic display 0.01dBm

Working Temperature: -10 to +60°C

Storage Temperature: -25 to +70°C

Automatic Shutdown Time: 10 minutes

Battery Continuous Working Time: Not less than 40 hours

Package Includes:

1 x Optical Fiber Power Meter

1 x User Manual

1 x Lanyard

1 x USB Charging Cable
