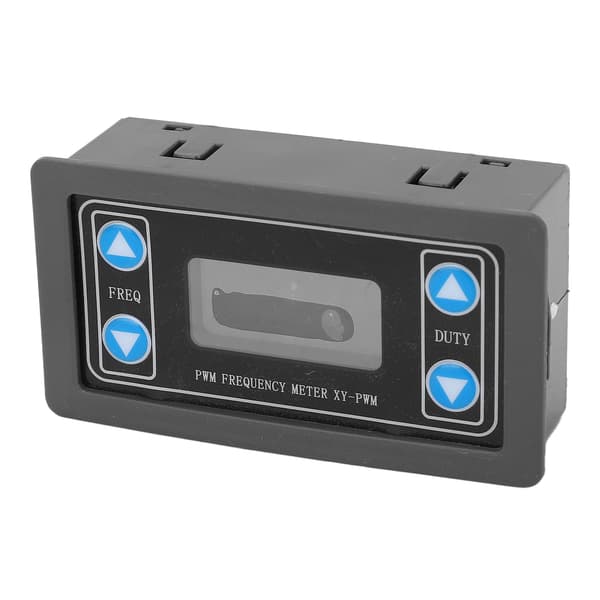

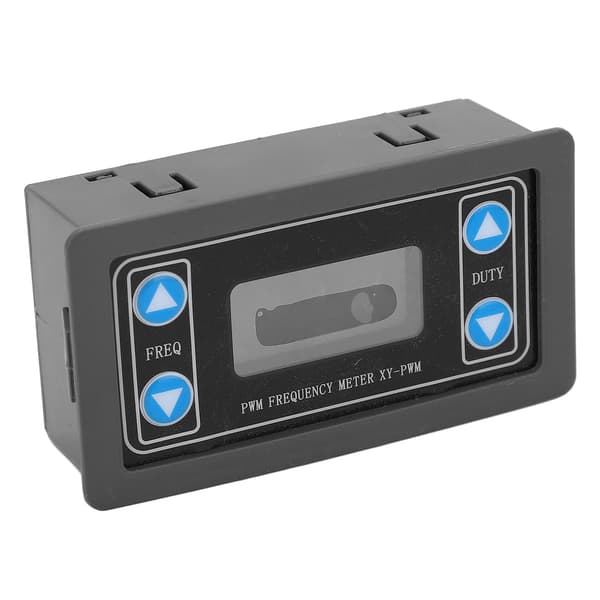

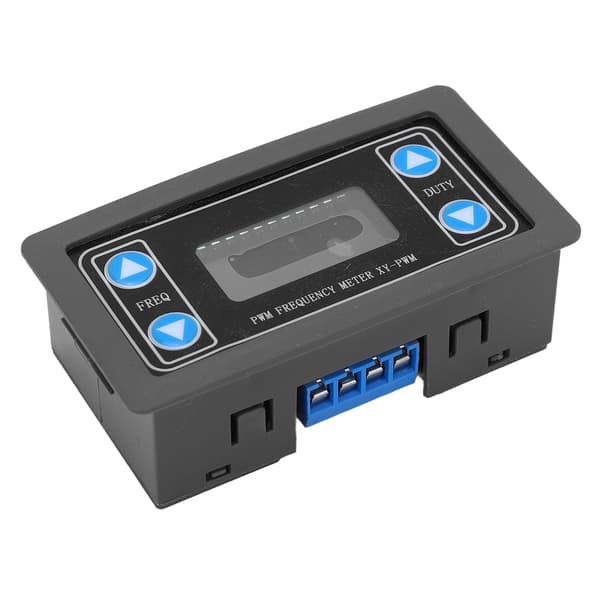

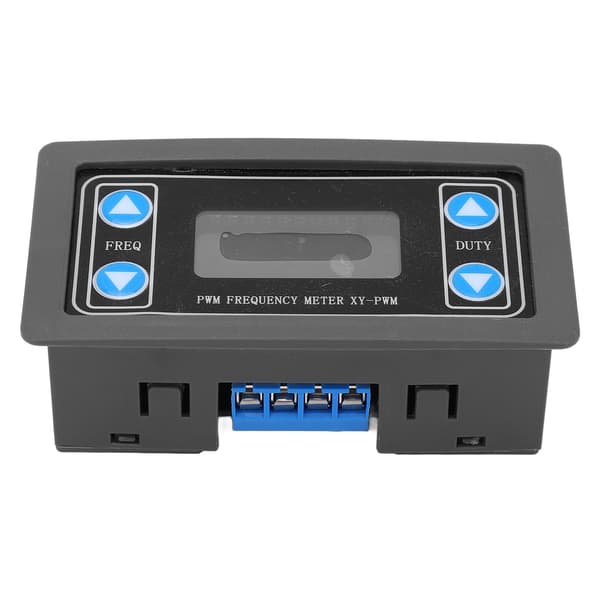

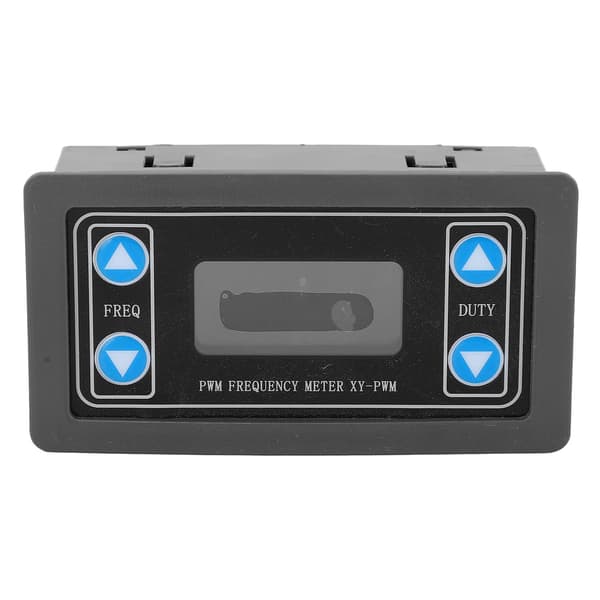

This frequency generator features a clear LCD display that shows the current mode and parameters at a glance for easy and practical use. It supports key trigger control, high and low level trigger, and switching value control, making it suitable for most applications. All parameters are automatically saved after setting, ensuring they are not lost when the device is powered off. As a signal generator, it produces electrical signals with various frequencies, square waves, pulses, and output levels. It offers two modes, PWM mode and PULSE mode, and serves as a signal source or excitation source for testing.

Product Specifications:

- Item Type: Frequency Generator

- Model: XY-PWM

- Working Voltage: DC 3.3V-30V

- Frequency Range: 1Hz~150KHz

- Frequency Accuracy: 2%

- Duty Cycle Range: 0.00% - 100.0%

- Output Current: Approximately 5-30mA

- Output Amplitude: Same as input voltage

- Working Temperature: -20℃ ~ 70℃

Package Includes:

1 x Frequency Generator
