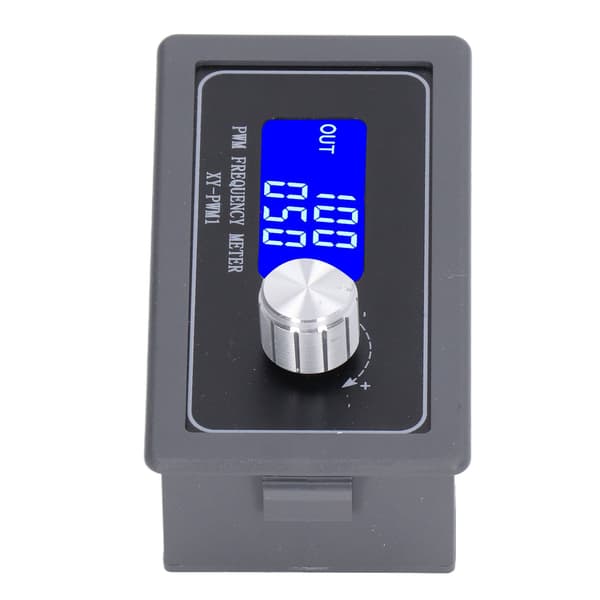

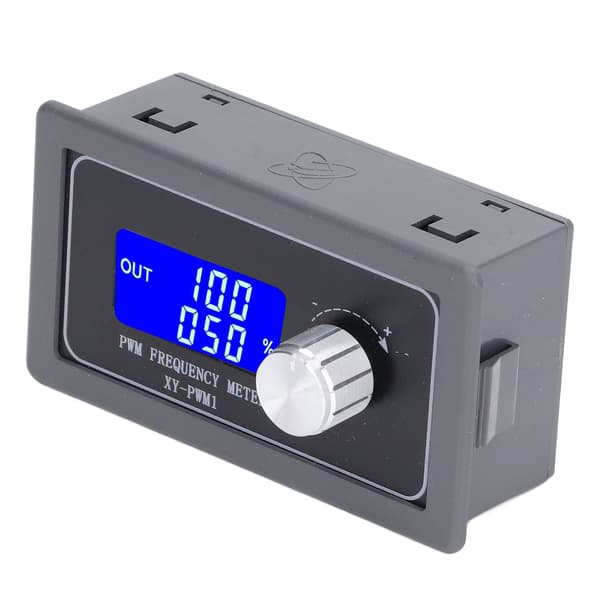

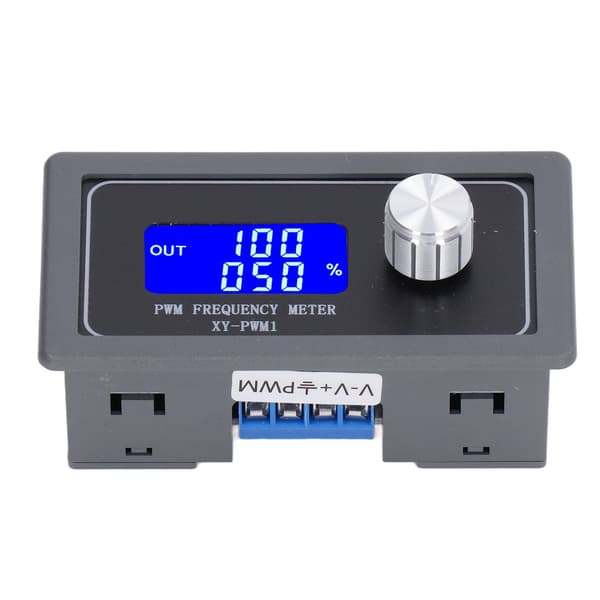

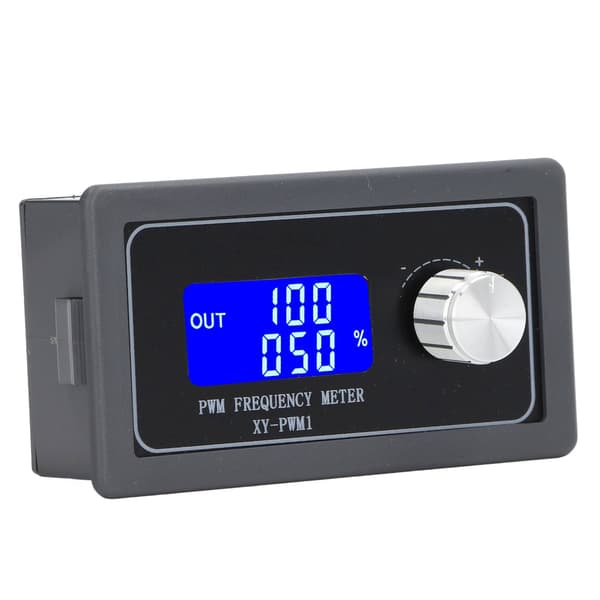

1. Excellent Control: This machine can generate square wave pulse frequency signal, enabling easy control of equipment.
2. Working Modes: Designed to have normal mode and fine mode, and the 2 working modes have different working frequency.
3. Clear Display: The LCD screen ensures clear display of the date, making operation and adjustment much more convenient.
4. Wide Use: Allows wide application in experiments, motor drive, MCU, PWM controller and so on, very useful.
5. Easy to Use: Has lock function, can also automatically save all data after setting and many other functions.
Item Type: Frequency GeneratorMaterial: PCB + ABS + LCDApplication: Square Wave Signal GeneratorModel: XY-PWM1Working Voltage: DC 3.3V-30VFrequency Range: Normal mode: 1Hz-150kHz; Fine mode: 1Hz-15kHz. Frequency Accuracy: 2% in each range. Signal Load Capacity: The output current is about 5-30mA. Output Amplitude: The PWM amplitude is equal to the input voltage value. Working Temperature: -20℃~+70℃Normal Mode Frequency Range: 1Hz-150kHzNormal Mode Duty Cycle: 00 to 100%Normal Mode Duty Cycle Stepper: 1%Fine Mode Frequency Range: 1Hz-15kHzFine Mode Duty Cycle: 00.0 - 100%Fine Mode Duty Cycle Stepper: 0.1%Application: 1. As a square wave signal generator for experimental development;2. As a motor driven square wave signal generator;3. As an adjustable pulse generator for MCU; 4. As a pulse generator, it controls related circuits (PWM dimming, speed adjustment).
1 x Frequency Generator
