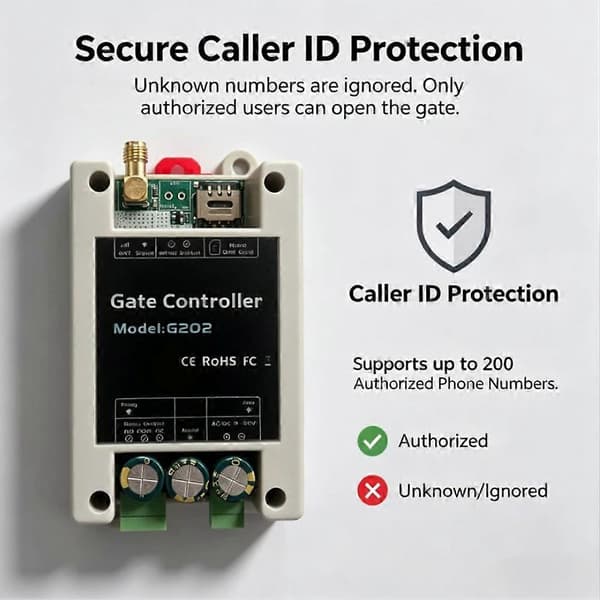

The GSM/4G Gate Opener G202 is a very simple device that can be used for authorized door access, controlling gates, switching remote equipment, parking systems. In fact, the GSM/4G Gate Opener G202 can be used in places that require you to turn ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets. Just dial from an authorized user number then the barrier and doors are opened, or the machine is turned on or off by the GSM/4G Gate Opener. There are no call costs, the GSM/4G Gate Opener rejects the call from the authorized number then carries out the ON/OFF action.
3. Technical Specifications
Rated Voltage: DC 9V~36V/1A
Working Temperature: -10℃~+60℃
Storage Temperature: -20℃~+60℃
Relative Humidity: 10-90%, no condensation
Working Frequency: 2G:850/900/1800/1900 MHz @GSM
4G:B1/B2/B3//B4/B5/B7/B8/B20/B28/B38/B40/B41/B66
Communication Protocol: GSM/4G PHASE 2/2+ (includes data service)
Related Voltage of the Output Relay: 3A/240V AC
SIM Card: Nano type, 3V
Antenna: 50 Ω SMA
Wired Switch: Supports
Dimensions: 96.5*50*31.5 mm
Net Weight: 88g
Color: Light Grey
Material: ABS

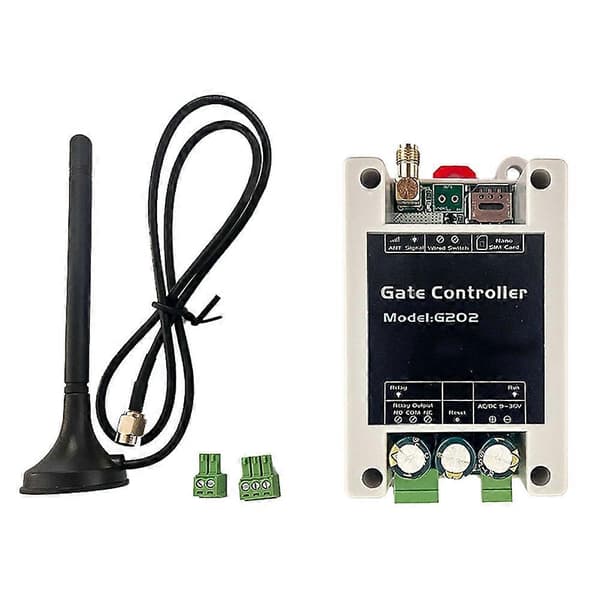

Package Contents:
1 set of GSM Access Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
