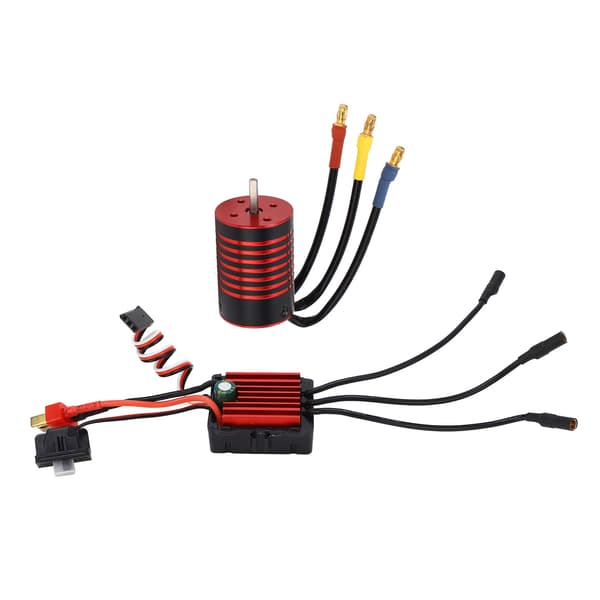

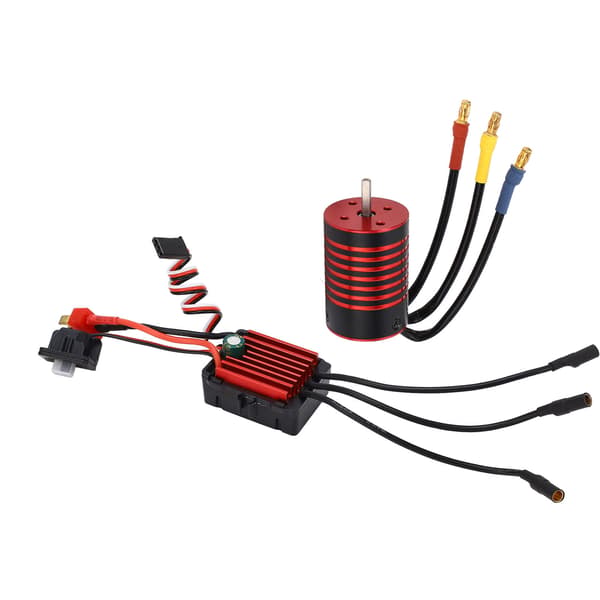

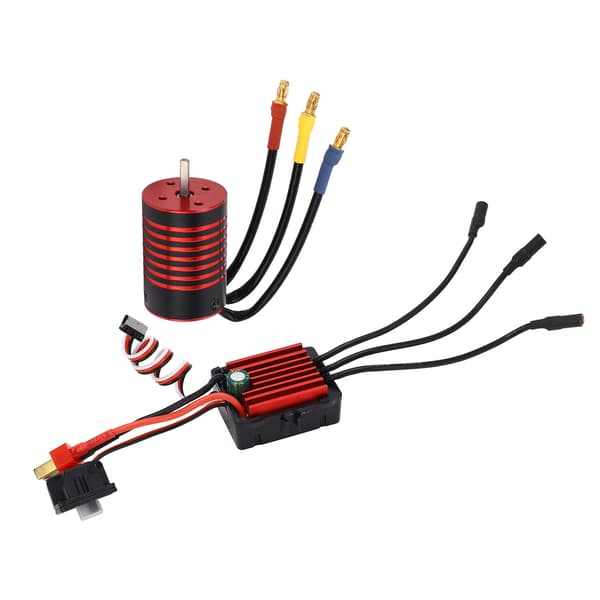

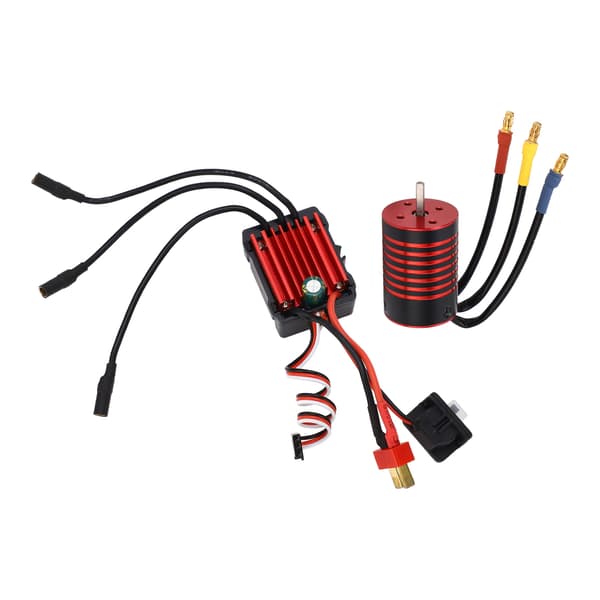

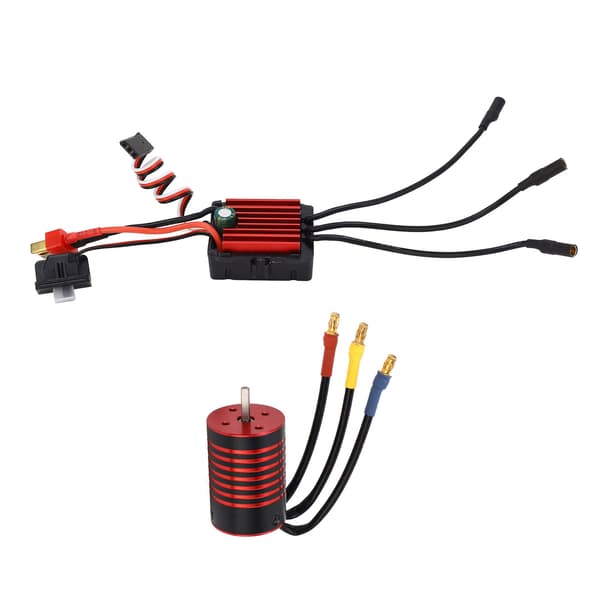

1. Suitable Models: Our RC car brushless motor ESC kit is suitable for HSP, for Traxxas and for WLtoys, for HPI and other 1/14 1/16 RC cars. 2. 4-Pole 12-Slot Motor: Our RC car brushless motor is 4-pole and 12-slot design, and has strong torsion and stable output power. 3. Multiple Protection Functions for ESC: The electronic speed controller for RC has low voltage cut-off protection, overheating protection, throttle signal loss protection. 4. Stainless Steel Shaft: RC car brushless motor has high purity temperature resistant copper coil, with stainless steel shaft, high precision bearing. 5. Aluminum Front Rear Cover: RC car brushless motor has CNC machined aluminum front and rear cover, which effectively provides high efficiency.

Item Type: Brushless Motor Kit
Motor Parameters
Motor Size (without cable, shaft): Approx. 28 x 40 mm / 1.1 x 1.6 in
Power: 600
Maximum Speed: 50000
Maximum Voltage: <9V
Maximum Amperage: 68A
Rotor Poles: 4
Shaft Diameter: Approx. 3.175 mm / 0.13 in
Shaft Length: Approx. 15 mm / 0.59 in
Connector: 3.5 mm (0.14 in) gold head, male
ESC Parameters
Housing Material: Aluminum, plastic
Color: Red, black
Size (without cable): 40 x 32 x 15 mm / 1.6 x 1.3 x 0.6 in
Continuous Current: 35A
Peak Current: 120A
Applicable Battery Voltage: 2-3S Lipo or 4-9 cells NiMH
BCE Output: 5V 2A (analog mode)
Suitable: For HSP and for Traxxas and for WLtoys and for HPI and other 1/14 1/16 RC cars

1 x Motor

1 x ESC

1 x User Manual
