1. Good quartz movement will work well, simple design, easy to use, energy efficient, accurate timekeeping. Great for repairing, replacing or making a clock.
2. Long spindle clock: good handmade DIY clock replacement parts with metal hook, meeting your installation needs
3. This kit is a good replacement in size both in terms of the shaft and the size of the hands. It can be a replacement for your broken clock.
4. Wide application: You can use it to repair, replace or make a home clock; Suitable for cross stitch, three-dimensional embroidery, craft home clock, frameless draw clock, movement, etc. Perfect DIY clock kit, and especially suitable for DIY quartz wall clock replacement parts, etc.
5. Quality: the movement shell is made of high-quality material which is sturdy and durable for a long time, and the clock hands are made of quality wood, which is lightweight and corrosion-resistant to give you pleasant use and decorative effect
Instructions:
1. Attach the movement to the product to be installed.
2. Installed according to the 12-point standard, when installing it, make sure the hour hand and minute hand are parallel
3. Pull out the positioning pin from the back of the movement and insert the battery.
(Do not insert the battery and then pull out the locking pin.)
Note: Refer to the hand installation diagram for the hand installation method. When the three pins are installed, the three pins should be parallel when viewed from the side, and it is better not to touch the pins.
Type: Long shaft clock movements
Function type: High torque clock movement
Rated voltage: 1.5V
Battery life (specification): Approx. 12 months (UM-3)
Use battery: One 1.5V AA carbon battery (not included)

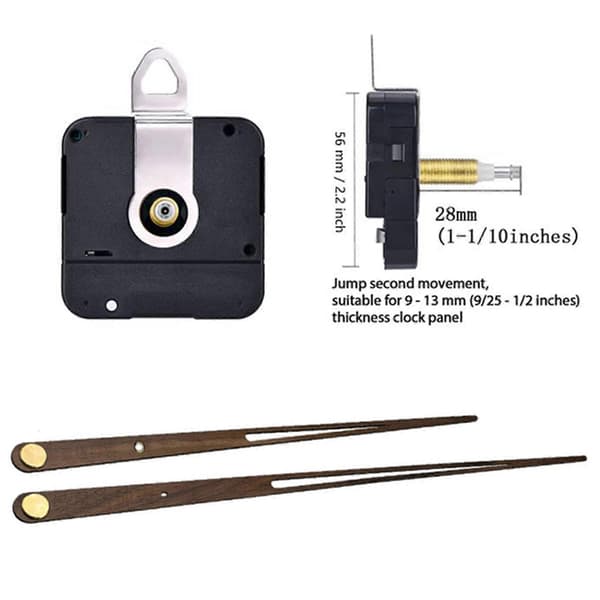

Movement specification: 56 x 56 x 16 mm
Clock hand specifications: hour and minute 223, 285 mm (from the center of the circle), thickness 3 mm
Suitable panel diameter: 60-70 cm
Color: As shown
Material: Plastic + walnut
Size:
The total shaft length is 28 mm, thread: 15 mm, which is suitable for clock panels with a thickness of 8-12 mm

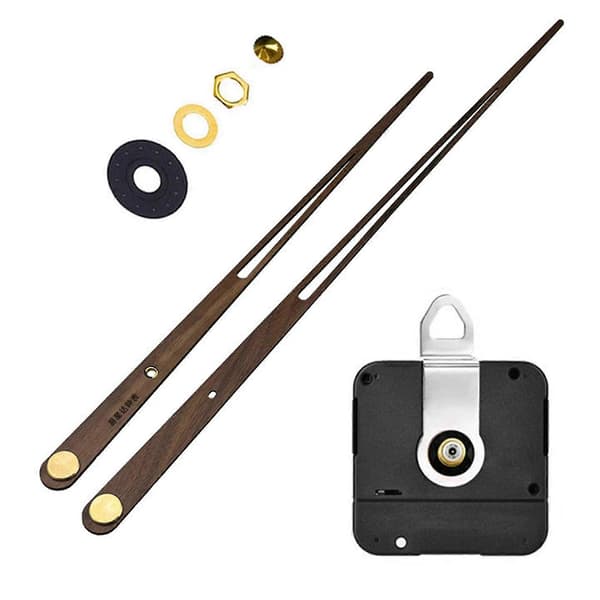

Package contents:
1 x Quartz movement
2 x Clock hands
1 set x Accessories
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture to differ slightly from the real thing. The allowed measurement error is +/- 1-3 cm.
