Brand new and high quality

Material: Plastic

Color: See pictures

Small size

Easy to install

High-performance switching

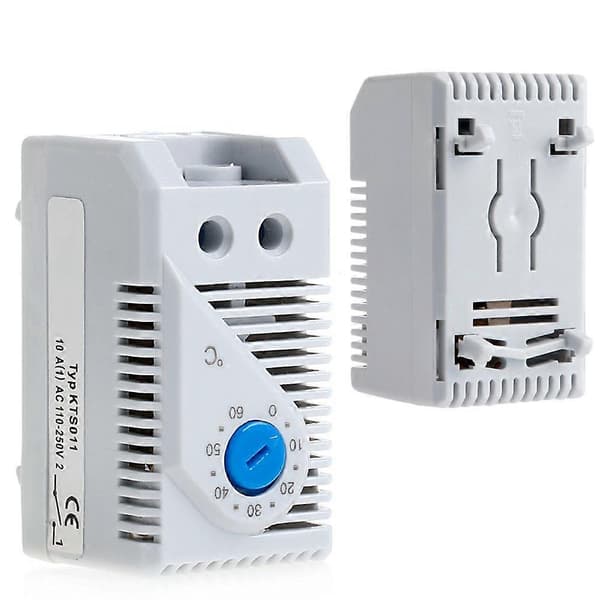

KTS 011: thermostat (normally open); Manufacturer of contact for regulating fans with filters and heat exchangers or

for changing the signal designed when the temperature limit has been exceeded.

Temperature difference switch: 7 K (4 K tolerance)

Sensor element: thermostatic bimetal

Contact type: Snap action

Lifespan: > 100,000 cycles

Max. Switching capacity

Setting range: 0 - 60

250VAC, 10 (2) A

120VAC, 15 (2) A

for DC 30 W

Connection: Two-pole terminal, Nm maximum tightening torque:. Hard wire 2.5 mm 2; Flexible wire (with lugs) mm 2;

Mounting: 35 mm DIN rail, EN60715 (or for EF series 118 output filters)

Housing: Plastic according to UL94 V-0, light gray

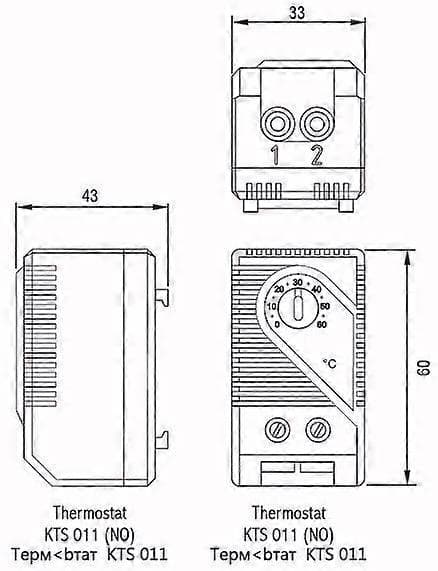

Dimensions: 60x33x43mm

Mounting position: Variable

Operating / Storage temperature: -45 to + 80 C (-49 to + 176 F)

Operating humidity / Storage Max. 90% RH (non-condensing)

Protection type: IP20

Size: See picture

Quantity: 1 pc

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!

Package includes:

1 pc x KTS 011 Mini Automatic Temperature Switch Controller Connect Thermostat Control
